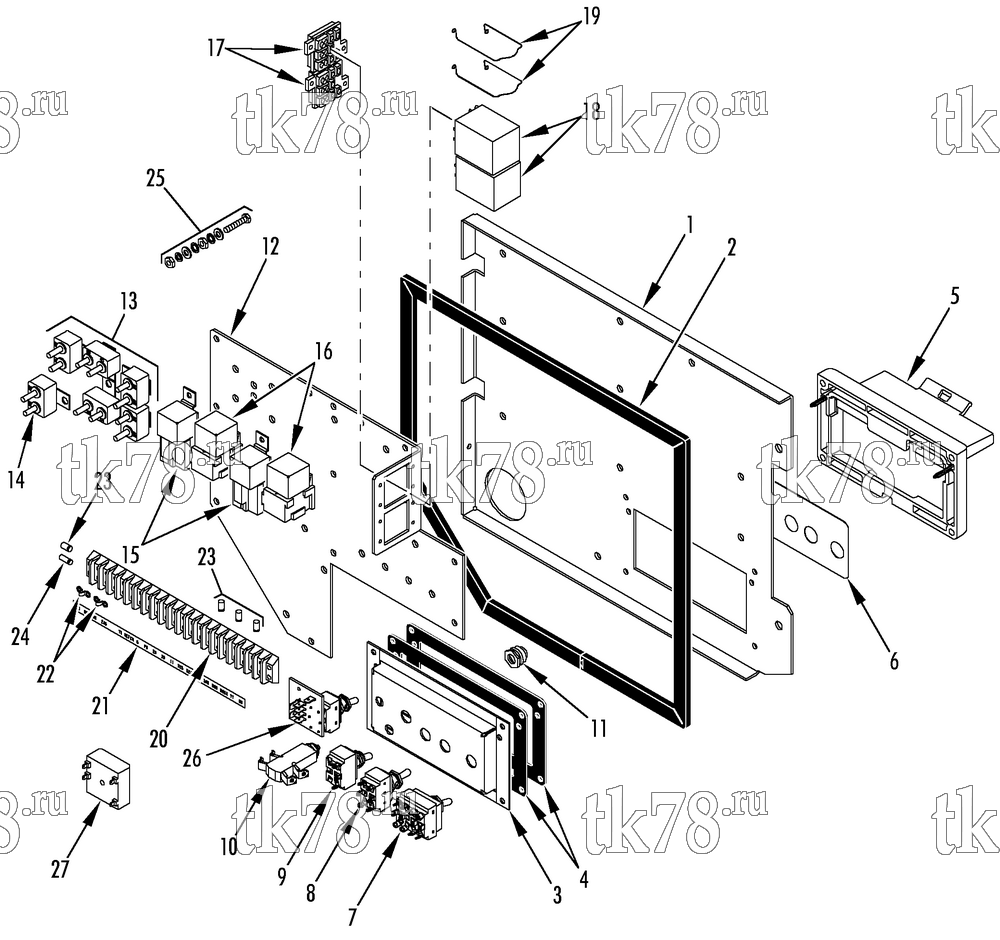

Установкa Thermo King MD-200 MT схема CONTROL BOX COVER – 197B4
Обновление от: 8/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4295 | COVER - control box | 1 | |
| 2 | 33-3853 | GASKET - cover | 1 | |
| 3 | 92-4296 | PANEL - switch | 1 | |
| 55-2991 | SCREW - panel & bezel | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 4 | 33-4024 | GASKET- panel & bezel | 2 | |
| 5 | 91-7926 | BEZEL - switch | 1 | |
| 99-5635 | SPRING - bezel | 1 | ||
| 6 | 92-4297 | NAMEPLATE - switch panel (30) | 1 | |
| 92-4309 | NAMEPLATE - switch panel (50) | 1 | ||
| 7 | 44-709 | SWITCH - one temp/two temp | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 8 | 44-7595 | SWITCH - preheat/start | 1 | |
| 9 | 44-1936 | SWITCH - on/off | 1 | |
| 10 | 44-7774 | BREAKER - circuit (engine reset) | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 11 | 44-8688 | BOOT - circuit breaker | 1 | |
| 12 | 92-4298 | TRAY - relay | 1 | |
| 55-6743 | INSERT (8-32, ss) | 2 | ||
| 55-5206 | INSERT (10-32, ss) | 17 | ||
| 55-3025 | SCREW - tray | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 13 | 44-5512 | BREAKER - circuit (30 amp) | 5 | |
|
10-44-5512 | Автоматический выключатель, 30A | 2 260 ₽ |
|
| 14 | 44-7996 | BREAKER - circuit (50 amp) | 1 | |
|
30-44-7996 | Предохранитель 50А | 1 140 ₽ |
|
| 55-3015 | SCREW - circuit breaker | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 55-2964 | LOCKWASHER | 6 | ||
| 15 | 41-478 | RELAY - fan & rear fan | 2 | |
| 41-1325 | SOCKET - relay | 2 | ||
| 16 | 41-895 | RELAY - fan enable & rear fan enable | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 44-5537 | SOCKET - relay | 2 | ||
| 55-3015 | SCREW - relay | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 17 | 44-3184 | SOCKET - relay | 2 | |
| 55-2270 | RIVET - socket | 2 | ||
| 18 | 44-3186 | RELAY - plug-in (defrost & pressure relief) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 19 | 99-2027 | SPRING - relay holddown | 2 | |
| 55-2771 | CLAMP - relay | 2 | ||
| 20 | 44-5335 | BOARD - terminal (20 position) | 1 | |
| 55-3511 | SCREW - board | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 21 | 91-9313 | STRIP - mark | 1 | |
| 22 | 44-3579 | STRIP - jumper | 2 | |
| 23 | 44-5763 | DIODE | 4 | |
| 24 | 44-9189 | CAPACITOR (4.7MFD) | 1 | |
| 25 | 55-3000 | SCREW - ground | 4 | |
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 8 | ||
| 55-2965 | NUT | 8 | ||
| 26 | 44-8464 | SWITCH - Cycle Sentry | 1 | |
| 44-8866 | SWITCH | 1 | ||
| 44-8865 | DIODE - green | 1 | ||
| 91-2532 | SPACER - LED | 1 | ||
| 44-7272 | RESISTOR | 1 | ||
| 27 | 44-8162 | TIMER - heat initiation | 1 |
