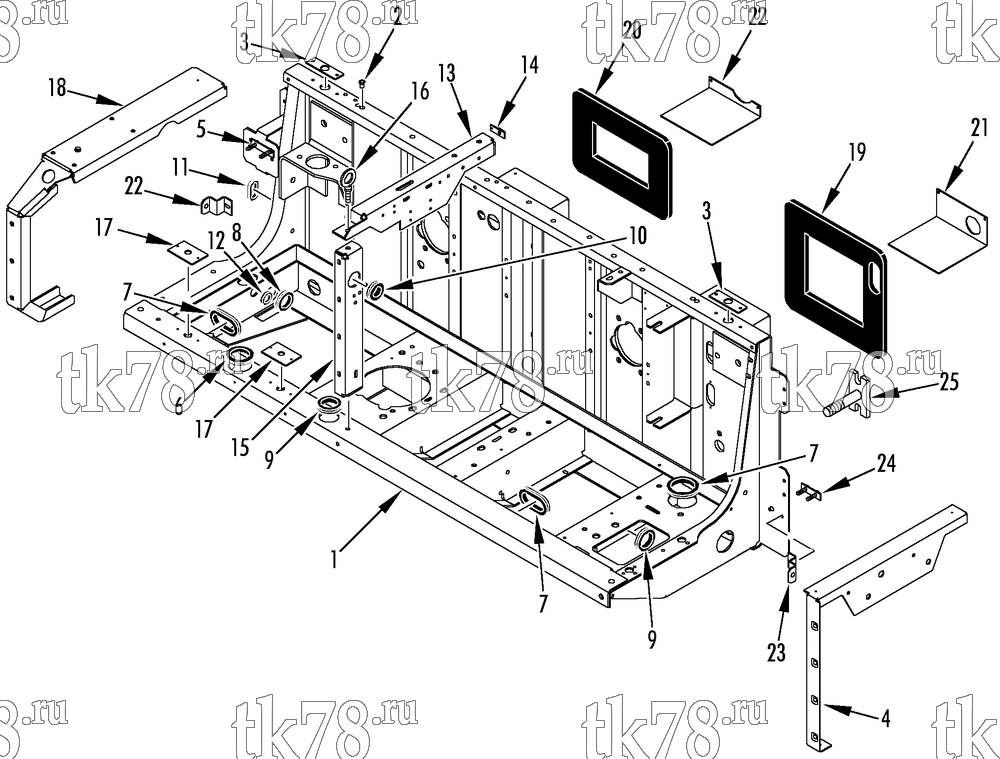

Установкa Thermo King MD-200 MT схема STRUCTURAL COMPONENTS - CONDENSER – 197B2
Обновление от: 7/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6816 | FRAME - condenser (MD-200 MT) | 1 | |
| 99-2513 | SPACER - gasket sill | 2 | ||
| 2 | 55-8798 | INSERT - threaded (10-34, brass) | 2 | |
| 55-8711 | INSERT - threaded (1/4-20, brass) | 20 | ||
| 3 | 91-4719 | STRIP - unit lifting reinforce | 2 | |
| 55-3136 | RIVET - blind | 4 | ||
| 4 | 92-2981 | SUPPORT - control box (horizontal) | 1 | |
| 55-2977 | SCREW - support | 2 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 5 | 92-3023 | BOLTSTRIP - fuel line clamp | 1 | |
| 6 | 33-1371 | GROMMET (1.70 id, 0.125 groove) | 2 | |
| 7 | 33-623 | GROMMET (2.12 id, 3/16 groove) | 3 | |
| 8 | 33-489 | GROMMET (1.25 id, 0.125 groove) | 2 | |
| 9 | 33-1770 | GROMMET (1.50 id, 0.125 groove) | 2 | |
| 10 | 33-629 | GROMMET (1.00 id, 0.125 groove) | 1 | |
| 11 | 33-316 | GROMMET (1.00 id, 3/16 groove) | 1 | |
| 12 | 33-572 | GROMMET (0.75 id, 0.125 groove) | 1 | |
| 13 | 91-7764 | MEMBER - support (center top) | 1 | |
| 14 | 91-5911 | NUTSTRIP | 1 | |
| 55-3035 | RIVET - nutstrip | 1 | ||
| 55-2977 | SCREW - member | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 15 | 92-2980 | MEMBER - condenser coil (center, vertical) | 1 | |
| 55-2977 | SCREW - member | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-3059 | NUT - captive | 1 | ||
| 16 | 55-6532 | BOLT - eye | 1 | |
| 55-2641 | FLATWASHER | 10 | ||
| 55-4955 | NUT | 1 | ||
| 17 | 99-9449 | MOUNT - wear plate | 2 | |
| 55-3044 | RIVET - mount | 4 | ||
| 18 | 92-2982 | BRACKET - fuel filter | 1 | |
| 55-2977 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 19 | 33-3589 | GASKET - sill (roadside) | 1 | |
| 22 | 33-3590 | GASKET - sill (curbside) | 1 | |
| 21 | 92-2043 | COVER - bracket (roadside) | 1 | |
| 22 | 92-2044 | COVER - bracket (curbside) | 1 | |
| 23 | 92-2983 | BRACKET - door | 2 | |
| 24 | 92-1105 | BOLTSTRIP | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 25 | 99-214 | BOLT - unit to trailer | 4 | |
| 55-5234 | FLATWASHER | 4 | ||
| 55-3686 | NUT | 4 |
