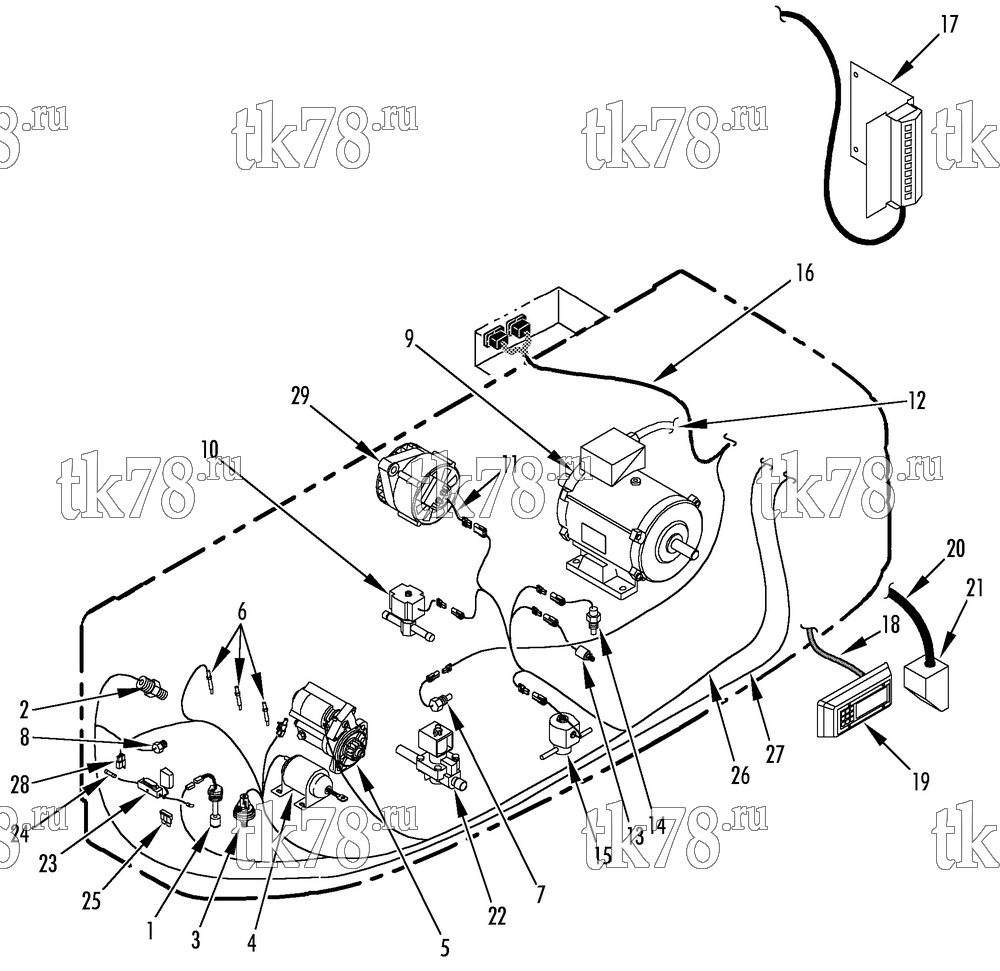

Установкa Thermo King MD-200 MT схема ELECTRICAL COMPONENTS – 192D9
Обновление от: 10/11/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4470 | SWITCH - oil level | 1 | |
|
41-4470 OEM | Датчик уровня масла, резьбовой | 12 990 ₽ |
|
|
10-41-4470 | Датчик уровня масла, резьбовой | 4 830 ₽ |
|
| 2 | 44-9298 | SENSOR - rpm | 1 | |
|
10-44-9298 | Датчик оборотов двигателя | 14 400 ₽ |
|
|
PP-44-9298 | Датчик оборотов двигателя | 3 310 ₽ |
|
| 3 | 41-6865 | SWITCH - oil pressure (see 187B5) | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 4 | 44-9181 | SOLENOID - fuel (see 109G2) | 1 | |
|
10-44-9181 | Соленоид оборотов двигателя | 22 340 ₽ |
|
| 10-41-1566 | Соленоид оборотов двигателя в сборе | 19 600 ₽ |
|
|
|
PP-44-9181 | Соленоид оборотов двигателя в сборе | 6 870 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 5 | 45-1718 | STARTER (see 132A8) | 1 | |
|
10-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 12 860 ₽ |
|
| PP-45-1718 | Стартер, Yanmar 366 / 374 / 388 / 395 | 9 620 ₽ |
|
|
| 45-2326 | STARTER (standard life plus) | 1 | ||
| 6 | 41-6582 | GLOW PLUG | 3 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| 44-7129 | CONNECTOR - glow plug | 1 | ||
| 7 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 8 | 44-8400 | BOLT - preheat thermistor | 1 | |
|
10-44-8400 | Термистор | 7 150 ₽ |
|
| 55-5411 | LOCKWASHER | 1 | ||
| 55-4625 | FLATWASHER | 1 | ||
| 9 | 104-713 | MOTOR - condenser | 1 | |
| 55-5257 | CONNECTOR - liquid tite | 1 | ||
| 41-1105 | SLEEVE - crimp | 4 | ||
| 44-6646 | CAP - sleeve | 4 | ||
| 10 | 66-5306 | VALVE - solenoid (see 138A6) | 1 | |
| 11 | 44-9107 | HARNESS - alternator | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin) | 1 | ||
| 12 | 41-6313 | CABLE - motor | 1 | |
| 13 | 41-3846 | SWITCH - hpco (470 psi) | 1 | |
| 14 | 44-8199 | SWITCH - hpco (200 psi) | 1 | |
| 55-665 | TEE | 1 | ||
| 55-1653 | ELBOW | 1 | ||
| 15 | 66-6384 | VALVE - solenoid (see 116G10) | 1 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 16 | 41-4946 | HARNESS - evaporator | 1 | |
| 44-9089 | RECEPTACLE - 24-pin | 2 | ||
| 17 | 40-709 | BOX - remote light (optional, see 136G2) | 1 | |
| 18 | 41-5166 | HARNESS - remote cab box (see 133C13) | 1 | |
| 19 | 41-3310 | BOX - cab remote (see 136G7) | 1 | |
| 20 | 41-3675 | HARNESS - power | 1 | |
| 21 | NSS | BOX - power receptacle (TSA, see 124G14) | 1 | |
| NSS | BOX - power receptacle (EMEIA, see 173A8) | 1 | ||
| 22 | 66-8556 | SOLENOID - condenser inlet (see 192D0) | 1 | |
| 23 | 41-3665 | FUSE HOLDER | 1 | |
| 41-3922 | TERMINAL (3/8) | 1 | ||
| 24 | 41-3408 | TERMINAL - splice | 1 | |
| 25 | 41-3666 | FUSE (60 amp) | 1 | |
| 26 | 41-3923 | HARNESS - main | 1 | |
| 44-2793 | TERMINAL - ring (1/4, yellow) | 4 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 3 | ||
| 44-2790 | TERMINAL - ring (blue 5/16, 14-16 ga) | 1 | ||
| 44-2792 | TERMINAL - ring (#10, yellow) | 3 | ||
| 27 | 44-8475 | HARNESS - auto start | 1 | |
| 28 | 41-3069 | RECEPTACLE (1-pin) | 1 | |
| 29 | 41-2196 | ALTERNATOR (see 77B12) | 1 | |
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
