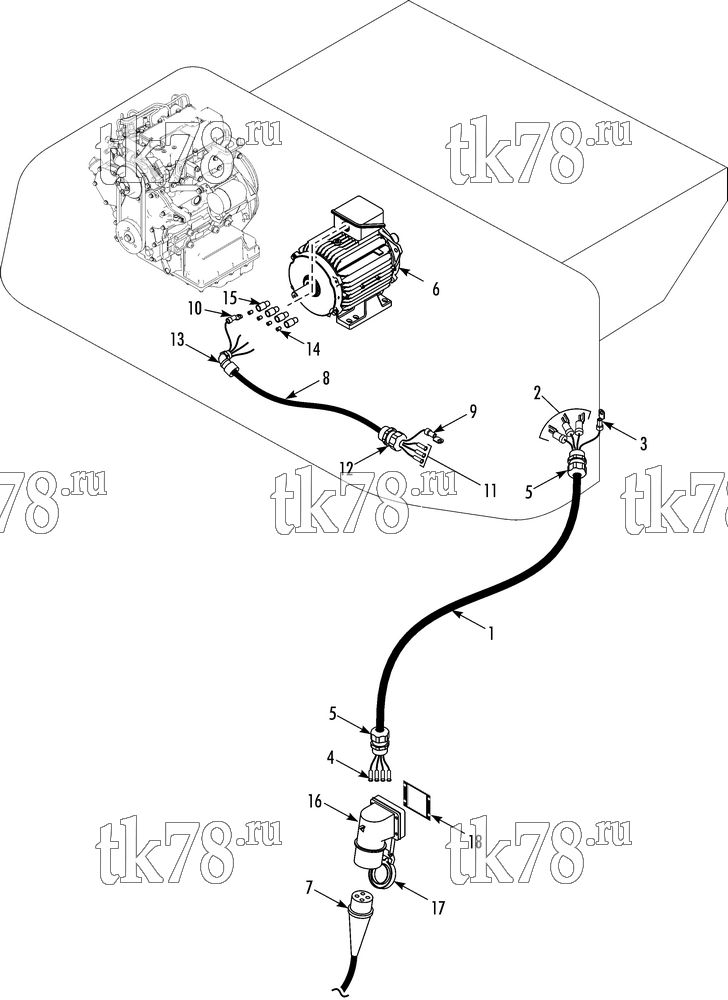

Установкa Thermo King MD-100 w/TK 3.74 Engine схема POWER RECEPTACLE & MOTOR HARNESS EMEIA – 244C6
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8745 | HARNESS - power (EMEIA) | 1 | |
| 2 | 41-4407 | TERMINAL - fork (#8 yellow) | 3 | |
| 3 | 44-2792 | TERMINAL - ring (#8 yellow) | 1 | |
| 4 | 44-9891 | TERMINAL - pin (10 ga) | 4 | |
| 5 | 51-1852 | CONNECTOR - harness grip | 2 | |
| 55-2636 | NUT - lock | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 6 | 104-774 | MOTOR (220-230-380-460/3/5060, see 191C6) | 1 | |
| 7 | 41-782 | PLUG - power (220-230/3/50-60, mates w/ 41-4666) | 1 | |
| 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | ||
| 44-6685 | PLUG - power (400/3/50, 3 pole + E, mates with 44-6875) | 1 | ||
| 8 | 41-1953 | HARNESS - motor | 1 | |
| 9 | 44-2792 | TERMINAL - ring (#8 yellow) | 1 | |
| 10 | 44-2793 | TERMINAL - ring (1/4 yellow) | 1 | |
| 11 | 44-9891 | TERMINAL - pin (10 ga) | 3 | |
| 12 | 51-1852 | CONNECTOR - harness grip | 1 | |
| 13 | 51-1853 | CONNECTOR - harness grip (90 degree) | 1 | |
| 55-2636 | NUT - lock | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 14 | 41-1105 | SLEEVE - crimp | A/R | |
| 15 | 44-6646 | CAP - sleeve | A/R | |
| 16 | 41-8746 | RECEPTACLE - power (230/3/50, EMEIA) | 1 | |
| 41-520 | PLUG - power (380/3/50, mates w/ 41-519) | 1 | ||
| 41-8762 | RECEPTACLE - power (400/3/50, EMEIA) | 1 | ||
| 44-6875 | RECEPTACLE - power (400/3/50, 3 pole + E) | 1 | ||
| 17 | 99-9052 | COVER - receptacle | 1 | |
| 18 | 33-1697 | GASKET - receptacle | 2 |
