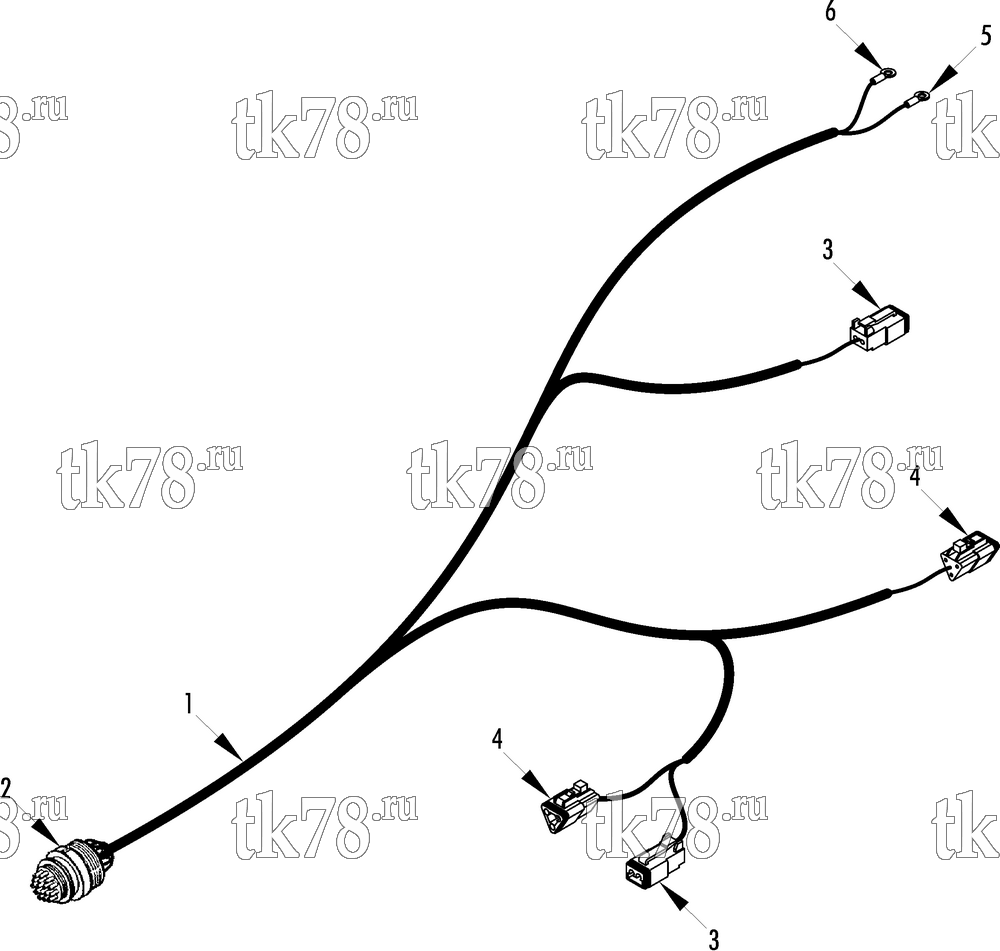

Установкa Thermo King MD-100 w/TK 3.74 Engine схема HARNESS SENSOR – 242A9
Обновление от: 1/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-1935 | HARNESS - sensor | 1 | |
| 2 | 41-744 | PLUG - circular (19-pin) | 1 | |
| 44-9928 | PIN (14-18 ga) | 10 | ||
| 3 | 44-9585 | PLUG (2-pin, see 112D9) | 2 | |
| 44-9586 | WEDGE | 2 | ||
| 4 | 44-9631 | PLUG (3-pin, see 112D9) | 2 | |
| 44-9536 | WEDGE | 2 | ||
| 5 | 651-295 | TERMINAL - ring (#6 blue, 14-16 ga) | 1 | |
| 6 | 44-2791 | TERMINAL - ring (#10 blue, 14-16 ga) | 1 |
