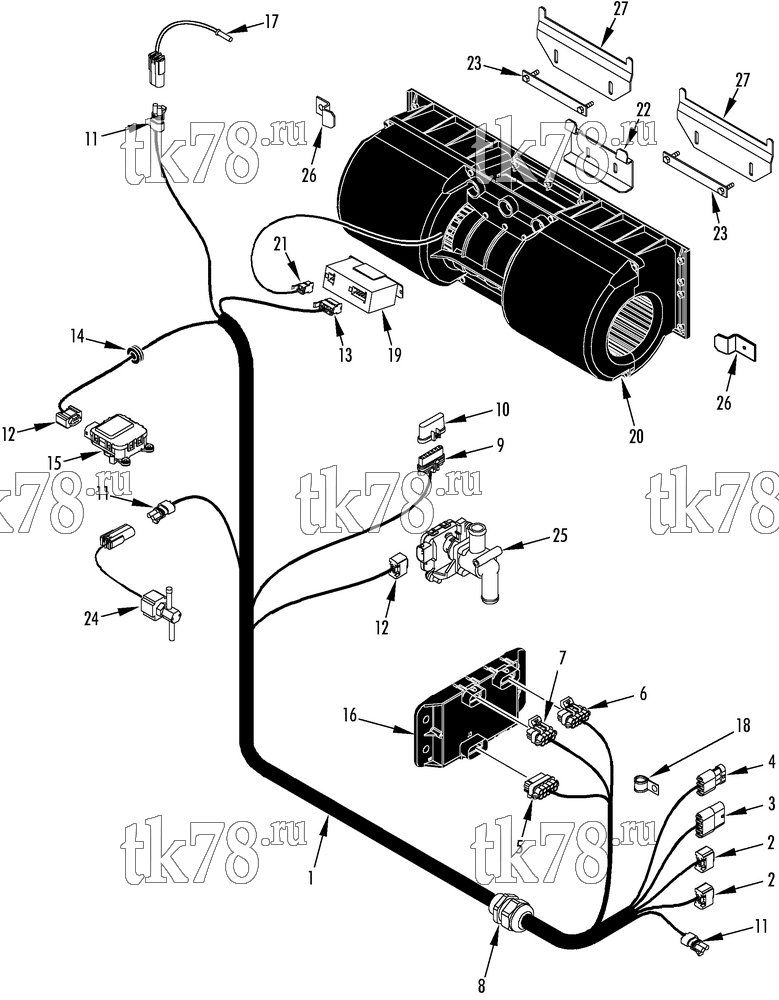

Установкa Thermo King MCI (CS1) Bus схема ELECTRICAL COMPONENTS - DRIVERS DEFROSTER – 166E7
Обновление от: 1/26/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4129 | HARNESS - driver defrost | 1 | |
| 41-3289 | CONNECTOR - green | A/R | ||
| 41-3290 | CONNECTOR - black | A/R | ||
| 2 | 44-7872 | CONNECTOR - tower (6-pin) | 2 | |
| 3 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 4 | 44-9569 | CONNECTOR - shroud (3-pin) | 1 | |
| 5 | 41-4197 | CONNECTOR (J3, 10-pin) | 1 | |
| 6 | 41-4198 | CONNECTOR (J2, 10-pin, seal) | 1 | |
| 41-5054 | LOCK (10-pin) | 2 | ||
| 41-5819 | RESISTOR (1.21 K, .25 W) | 1 | ||
| 41-5820 | SLEEVING - heatshrink | 10 | ||
| 41-4499 | SPLICE | 1 | ||
| 7 | 41-4199 | CONNECTOR (J1, 8-pin) | 1 | |
| 41-5055 | LOCK (8-pin) | 1 | ||
| 8 | 41-4188 | CONNECTOR - liquid tite | 1 | |
| 55-2636 | LOCKNUT | 1 | ||
| 9 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | ||
| 10 | 41-1787 | COVER - connector | 1 | |
| 41-1788 | BUSBAR | 1 | ||
| 11 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 12 | 41-3288 | CONNECTOR (5-pin) | 2 | |
| 41-3290 | TERMINAL - socket (female) | 2 | ||
| 13 | 41-3855 | TERMINAL - connector (10-pin, female) | 1 | |
| 41-2782 | TERMINAL - socket (female) | 1 | ||
| 14 | 33-739 | GROMMET | 1 | |
| 15 | 41-3255 | ACTUATOR (see 166E9) | 1 | |
| 16 | 41-7198 | MODULE - expansion | 1 | |
| 17 | 41-7706 | SENSOR - temperature | 1 | |
| 18 | 55-3065 | CLAMP (0.500 dia) | 1 | |
| 55-2239 | CLAMP (3/8) | 1 | ||
| 19 | 41-3830 | CONTROLLER - speed | 1 | |
| 20 | 41-4200 | BLOWER | 1 | |
| 21 | 41-2769 | CONNECTOR (4-pin, female) | 1 | |
| 22 | 92-1305 | BRACKET - motor support | 1 | |
| 23 | 91-1212 | BOLTSTRIP - bracket | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 4 | ||
| 24 | 66-8021 | VALVE - solenoid (see 138B12) | 1 | |
| 25 | 61-862 | VALVE - water (see 166E6) | 1 | |
| 26 | 92-1303 | CLIP - retainer (blower, .16 dia hole) | 1 | |
| 92-1304 | CLIP - retainer (blower, .34 dia hole) | 1 | ||
| 27 | 92-2884 | CLIP - air duct retainer | 2 |
