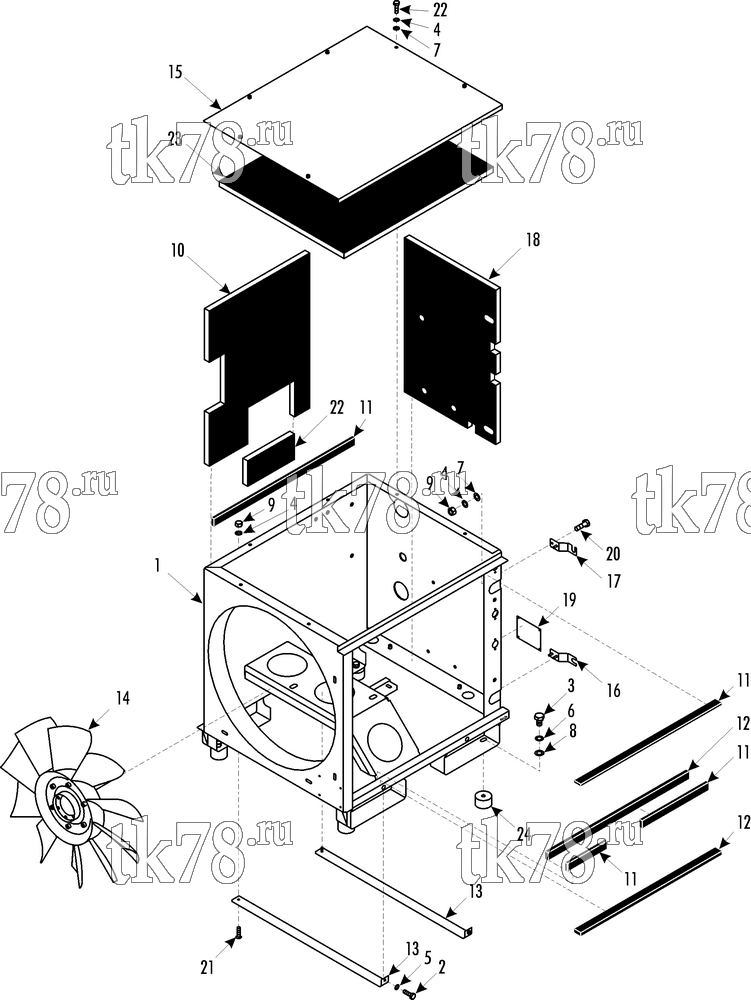

Установкa Thermo King MAN R02/R03 схема STRUCTURAL COMPONENTS - AQUACLIME BOX - STANDARD – 181E0
Обновление от: 3/13/03
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 98-6540 | FRAME - assembly | 1 |
| 55-7373 | NUT - captive (M6) | 4 | |
| 51-311 | NUT - insert | 2 | |
| 2 | 55-5955 | SCREW - bracket | 2 |
| 3 | 55-7708 | SCREW - mount | 4 |
| 4 | 55-4664 | LOCKWASHER - frame | 12 |
| 5 | 55-4608 | LOCKWASHER - bracket | 2 |
| 6 | 55-5411 | LOCKWASHER - mount | 4 |
| 7 | 55-7010 | FLATWASHER | 10 |
| 8 | 55-4625 | FLATWASHER - mount | 4 |
| 9 | 51-312 | NUT (M5) | 6 |
| 10 | 33-3696 | INSULATION - back | 1 |
| 11 | 99-5966 | STRIP - neoprene (10 ft) | A/R |
| 12 | 99-8562 | STRIP - neoprene (5 ft) | A/R |
| 13 | 92-2733 | BRACKET - bottom | 2 |
| 14 | 78-1339 | FAN | 1 |
| 15 | 92-2734 | COVER | 1 |
| 16 | 92-2735 | BRACKET - side | 1 |
| 17 | 92-2736 | BRACKET | 1 |
| 18 | 33-3697 | INSULATION - side | 1 |
| 19 | 92-2737 | NAMEPLATE - Aquaclime | 1 |
| 20 | 55-7340 | SCREW (M5) | 10 |
| 21 | 51-313 | SCREW - bracket | 2 |
| 22 | 33-3698 | INSULATION | 1 |
| 23 | 33-3699 | INSULATION - top | 1 |
| 24 | 92-2738 | MOUNT - vibration | 4 |
