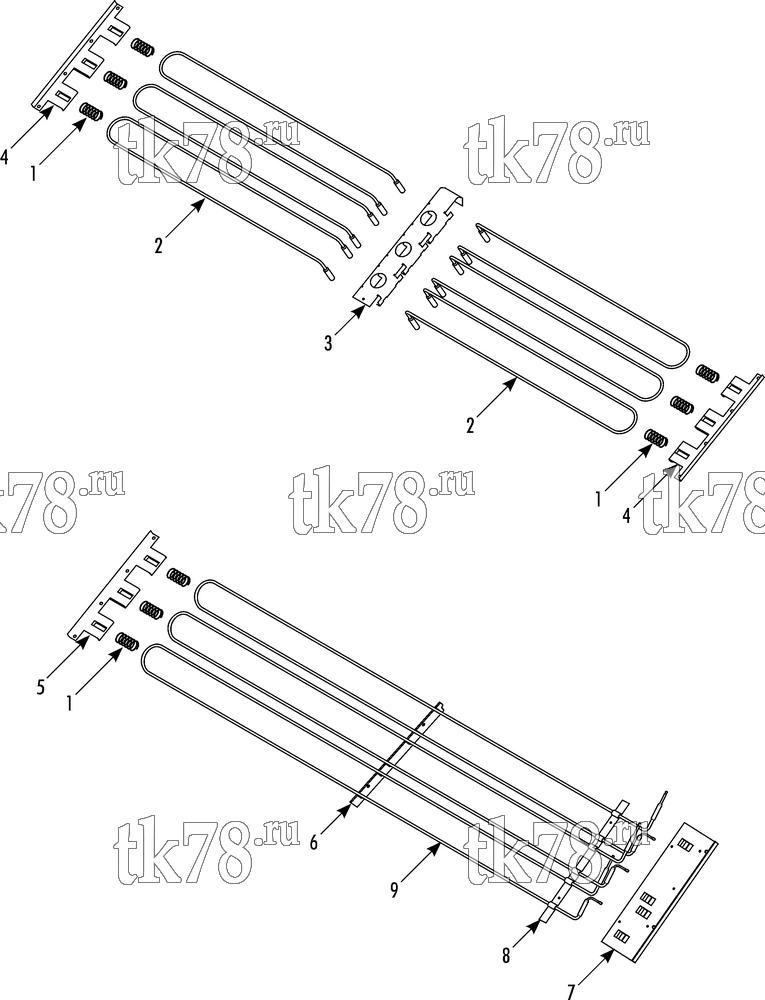

Установкa Thermo King MAGNUM SL mP-4000 схема EVAPORATOR HEATER GROUP – 259A4
Обновление от: 9/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8140 | SPRING - heater | A/R | |
| 2 | 45-1927 | HEATER (680W, 2 meter leads) | 6 | |
| 3 | 91-8142 | BRACKET - heater (center, 15.4/404 long, MAGNUM) | 1 | |
| 91-8634 | BRACKET - heater (center, 13.6/347 long, MAGNUM SL) | 1 | ||
| 4 | 91-8467 | BRACKET - heater (ends, 13.8/350 long, MAGNUM) | 2 | |
| 91-8629 | BRACKET - heater (ends, 12.8/326 long, MAGNUM SL) | 2 | ||
| 51-1447 | SCREW - bracket | A/R | ||
| 5 | 91-8629 | BRACKET - heater (spring end) | 1 | |
| 6 | 92-9488 | BRACKET - heater (center) | 1 | |
| 7 | 92-9489 | BRACKET - heater (lead end) | 1 | |
| 8 | 92-9521 | BRACKET - heater (holddown) | 1 | |
| 51-1447 | SCREW - bracket | A/R | ||
| 9 | 45-2441 | HEATER (1360W, 18 ga leads) | 3 | |
| 45-2451 | HEATER (2000W, 16 ga leads) | 3 |
