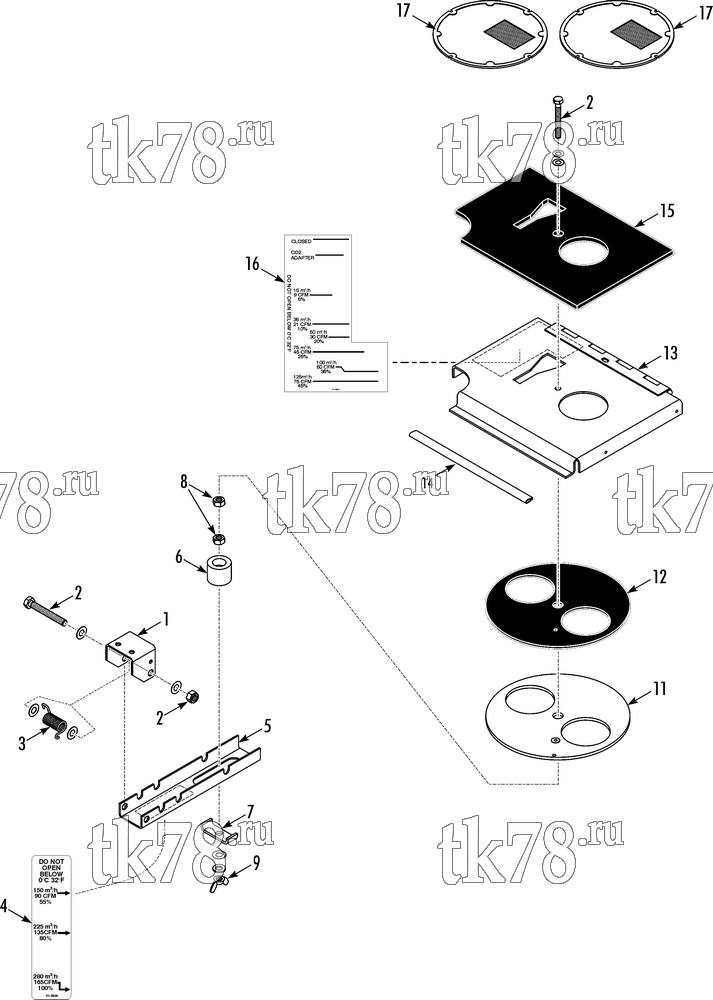

Установкa Thermo King MAGNUM SL mP-4000 схема AIR VENT – 247C7
Обновление от: 7/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 91-8252 | VENT - air (complete) | 1 | ||
| 1 | 91-9048 | BRACKET - air vent handle | 1 | |
| 2 | 51-1426 | SCREW - handle | 2 | |
| 51-1427 | NUT | 1 | ||
| 55-9541 | WASHER - nylon | 4 | ||
| 3 | 91-8100 | SPRING | 1 | |
| 4 | 92-440 | NAMEPLATE - Do Not Open Below 0 C | 1 | |
| 5 | 91-8102 | HANDLE - air vent | 1 | |
| 6 | 77-2467 | BEARING - slide | 1 | |
| 7 | 91-8104 | BRACKET - air vent handle | 1 | |
| 8 | 51-1428 | NUT | 2 | |
| 51-1429 | LOCKWASHER | 1 | ||
| 9 | 51-1431 | NUT - wing | 1 | |
| 10 | 55-9168 | FITTING - barb | 1 | |
| 55-8933 | WASHER - nylon | 1 | ||
| 11 | 91-8103 | DISK - air vent | 1 | |
| 12 | 33-4255 | GASKET - air vent | 1 | |
| 13 | 91-8105 | PLATE - air vent (complete) | 1 | |
| 14 | 91-8663 | PROTECTOR - edge | 1 | |
| 15 | 33-2944 | GASKET - air vent | 1 | |
| 92-9524 | PIN - hinge (w/ snap) | 1 | ||
| 51-1442 | SCREW - plate to frame | 2 | ||
| 51-1441 | WASHER | 2 | ||
| 51-619 | WASHER | 2 | ||
| 16 | 91-9831 | NAMEPLATE - Air Vent Door | 1 | |
| 17 | 93-274 | SCREEN - Med fly | 2 | |
| 51-2308 | SCREW - screen | 8 |
