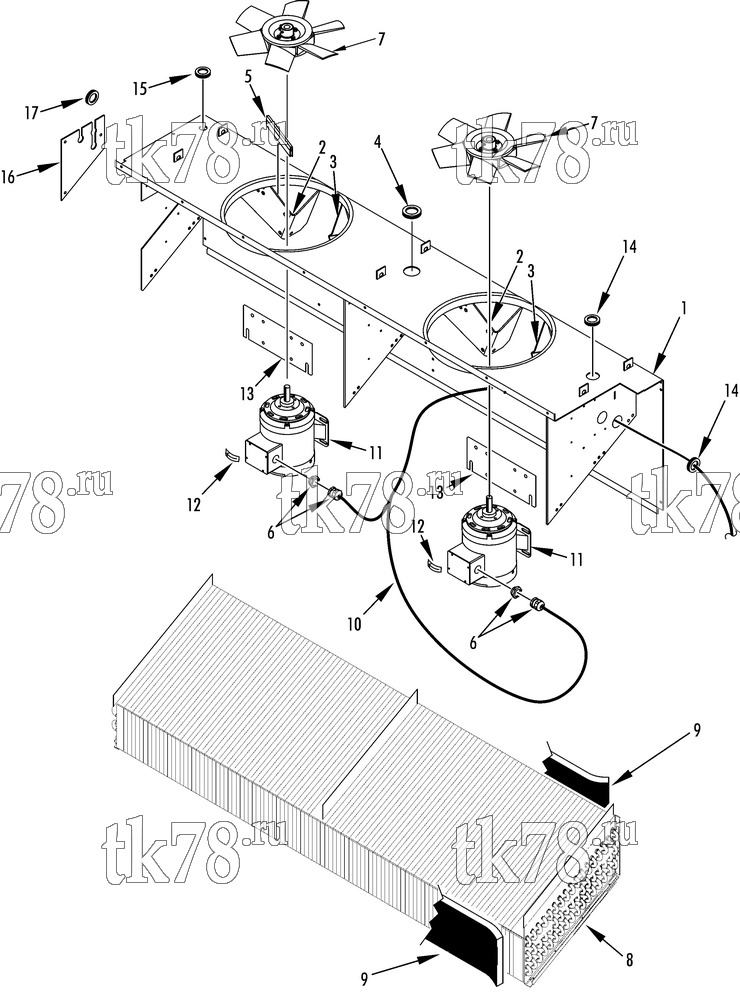

Установкa Thermo King MAGNUM SL mP-4000 схема EVAPORATOR GROUP (TWO FANS, SL-40) – 247C5
Обновление от: 1/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6562 | HOUSING - evaporator | 1 | |
| 2 | 92-2788 | BRACKET (left) | 2 | |
| 3 | 92-2789 | BRACKET (right) | 2 | |
| 55-9162 | RIVET - shroud | 10 | ||
| 4 | 33-3215 | GROMMET (47 mm) | 1 | |
| 5 | 33-3044 | TRIM - edge guard | A/R | |
| 6 | 55-5900 | CONNECTOR - harness & sensor | 2 | |
| 7 | 78-1349 | FAN - evaporator (12 in dia, 305 mm dia, 30 deg pitch) | 2 | |
| 8 | 67-1921 | COIL - evaporator (13.0/330 wide) | 1 | |
| 51-1447 | SCREW - coil | 9 | ||
| 55-9217 | CAP - screw (thread cover) | 9 | ||
| 9 | 91-9328 | BLOCK - coil | 2 | |
| 10 | 41-3685 | HARNESS - evaporator fan | 1 | |
| 11 | 104-691 | MOTOR - fan | 2 | |
| 51-1443 | SCREW - motor | 8 | ||
| 55-7066 | LOCKWASHER (external tooth) | 2 | ||
| 51-1429 | LOCKWASHER | 6 | ||
| 51-1444 | FLATWASHER | 8 | ||
| 51-1427 | NUT | 8 | ||
| 12 | 99-4931 | NAMEPLATE - Arrow | 1 | |
| 13 | 91-8466 | BRACKET - motor | 2 | |
| 51-1443 | SCREW - bracket | 8 | ||
| 51-1444 | FLATWASHER | 8 | ||
| 51-1429 | LOCKWASHER | 8 | ||
| 51-1428 | NUT | 8 | ||
| 14 | 33-2946 | GROMMET (37 mm) | 6 | |
| 15 | 33-3838 | GROMMET (22 mm) | 1 | |
| 16 | 92-2775 | COVER - tube | 1 | |
| 51-1422 | SCREW - cover | 3 | ||
| 51-619 | WASHER - insulator | 3 | ||
| 51-1441 | FLATWASHER | 3 | ||
| 17 | 33-367 | GROMMET | 3 |
