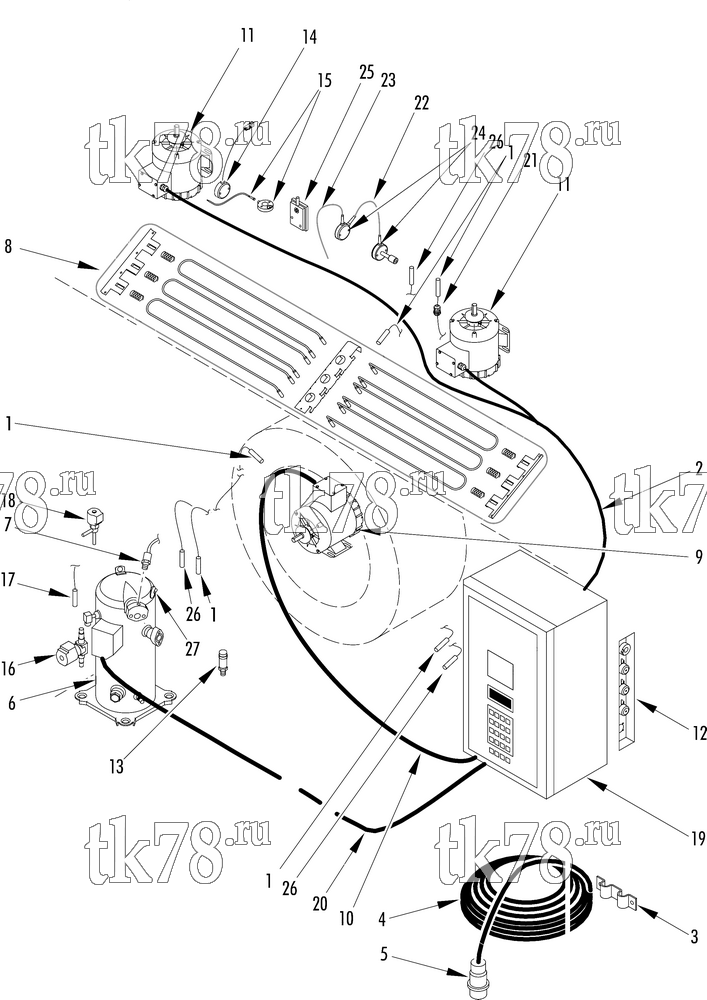

Установкa Thermo King MAGNUM SL mP-4000 схема ELECTRICAL COMPONENTS – 235G1
Обновление от: 7/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-1044 | SENSOR - kit (defrost, ambient, air return, supply & coil) | A/R | |
| 2 | 41-3685 | HARNESS - evaporator (see 235E9/247C5) | 1 | |
| 3 | 92-5546 | BRACKET - cable restraint | 1 | |
| 51-1445 | SCREW - bracket | 2 | ||
| 51-1446 | LOCKWASHER | 2 | ||
| 51-1441 | FLATWASHER | 2 | ||
| 55-9054 | WASHER - insulator | 2 | ||
| 4 | 45-1992 | CABLE - power (19.2 meters, 63 ft, 11/4 ga) | 1 | |
| 5 | 41-1976 | PLUG - power (Minnekes) | 1 | |
| 44-9891 | TERMINAL - pin | 7 | ||
| 40-692 | KIT - Cable Splice | 1 | ||
| 45-1908 | CABLE (11/4, 250 ft roll) | A/R | ||
| 45-2272 | CABLE (11/4, 1000 ft roll) | A/R | ||
| 6 | 102-795 | COMPRESSOR - scroll (see 259C5) | 1 | |
| 7 | 41-4004 | SWITCH - hpco | 1 | |
| 8 | NSS | HEATER GROUP (see grid 259A4) | 1 | |
| 9 | 104-759 | MOTOR - condenser fan (see 235E8) | 1 | |
| 10 | 41-2953 | HARNESS - condenser fan (see 235E8) | 1 | |
| 11 | 104-691 | MOTOR - evaporator fan (see 235E9/247C5) | 2 | |
| 12 | NSS | PANEL - USDA receptacle (see 235G4/247C9) | 1 | |
| 13 | 41-6150 | TRANSDUCER - suction (200PSI, see 235E0/247C0) | 1 | |
| 14 | 41-9220 | SENSOR - humidity (mP 3000 / 4000) | 1 | |
| 15 | 41-9836 | SENSOR - humidity (RS 485, mP 4000 only) | 1 | |
| 42-374 | CABLE - supply (RS 485) | 1 | ||
| 16 | 61-2470 | VALVE - vapor injection (see 235E0/247C0) | 1 | |
| 41-5460 | COIL - valve | 1 | ||
| 17 | 41-4300 | SENSOR - compressor | 1 | |
| 18 | 61-2057 | VALVE - digital (see 235E0/247C0) | 1 | |
| 41-7937 | COIL (only) | 1 | ||
| 19 | NSS | BOX - control (see 235G2) | 1 | |
| 20 | 40-786 | CABLE - compressor | 1 | |
| 21 | 51-270 | CONNECTOR - liquid tite | 1 | |
| 22 | 42-373 | CABLE - connection | 1 | |
| 23 | 42-374 | CABLE - supply | 1 | |
| 24 | 40-1163 | KIT, CO2 / O2 RS485 sensor | 1 | |
| 25 | NSS | HUMIDITY SENSOR - humidity (for OOCL, not supplied by Thermo King) | 1 | |
| 26 | NSS | SENSOR - temperature (for OOCL, not supplied by Thermo King) | 3 | |
| 27 | 40-776 | KIT - thermistor | 1 |
