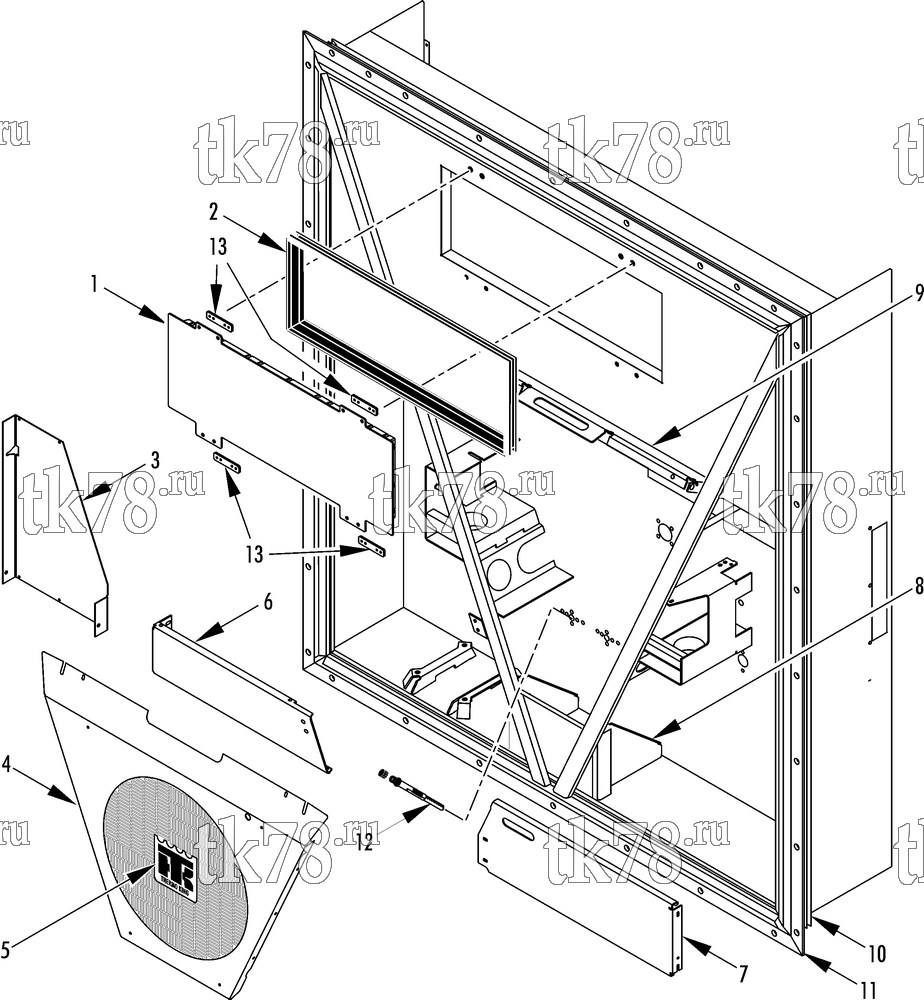

Установкa Thermo King MAGNUM PLUS схема CONDENSER COMPONENTS – 235G5
Обновление от: 9/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7691 | DOOR - evaporator (bolt-on door) | 1 | |
| 51-1460 | SCREW - door (M8, TIR seal) | 4 | ||
| 51-1430 | FLATWASHER (M8) | 4 | ||
| 55-9541 | WASHER (M8, nylon) | 4 | ||
| 51-1459 | SCREW - door (M6, TIR seal) | 4 | ||
| 51-1464 | FLATWASHER (M6) | 4 | ||
| 55-9054 | WASHER (M6, nylon) | 4 | ||
| 2 | 33-3969 | GASKET - evaporator door | 1 | |
| 3 | 91-8728 | COVER (instead of thermometer) | 1 | |
| 51-1467 | SCREW - cover | 3 | ||
| 51-1444 | FLATWASHER | 3 | ||
| 4 | 98-5925 | GRILLE - condenser (see 189C4) | 1 | |
| 33-3043 | GASKET - rubber extrusion | 1 | ||
| 51-1445 | SCREW - grille | 4 | ||
| 51-1464 | FLATWASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 4 | ||
| 5 | 91-8475 | NAMEPLATE - TK | 1 | |
| 6 | 91-8474 | PLATE - guard | 1 | |
| 55-7341 | SCREW - plate | 3 | ||
| 51-1464 | FLATWASHER | 6 | ||
| 55-9054 | WASHER - insulation | 6 | ||
| 7 | 98-6560 | PLATE - cable storage (units w/o water cooled cond) | 1 | |
| 51-1425 | NUT | 2 | ||
| 55-9054 | WASHER (nylon) | 4 | ||
| 51-1464 | FLATWASHER | 4 | ||
| 8 | 91-8108 | BRACKET - frame | 1 | |
| 51-1442 | SCREW - bracket | 5 | ||
| 51-1425 | NUT | 3 | ||
| 55-9054 | WASHER (nylon) | 5 | ||
| 51-1464 | FLATWASHER | 5 | ||
| 9 | 92-891 | BRACKET - safety hook | 1 | |
| 51-1443 | SCREW - bracket | 4 | ||
| 51-1430 | FLATWASHER | 4 | ||
| 55-9541 | WASHER (nylon) | 4 | ||
| 10 | 33-2983 | GASKET - unit | 1 | |
| 11 | 98-8243 | FRAME - condenser | 1 | |
| 12 | 91-9754 | POCKET - sensor | 2 | |
| 13 | 33-4829 | GASKET - door | 4 |
