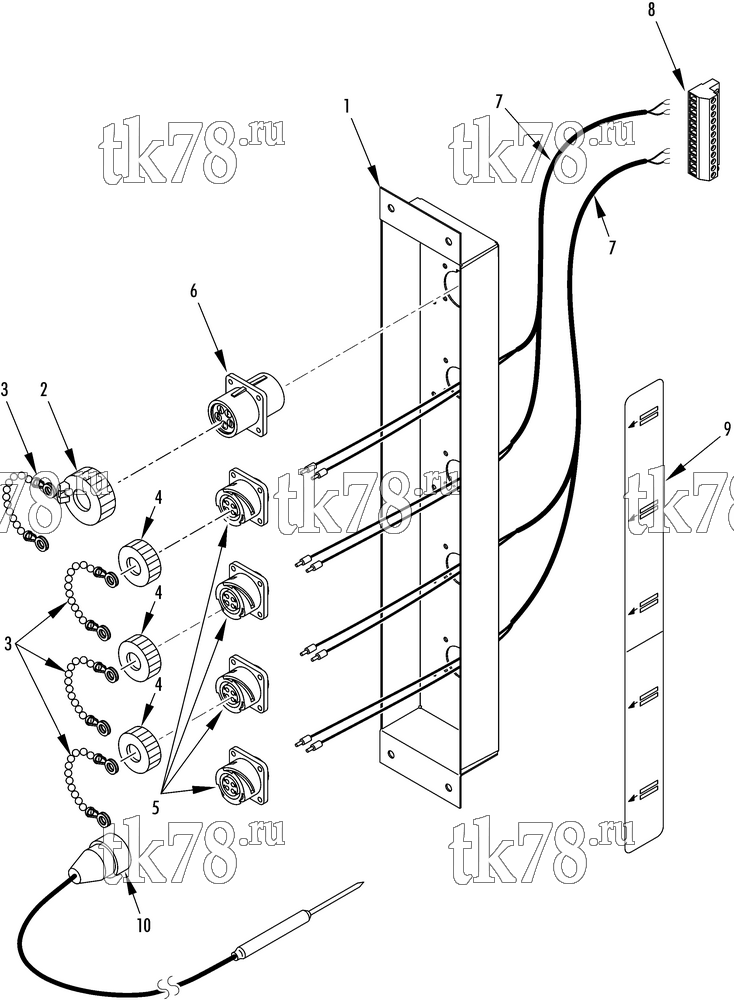

Установкa Thermo King MAGNUM PLUS схема USDA DOWNLOAD PANEL – 235G4
Обновление от: 6/25/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8645 | PANEL - USDA receptacle | 1 | |
| 2 | 41-2406 | CAP - dust | 1 | |
| 92-206 | CAP - dust (rubber) | 1 | ||
| 3 | 99-3685 | CHAIN - cap | 5 | |
| 4 | 41-890 | CAP - dust | 4 | |
| 55-9323 | RIVET - cap | 4 | ||
| 5 | 304-2772 | RECEPTACLE (3-pin) | 4 | |
| 55-2270 | RIVET - receptacle | 16 | ||
| 55-7830 | FLATWASHER | 16 | ||
| 6 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 55-2270 | RIVET - receptacle | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 7 | 41-7183 | CABLE -NTC | 2 | |
| 8 | 41-3585 | CONNECTOR - plug (12-pin) | 1 | |
| 9 | 92-5392 | NAMEPLATE - data download USDA | 1 | |
| 10 | 41-8188 | SENSOR - thermistor (2.5 dia probe, 3-pin Deutsch, 14 m NTC, USDA) | 1 | |
| 11 | 41-7183 | CABLE - NTC | 2 |
