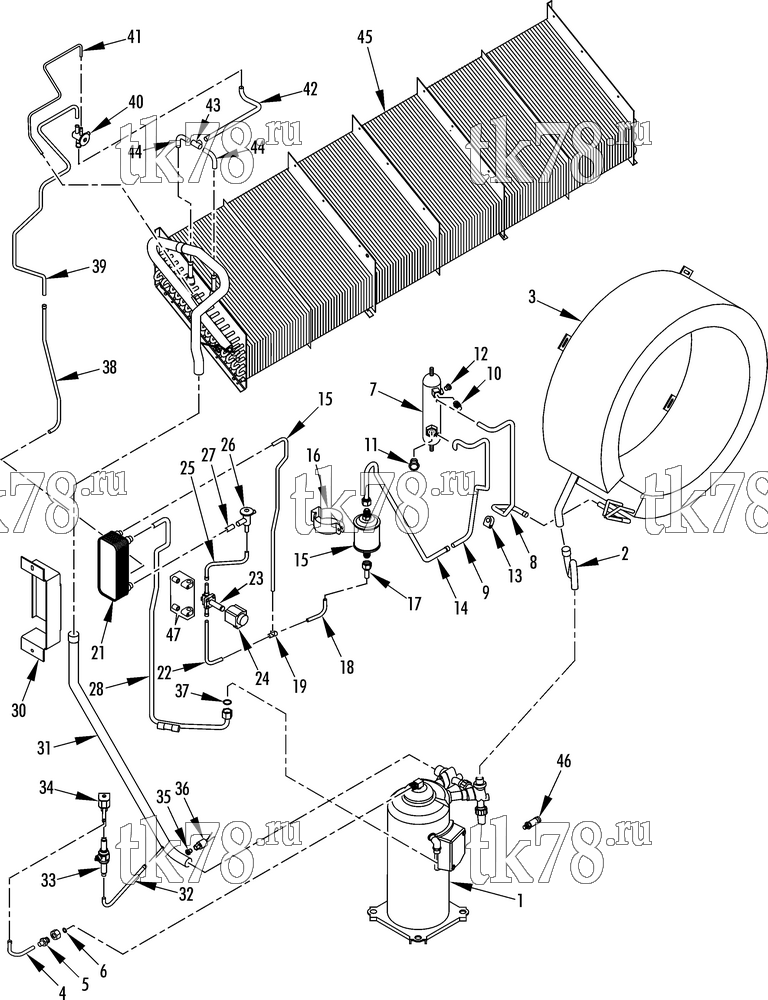

Установкa Thermo King MAGNUM PLUS схема REFRIGERATION COMPONENTS (SERVICE VALVES) – 235E0
Обновление от: 2/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-795 | COMPRESSOR - scroll (see 180E1) | 1 | |
| 92-2229 | SPACER - compressor | 1 | ||
| 2 | 61-2477 | TUBE - valve to coil | 1 | |
| 3 | 60-285 | COIL - condenser | 1 | |
| 4 | 61-2467 | TUBE - valve to coil | 1 | |
| 5 | 61-2162 | ADAPTER - compressor | 1 | |
| 6 | 33-3912 | SEAL - teflon fiber | 1 | |
| 7 | 67-2787 | TANK - receiver | 1 | |
| 8 | 61-2238 | TUBE - receiver to dehydrator | 1 | |
| 9 | 61-2569 | TUBE - receiver to condenser | 1 | |
| 10 | 66-7812 | CAP - fitting | 1 | |
| 11 | 66-8811 | INDICATOR - liquid | 1 | |
| 33-3007 | O-RING | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 12 | 506-364 | PLUG - fusible | 1 | |
| 51-273 | NUT - receiver tank | 2 | ||
| 55-9027 | WASHER - insulating | 4 | ||
| 13 | 55-6730 | CLAMP - tube | 2 | |
| 51-1421 | SCREW - clamp | 1 | ||
| 51-1425 | NUT | 1 | ||
| 14 | 61-3508 | TUBE - receiver to dehydrator | 1 | |
| 55-302 | NUT - adapter | 1 | ||
| 15 | 61-786 | DEHYDRATOR | 1 | |
| 16 | 51-1871 | CLAMP - dehydrator | 1 | |
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1441 | FLATWASHER - clamp | 1 | ||
| 51-1425 | NUT - clamp | 1 | ||
| 55-9054 | WASHER - insulating | 1 | ||
| 51-1442 | SCREW - dehydrator | 1 | ||
| 51-1464 | FLATWASHER - dehydrator | 2 | ||
| 17 | 61-3506 | TUBE - filter | 1 | |
| 55-302 | NUT - adapter | 1 | ||
| 18 | 61-3503 | TUBE - filter to tee | 1 | |
| 19 | 55-3251 | TEE | 1 | |
| 20 | 61-2471 | TUBE - tee to exchanger | 1 | |
| 21 | 67-1889 | HEAT EXCHANGER - economizer | 1 | |
| 92-3547 | INSULATION - heat exchanger | 1 | ||
| 22 | 61-2472 | TUBE - tee to valve | 1 | |
| 91-758 | CLAMP - tube | 1 | ||
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1441 | FLATWASHER | 2 | ||
| 55-8915 | SPACER | 1 | ||
| 23 | 61-2470 | VALVE - solenoid (vapor injection) | 1 | |
| 24 | 41-5460 | COIL - valve | 1 | |
| 504-919 | COIL | 1 | ||
| 25 | 61-2469 | TUBE - valve to expansion | 1 | |
| 26 | 66-9906 | VALVE - expansion (economizer) | 1 | |
| 27 | 61-1847 | TUBE - expansion valve to exchanger | 1 | |
| 28 | 61-2474 | TUBE - liquid injection | 1 | |
| 55-8951 | SHOULDER | 1 | ||
| 55-8950 | NUT - o-ring seal | 1 | ||
| 33-4499 | INSULATION - tube (cut to 24.5 in lg) | A/R | ||
| 33-4499 | INSULATION - tube (cut to 19.0 in lg) | A/R | ||
| 91-1800 | CLAMP - tube | 2 | ||
| 51-1442 | SCREW - clamp | 1 | ||
| 51-1425 | NUT | 1 | ||
| 29 | 61-2476 | TUBE - tx bulb | 1 | |
| 30 | 92-3391 | BRACKET - heat exchanger | 1 | |
| 92-3550 | INSULATION - mylar | 1 | ||
| 31 | 61-3502 | TUBE - suction | 1 | |
| 33-4500 | INSULATION - tube (42.1 in lg) | A/R | ||
| 32 | 61-2466 | TUBE - suction to ball valve | 1 | |
| 33 | 61-2465 | VALVE - ball | 1 | |
| 34 | 61-2057 | VALVE (PWM) | 1 | |
| 41-7937 | COIL (only) | 1 | ||
| 35 | 66-6607 | FITTING - low side | 1 | |
| 66-7183 | CAP - charge port (blue) | 1 | ||
| 66-8054 | ADAPTER | 1 | ||
| 36 | 41-4473 | SWITCH - lpco | 1 | |
| 37 | 33-566 | O-RING | 1 | |
| 38 | 61-2468 | TUBE - heat exchanger to evaporator | 1 | |
| 33-4501 | INSULATION - tube (14.1 in lg) | A/R | ||
| 39 | 61-2050 | TUBE - exchanger to coil (#2) | 1 | |
| 40 | 61-443 | VALVE - expansion | 1 | |
| 41 | 61-2048 | TUBE - equalizer | 1 | |
| 42 | 61-2049 | TUBE - expansion valve to tee | 1 | |
| 43 | 55-2296 | TEE | 1 | |
| 44 | 61-2051 | TUBE - tee to distributor | 1 | |
| 45 | 67-1923 | COIL - evaporator (14.7/374 wide, see 235E9) | 1 | |
| 46 | 41-4004 | SWITCH - hpco | 1 | |
| 47 | 55-6388 | CLAMP - tube (3/8) | 3 | |
| 91-759 | CLAMP - tube (1/2) | 1 | ||
| 55-8915 | SPACER (18 mm) | 4 | ||
| 55-7029 | SCREW - clamp (65 mm) | 2 | ||
| 55-8993 | SCREW - clamp (50 mm) | 2 | ||
| 55-9027 | WASHER (nylon) | 2 |
