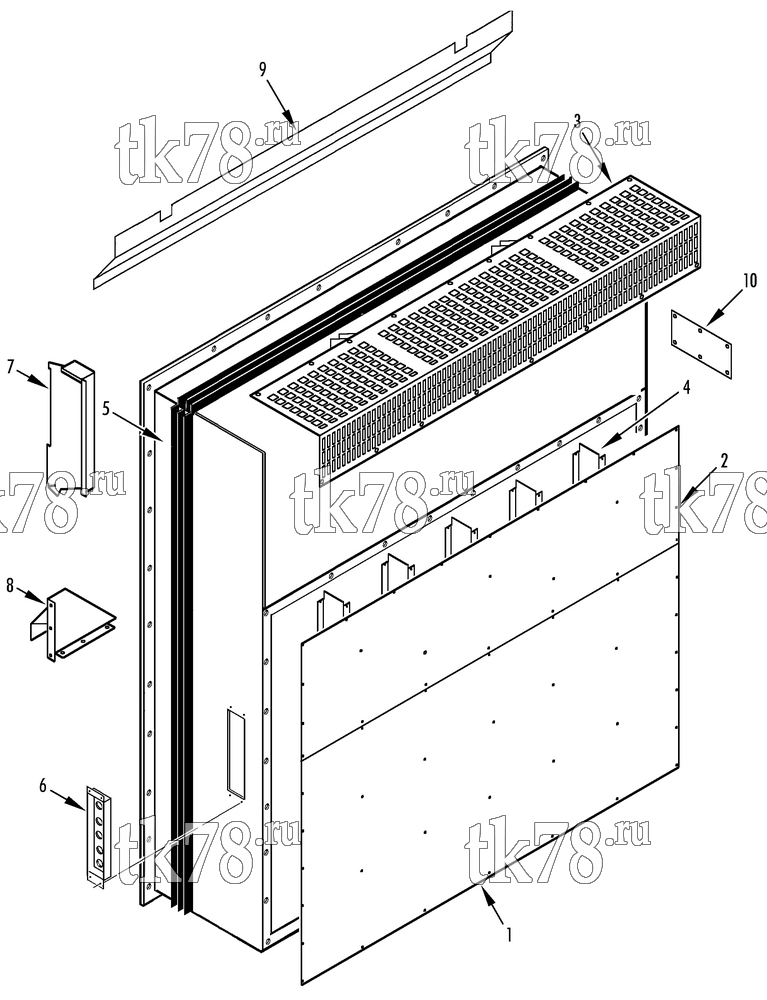

Установкa Thermo King MAGNUM Maersk Sealand схема EVAPORATOR PANELS (2 FAN UNITS) – 189C5
Обновление от: 8/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5772 | PANEL - rear (bottom) | 1 | |
| 98-6240 | PANEL - rear (bottom, painted) | 1 | ||
| 55-3136 | RIVET - bottom rear plate | 1 | ||
| 2 | 98-5772 | PANEL - rear (top) | 1 | |
| 98-5924 | PANEL - rear (top, painted) | 1 | ||
| 51-336 | SCREW - panel (Torx) | 23 | ||
| 55-9444 | WASHER | 23 | ||
| 3 | 98-5923 | GRILLE - evaporator | 1 | |
| 98-5923 | GRILLE - evaporator | 1 | ||
| 55-3136 | RIVET - grille | 17 | ||
| 4 | 92-427 | CHANNEL - Z | 5 | |
| 51-621 | RIVET - channel | 40 | ||
| 5 | 33-2983 | GASKET - unit | 1 | |
| 6 | 91-8645 | PANEL - USDA receptacle (see 212G6) | 1 | |
| 7 | 91-9329 | CHANNEL - air | 1 | |
| 92-2773 | CHANNEL - air (800E) | 1 | ||
| 203-455 | SEALER - polyurethane | A/R | ||
| 55-8891 | SCREW - channel | 6 | ||
| 8 | 91-9330 | INLET - fresh air | 1 | |
| 55-9323 | RIVET - inlet | 10 | ||
| 203-455 | SEALER - polyurethane | A/R | ||
| 9 | 91-9331 | CHANNEL - fresh air | 1 | |
| 55-9323 | RIVET - channel | 8 | ||
| 10 | 92-722 | PLATE - cover | 1 | |
| 55-9323 | RIVET - plate | 6 |
