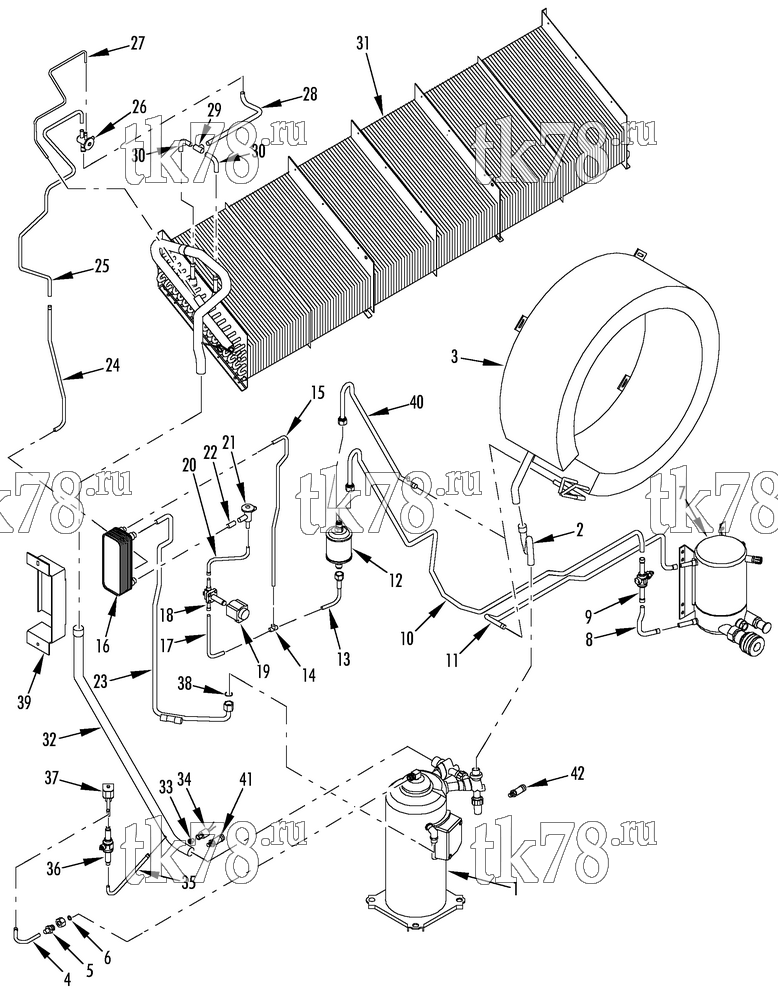

Установкa Thermo King MAGNUM Maersk Sealand схема REFRIGERATION COMPONENTS (WCC, SERVICE VALVES) – 189B9
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-795 | COMPRESSOR - scroll (see 180E1) | 1 | |
| 2 | 61-2477 | TUBE - valve to coil | 1 | |
| 3 | 60-285 | COIL - condenser | 1 | |
| 4 | 61-2467 | TUBE - valve to compressor | 1 | |
| 5 | 61-2162 | ADAPTER - compressor | 1 | |
| 6 | 33-3912 | SEAL - teflon fiber | 1 | |
| 66-7543 | TUBE (0.500 od x 1.880 lg cu) | 1 | ||
| 66-9447 | TUBE (0.500 od x 2.250 lg cu) | 1 | ||
| 7 | 67-1575 | TANK - water cooled condenser (see 154E13) | 1 | |
| 8 | 61-3504 | TUBE - condenser to tee | 1 | |
| 9 | 61-3525 | VALVE - ball | 1 | |
| 10 | 61-3542 | TUBE - valve to dehydrator | 1 | |
| 11 | 61-1305 | TUBE - condenser to condenser | 1 | |
| 12 | 61-786 | DEHYDRATOR (o-ring seal) | 1 | |
| 55-4390 | CLAMP - dehydrator | 1 | ||
| 51-1440 | SCREW - clamp | 1 | ||
| 51-1441 | FLATWASHER | 2 | ||
| 51-1425 | NUT | 1 | ||
| 13 | 61-3503 | TUBE - filter | 1 | |
| 14 | 55-3251 | TEE | 1 | |
| 15 | 61-2471 | TUBE - tee to exchanger | 1 | |
| 16 | 67-1889 | HEAT EXCHANGER - economizer | 1 | |
| 17 | 61-2472 | TUBE - tee to valve | 1 | |
| 18 | 61-2470 | VALVE - solenoid (vapor injection) | 1 | |
| 19 | 41-5460 | COIL - valve | 1 | |
| 20 | 61-2469 | TUBE - valve to expansion | 1 | |
| 21 | 66-9906 | VALVE - expansion (economizer) | 1 | |
| 22 | 61-1847 | TUBE - expansion valve to exchanger | 1 | |
| 23 | 61-2474 | TUBE - liquid injection | 1 | |
| 55-8951 | SHOULDER | 1 | ||
| 55-8950 | NUT - o-ring seal | 1 | ||
| 24 | 61-2468 | TUBE - heat exchanger to evaporator | 1 | |
| 25 | 61-2050 | TUBE - exchanger to coil (#2) | 1 | |
| 26 | 61-443 | VALVE - expansion | 1 | |
| 92-2228 | SPACER - clamp | 1 | ||
| 55-6388 | CLAMP - valve | 1 | ||
| 51-1439 | SCREW - clamp | 1 | ||
| 27 | 61-2048 | TUBE - equalizer | 1 | |
| 28 | 61-2049 | TUBE - expansion valve to tee | 1 | |
| 29 | 55-2296 | TEE | 1 | |
| 30 | 61-2051 | TUBE - tee to distributor | 1 | |
| 31 | 67-1923 | COIL - evaporator (14.7/374 wide, see 180D9) | 1 | |
| 67-1921 | COIL - evaporator (13.0/330 wide, MAGNUM SL-40, see 183B4) | 1 | ||
| 67-1922 | COIL - evaporator (11.3/286 wide, MAGNUM SL-20, see 183B6) | 1 | ||
| 32 | 61-2464 | TUBE - suction (before 4/05) | 1 | |
| 61-3502 | TUBE - suction (4/05 & after) | 1 | ||
| 33 | 66-8054 | ADAPTER | 1 | |
| 34 | 41-4473 | SWITCH - lpco | 1 | |
| 35 | 61-2466 | TUBE - suction to ball valve | 1 | |
| 36 | 61-2465 | VALVE - ball | 1 | |
| 37 | 61-2057 | VALVE (PWM) | 1 | |
| 41-7937 | COIL (only) | 1 | ||
| 38 | 33-566 | O-RING | 1 | |
| 39 | 92-3391 | BRACKET - heat exchanger | 1 | |
| 51-1442 | SCREW - bracket | 2 | ||
| 55-9054 | WASHER - insulating | 2 | ||
| 51-1464 | FLATWASHER | 2 | ||
| 40 | 61-3508 | TUBE - coil to dehydrator (units w/o WCC) | 1 | |
| 41 | 41-6150 | TRANSDUCER - suction (200 psi) | 1 | |
| 42 | 41-6151 | TRANSDUCER - discharge (500 psi) | 1 |
