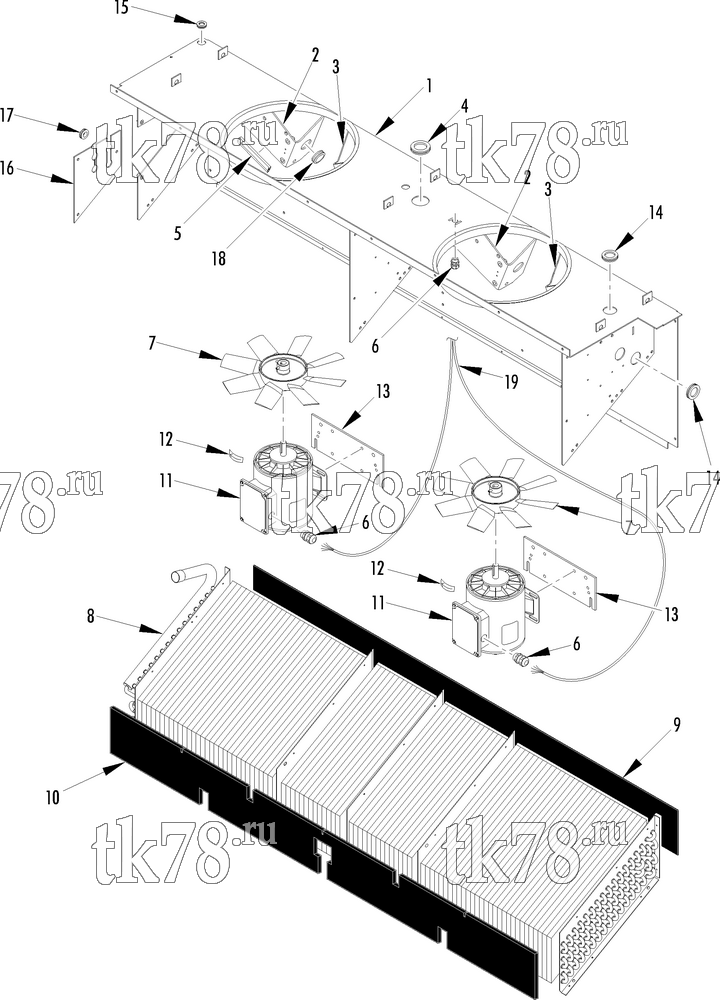

Установкa Thermo King MAGNUM Maersk Sealand схема EVAPORATOR GROUP (TWO FANS) – 189B4
Обновление от: 6/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6566 | HOUSING - evaporator | 1 | |
| 2 | 92-2779 | BRACKET - left | 2 | |
| 3 | 92-2332 | BRACKET - right | 2 | |
| 55-9698 | INSERT - threaded (M6) | 4 | ||
| 51-776 | INSERT - threaded (M8) | 8 | ||
| 55-9162 | RIVET - shroud | 10 | ||
| 4 | 33-3215 | GROMMET (47 mm) | 1 | |
| 5 | 33-3044 | TRIM - edge guard | A/R | |
| 6 | 55-5900 | CONNECTOR - harness & sensor | 3 | |
| 7 | 78-1117 | FAN - evaporator (14 in dia, 25 deg pitch) | 2 | |
| 8 | 67-1923 | COIL - evaporator | 1 | |
| 55-8891 | SCREW - coil | 9 | ||
| 55-9217 | CAP - screw | 3 | ||
| 9 | 91-9328 | BLOCK - coil | 2 | |
| 10 | 92-6966 | BLOCK - coil | 1 | |
| 11 | 104-691 | MOTOR - fan | 2 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 51-1443 | SCREW - motor | 8 | ||
| 55-7066 | LOCKWASHER (external tooth) | 2 | ||
| 51-1429 | LOCKWASHER | 6 | ||
| 51-1444 | FLATWASHER | 8 | ||
| 51-1427 | NUT | 8 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 12 | 99-4931 | NAMEPLATE - Arrow | 1 | |
| 13 | 91-8466 | BRACKET - motor | 2 | |
| 55-6993 | SCREW - bracket | 8 | ||
| 51-1444 | FLATWASHER | 16 | ||
| 51-1429 | LOCKWASHER | 8 | ||
| 14 | 33-2946 | GROMMET (37 mm) | 5 | |
| 15 | 33-3838 | GROMMET (22 mm) | 2 | |
| 16 | 92-2775 | COVER - tube | 1 | |
| 55-7172 | SCREW - cover | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 17 | 33-367 | GROMMET (.625 id) | 3 | |
| 18 | 33-3917 | GROMMET | 2 | |
| 19 | 41-4018 | HARNESS - evaporator fan | 1 | |
| 44-9889 | TERMINAL (16 gauge pin) | A/R |
