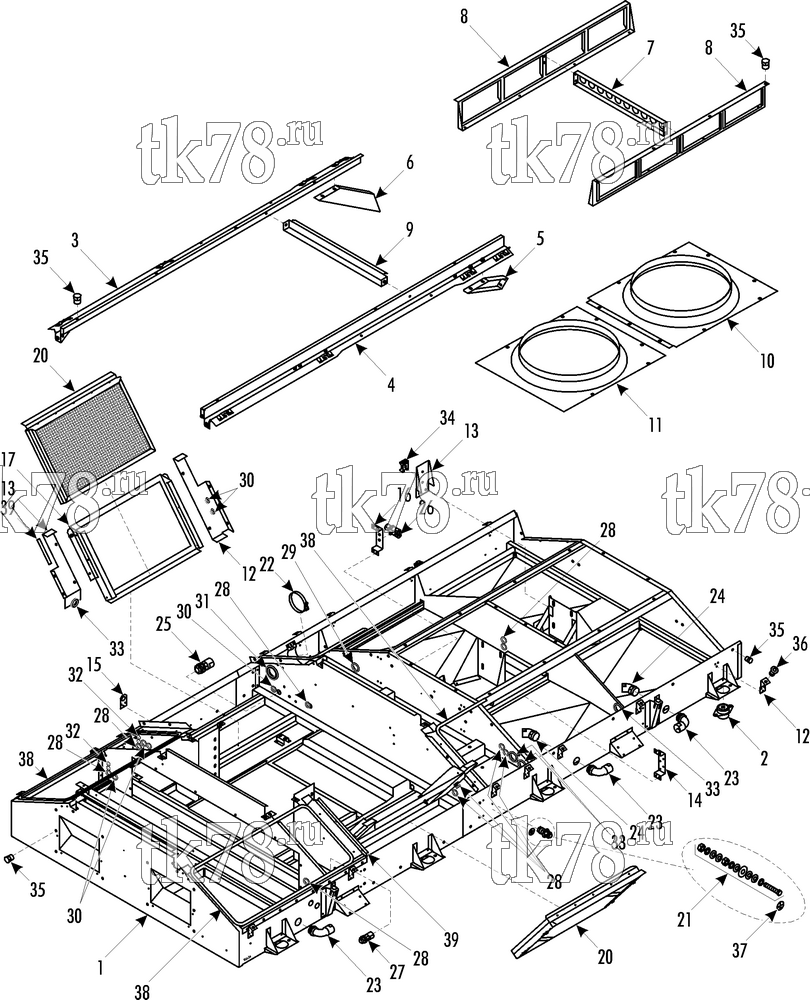

Установкa Thermo King LRV-STD I схема FRAME & COMPONENTS – 186D7
Обновление от: 8/20/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6692 | FRAME | 1 | |
| 2 | 309-1963 | ISOLATOR - frame | 8 | |
| 55-7341 | SCREW - isolator | 16 | ||
| 55-6988 | FLATWASHER | 16 | ||
| 55-7066 | LOCKWASHER | 16 | ||
| 55-7825 | NUT | 16 | ||
| 3 | 98-6693 | BEAM - left | 1 | |
| 4 | 98-6694 | BEAM - right | 1 | |
| 55-6994 | SCREW - beam (M6) | 10 | ||
| 55-6996 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 55-9553 | NUT | 6 | ||
| 55-7691 | SCREW - beam (M8) | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-7825 | NUT | 2 | ||
| 5 | 309-3447 | STRUT - right | 1 | |
| 6 | 309-3448 | STRUT - left | 1 | |
| 55-7691 | SCREW - strut | 4 | ||
| 55-7341 | SCREW - strut | 4 | ||
| 55-7085 | FLATWASHER | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 7 | 98-5686 | BRACKET - cover | 1 | |
| 8 | 92-784 | BRACKET - cover | 2 | |
| 9 | 92-2210 | BRACKET - bar | 1 | |
| 55-6994 | SCREW - brackets | 14 | ||
| 55-6996 | LOCKWASHER | 14 | ||
| 55-7075 | FLATWASHER | 14 | ||
| 55-9553 | NUT - captive | 14 | ||
| 10 | 78-1248 | RING - fan | 1 | |
| 11 | 78-1288 | RING - fan | 1 | |
| 55-6994 | SCREW - ring | 7 | ||
| 55-6996 | LOCKWASHER | 7 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 55-3045 | LOCKWASHER - special | 7 | ||
| 12 | 92-809 | HOLDER - side cover locks | 14 | |
| 55-3010 | RIVET - holder | 42 | ||
| 13 | 309-3443 | BRACKET - harness | 4 | |
| 14 | 309-3452 | BRACKET - harness | 1 | |
| 15 | 92-3100 | BRACKET - temperature sensor | 1 | |
| 16 | 92-3101 | BRACKET - harness | 1 | |
| 55-5130 | RIVET - sensor & harness brackets | 19 | ||
| 17 | 92-3102 | BRACKET - air filter | 1 | |
| 18 | 92-3103 | WALL - air filter | 1 | |
| 19 | 92-3104 | WALL - air filter | 1 | |
| 55-6994 | SCREW - filter wall & bracket | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9553 | NUT - captive | 8 | ||
| 20 | NSS | FILTER - air (see 186D5) | 2 | |
| 21 | 305-1654 | SCREW - ground | 1 | |
| 55-3672 | LOCKWASHER | 1 | ||
| 51-103 | NUT - brass | 2 | ||
| 55-7621 | LOCKWASHER - internal tooth | 3 | ||
| 55-8955 | FLATWASHER - brass | 5 | ||
| 22 | 55-7799 | CLAMP - dehydrator | 1 | |
| 23 | 51-687 | BUSHING - cable | 3 | |
| 55-9561 | LOCKNUT | 1 | ||
| 24 | 51-688 | BUSHING - cable | 2 | |
| 25 | 51-112 | BUSHING - cable | 1 | |
| 55-9988 | LOCKNUT | 1 | ||
| 26 | 41-5497 | COUPLER - 3-way | 1 | |
| 55-7027 | SCREW - coupler | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 55-9553 | NUT - captive | 2 | ||
| 27 | 51-187 | BUSHING - cable | 1 | |
| 51-188 | LOCKNUT | 1 | ||
| 28 | 33-415 | GROMMET (5/8 id) | 9 | |
| 29 | 33-612 | GROMMET (7/8 id) | 1 | |
| 30 | 33-1002 | GROMMET (7/16 id) | 7 | |
| 31 | 33-930 | GROMMET (2-1/8 id) | 1 | |
| 32 | 33-1055 | GROMMET (3/8 id) | 4 | |
| 33 | 33-994 | GROMMET (1-3/8 id) | 4 | |
| 34 | 99-3281 | TIE - cable | A/R | |
| 55-5130 | RIVET - tie | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 35 | 55-9553 | NUT - captive | A/R | |
| 36 | 55-8835 | NUT - captive | A/R | |
| 37 | 92-783 | LABEL - ground | 1 | |
| 38 | 92-3105 | RUBBER - extrusion | A/R | |
| 39 | 99-1441 | EXTRUSION - rubber | A/R |
