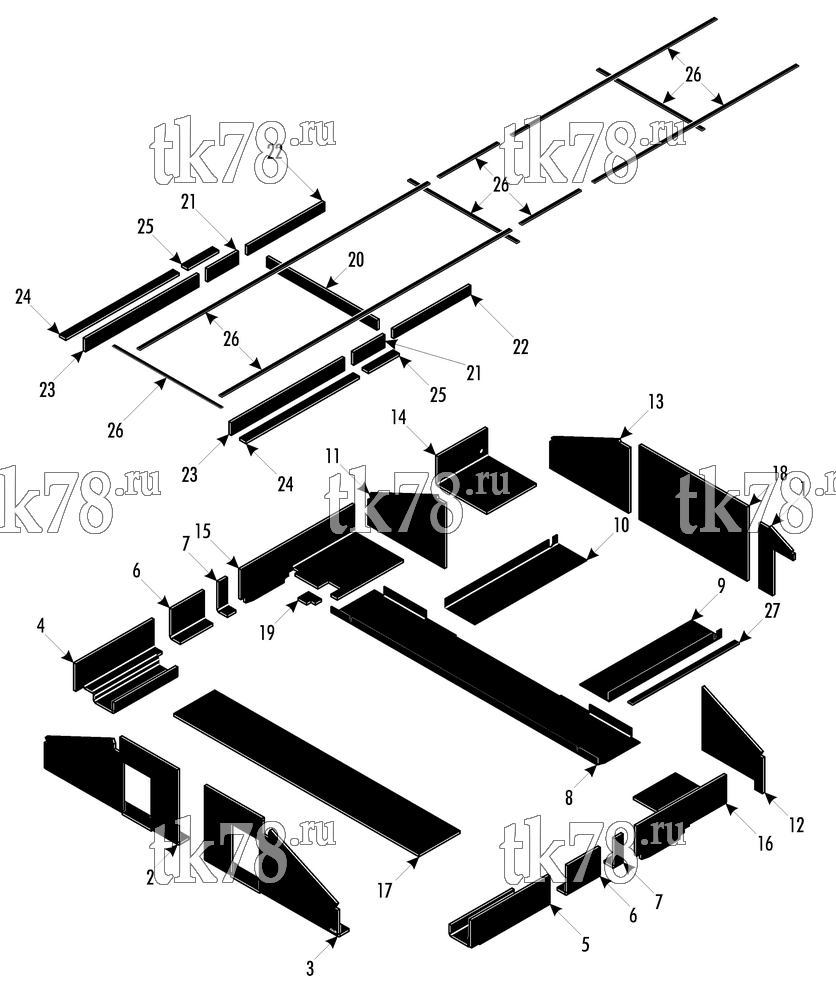

Установкa Thermo King LRV-8T VR3 схема INSULATION GROUP – 253G7
Обновление от: 11/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3817 | INSULATION - wall | 1 | |
| 2 | 92-9381 | INSULATION - front | 1 | |
| 3 | 92-9382 | INSULATION - front | 1 | |
| 4 | 92-4233 | INSULATION - side | 1 | |
| 5 | 92-4234 | INSULATION - side | 1 | |
| 6 | 92-4235 | INSULATION - side | 2 | |
| 7 | 92-4236 | INSULATION - side | 2 | |
| 8 | 92-4237 | INSULATION - drain | 1 | |
| 9 | 92-4238 | INSULATION - drain | 1 | |
| 10 | 92-4239 | INSULATION - drain | 1 | |
| 11 | 33-3294 | INSULATION - wall | 1 | |
| 12 | 33-3293 | INSULATION - wall left | 1 | |
| 13 | 33-3398 | INSULATION - wall | 1 | |
| 14 | 33-3412 | INSULATION - left | 1 | |
| 15 | 33-3413 | INSULATION - right | 1 | |
| 16 | 33-3411 | INSULATION - left | 1 | |
| 17 | 33-3402 | INSULATION - bottom | 1 | |
| 18 | 33-3594 | INSULATION - back | 1 | |
| 19 | 33-3414 | INSULATION | 1 | |
| 20 | 303-836 | INSULATION - bracket | 1 | |
| 21 | 92-4240 | INSULATION - bracket | 2 | |
| 22 | 92-4241 | INSULATION - bracket | 2 | |
| 23 | 92-4242 | INSULATION - bracket | 2 | |
| 24 | 92-4243 | INSULATION - bracket | 2 | |
| 25 | 92-4244 | INSULATION - bracket | 2 | |
| 26 | 99-1908 | STRIP - neoprene | A/R | |
| 27 | 99-5966 | STRIP - neoprene | A/R |
