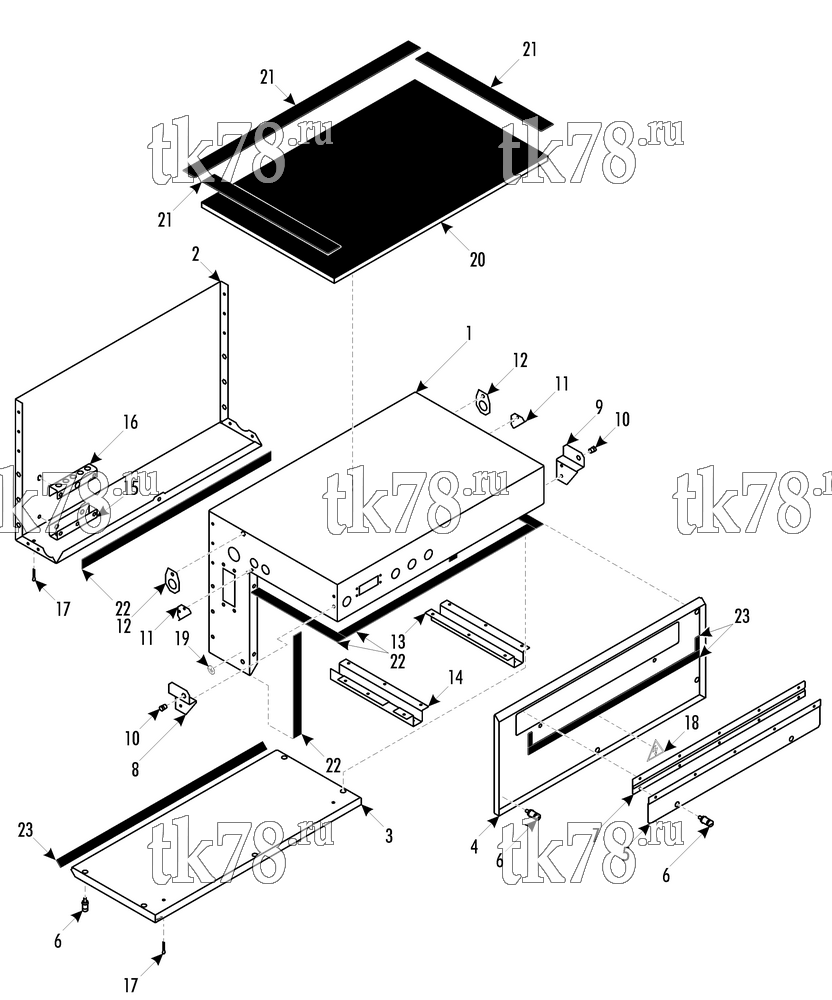

Установкa Thermo King LRV-8T VR3 схема CONTROL BOX PANELS – 253G6
Обновление от: 11/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9385 | PANEL - basic | 1 | |
| 2 | 92-9386 | PANEL - back | 1 | |
| 55-6994 | SCREW - panels | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 55-3101 | RIVET | 6 | ||
| 3 | 92-2034 | PANEL - bottom | 1 | |
| 4 | 92-2236 | PANEL - front | 1 | |
| 5 | 92-1979 | DOOR - access | 1 | |
| 6 | 55-9758 | SCREW - captive (panels & door) | 12 | |
| 55-8375 | NUT - captive | 12 | ||
| 7 | 92-1980 | HINGE - access door | 1 | |
| 55-5130 | RIVET - hinge | 10 | ||
| 55-7697 | FLATWASHER | 10 | ||
| 8 | 92-775 | BRACKET | 1 | |
| 9 | 92-776 | BRACKET | 1 | |
| 55-3101 | RIVET - bracket | 4 | ||
| 10 | 55-7373 | NUT - captive | 2 | |
| 11 | 92-1420 | MOLDING | 2 | |
| 55-5130 | RIVET | 4 | ||
| 12 | 92-1977 | LIFTER | 2 | |
| 55-6994 | SCREW - lifter | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 13 | 92-1413 | BRACKET - controller | 1 | |
| 14 | 92-1414 | BRACKET - controller | 1 | |
| 55-5130 | RIVET - bracket | 12 | ||
| 15 | 92-2610 | HOLDER - transformer | 1 | |
| 16 | 92-2611 | HOLDER - transformer | 1 | |
| 55-6994 | SCREW - holder | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 17 | 55-3458 | PIN - cotter | 4 | |
| 18 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 19 | 92-783 | LABEL - ground | 1 | |
| 20 | 92-2237 | INSULATION - top | 1 | |
| 21 | 33-2420 | STRIP - neoprene | A/R | |
| 22 | 99-6968 | STRIP - neoprene | A/R | |
| 23 | 33-2668 | STRIP - neoprene | A/R |
