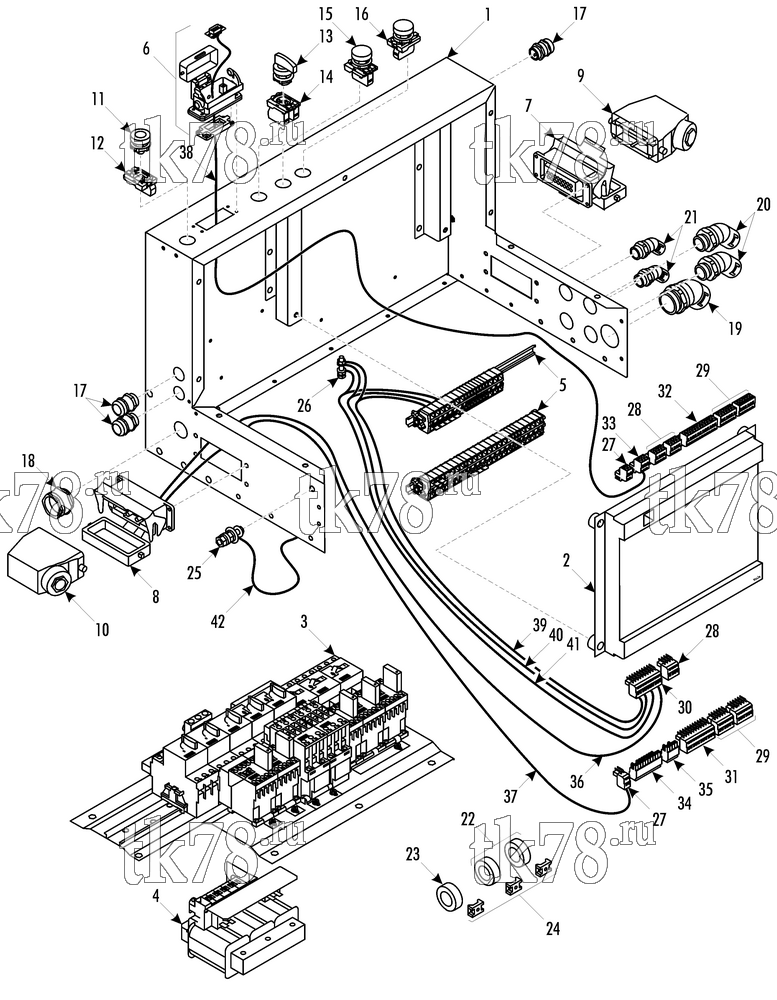

Установкa Thermo King LRV-8T VR3 схема CONTROL BOX – 253G5
Обновление от: 11/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANELS - control box (see 253G6) | 1 | |
| 2 | 45-1933 | CONTROLLER - unit | 1 | |
| 55-7700 | SCREW - controller | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT- captive | 4 | ||
| 3 | NSS | SUBPANEL (see 179C3) | 1 | |
| 4 | 41-5140 | TRANSFORMER - 3 phase | 1 | |
| 55-7088 | SCREW - transformer | 3 | ||
| 55-8222 | LOCKWASHER | 3 | ||
| 55-8221 | FLATWASHER | 3 | ||
| 51-190 | NUT- captive | 3 | ||
| 5 | NSS | BLOCK - terminal (see 179C4) | 1 | |
| 6 | 41-3899 | CONNECTOR - assembly | 1 | |
| 41-5028 | HOUSING - connector | 1 | ||
| 92-2467 | PLATE - connector | 1 | ||
| 41-4862 | CONNECTOR (9pin) | 1 | ||
| 55-7863 | SCREW - connector | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-7749 | NUT | 4 | ||
| 7 | 304-2887 | CONNECTOR - assembly (male) | 1 | |
| 41-5141 | HOUSING - connector | 1 | ||
| 41-5142 | TERMINAL - screw | 1 | ||
| 8 | 41-2938 | CONNECTOR - assembly (male) | 1 | |
| 41-5141 | HOUSING - connector | 1 | ||
| 41-3009 | TERMINAL - crimp | 1 | ||
| 55-7664 | SCREW - connector | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-7866 | NUT- captive | 8 | ||
| 9 | 41-5143 | HOOD - connector (female) | 1 | |
| 41-5144 | TERMINAL - screw | 1 | ||
| 41-3007 | SEALING - cable | 1 | ||
| 10 | 41-5143 | HOOD - connector (female) | 1 | |
| 41-3005 | TERMINAL - crimp | 1 | ||
| 41-3007 | SEALING - cable | 1 | ||
| 41-3008 | CONTACTS | 16 | ||
| 11 | 41-4686 | HEAD - control | 1 | |
| 12 | 41-4688 | SWITCH - assembly | 1 | |
| 13 | 41-4687 | HEAD - control | 1 | |
| 14 | 41-4689 | SWITCH - assembly | 1 | |
| 15 | 41-4690 | LIGHT- signal, red | 1 | |
| 16 | 41-4691 | LIGHT- signal, green | 1 | |
| 17 | 55-9995 | BUSHING - cable | 3 | |
| 51-355 | WASHER - sealing | 3 | ||
| 55-9993 | LOCKNUT | 3 | ||
| 18 | 55-9996 | BUSHING - cable | 1 | |
| 51-558 | WASHER - sealing | 1 | ||
| 51-560 | LOCKNUT | 1 | ||
| 19 | 51-699 | BUSHING - cable | 1 | |
| 51-558 | WASHER - sealing | 1 | ||
| 55-9561 | LOCKNUT | 1 | ||
| 20 | 51-138 | BUSHING - cable | 2 | |
| 51-356 | WASHER - sealing | 2 | ||
| 55-9999 | LOCKNUT | 2 | ||
| 21 | 55-9989 | BUSHING - cable | 2 | |
| 51-355 | WASHER - sealing | 2 | ||
| 55-9559 | LOCKNUT | 2 | ||
| 22 | 304-2593 | TRANSFORMER - current (15amp) | 2 | |
| 23 | 304-2594 | TRANSFORMER - current (75amp) | 1 | |
| 24 | 99-3281 | MOUNT - bandwrap | 12 | |
| 51-2030 | RIVET | 12 | ||
| 56-2330 | BANDWRAP | 12 | ||
| 25 | 305-1654 | SCREW - ground | 1 | |
| 55-7621 | LOCKWASHER - internal tooth | 3 | ||
| 55-8955 | FLATWASHER | 5 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 51-103 | NUT - brass | 2 | ||
| 26 | 55-7372 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7354 | NUT - brass | 4 | ||
| 27 | 41-3928 | CONNECTOR - 2pin | 2 | |
| 28 | 41-3929 | CONNECTOR - 4pin | 3 | |
| 29 | 41-3930 | CONNECTOR - 6pin | 4 | |
| 30 | 41-3931 | CONNECTOR - 10pin | 1 | |
| 31 | 41-3932 | CONNECTOR - 11pin | 1 | |
| 32 | 41-3933 | CONNECTOR - 12pin | 1 | |
| 33 | 41-3934 | CONNECTOR - 3pin | 1 | |
| 34 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 35 | 41-3935 | CONNECTOR - 4pin | 1 | |
| 36 | 42-275 | HARNESS - setpoint , twist | 1 | |
| 37 | 41-5146 | CABLE - analog output | 1 | |
| 38 | 41-5147 | CABLE - communication | 1 | |
| 39 | 41-5148 | CABLE - temperature sensor, return air | 1 | |
| 40 | 41-5149 | CABLE - temperature sensor, fresh air | 1 | |
| 41 | 41-5150 | CABLE - temperature sensor, duct air | 1 | |
| 42 | 41-5151 | WIRE - electrobox grounding | 1 |
