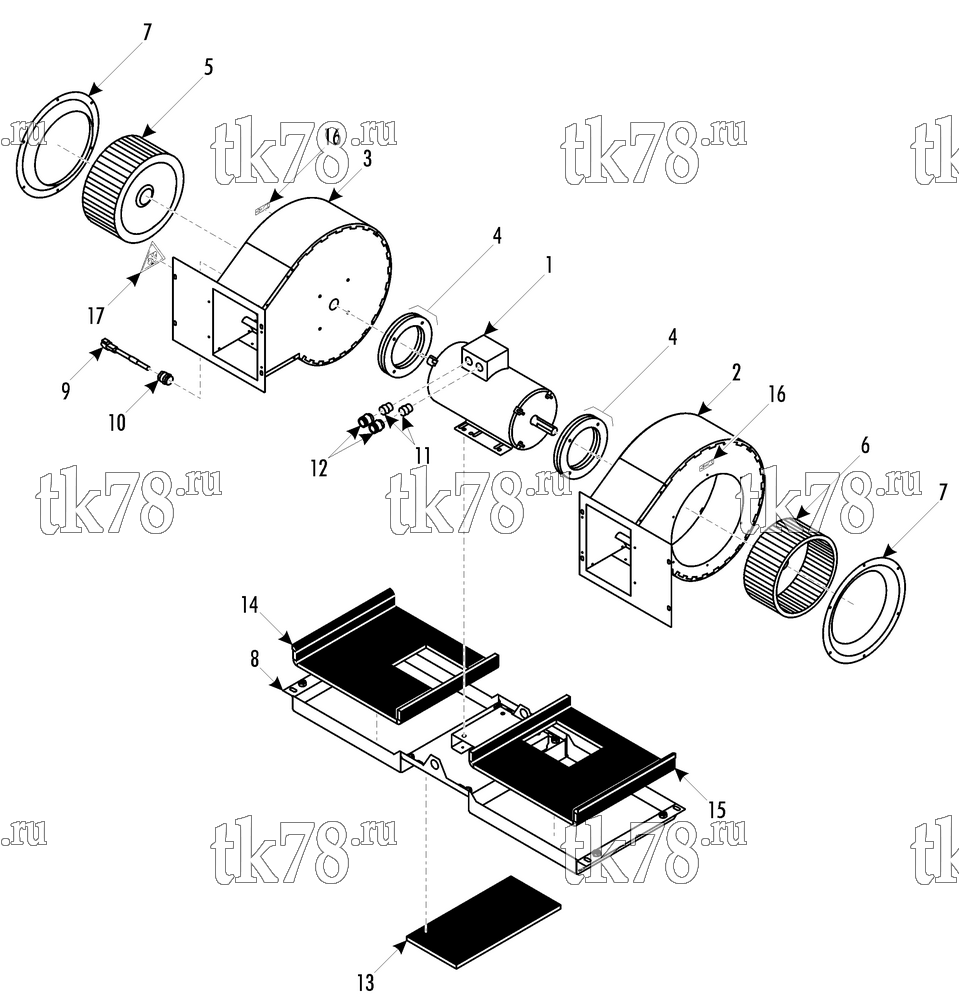

Установкa Thermo King LRV-8T VR3 схема EVAPORATOR BLOWER GROUP – 253G4
Обновление от: 11/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-701 | MOTOR - blower | 1 | |
| 55-7691 | SCREW - motor | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 2 | 78-1725 | HOUSING - blower | 1 | |
| 3 | 78-1726 | HOUSING - blower | 1 | |
| 55-6994 | SCREW - housing to unit frame | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 55-7367 | NUT - housing to motor | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 4 | 78-1309 | RING | 6 | |
| 5 | 78-1324 | WHEEL - ccw | 1 | |
| 6 | 78-1327 | WHEEL - cw | 1 | |
| 7 | 78-1386 | RING - inlet | 2 | |
| 55-7067 | SCREW - ring | 12 | ||
| 8 | 98-8846 | SUPPORT - blower | 1 | |
| 55-7825 | NUT | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7085 | FLATWASHER | 8 | ||
| 9 | 41-7513 | SENSOR - temperature | 1 | |
| 10 | 55-9554 | BUSHING - cable | 1 | |
| 55-9558 | LOCKNUT | 1 | ||
| 11 | 51-2028 | BUSHING - cable | 2 | |
| 55-9559 | LOCKNUT | 2 | ||
| 12 | 55-9555 | BUSHING - cable | 2 | |
| 13 | 92-4252 | INSULATION | 1 | |
| 14 | 92-9383 | INSULATION | 1 | |
| 15 | 92-9384 | INSULATION | 1 | |
| 16 | 99-4931 | NAMEPLATE - arrow | 2 | |
| 17 | 99-9234 | NAMEPLATE - fan | 1 |
