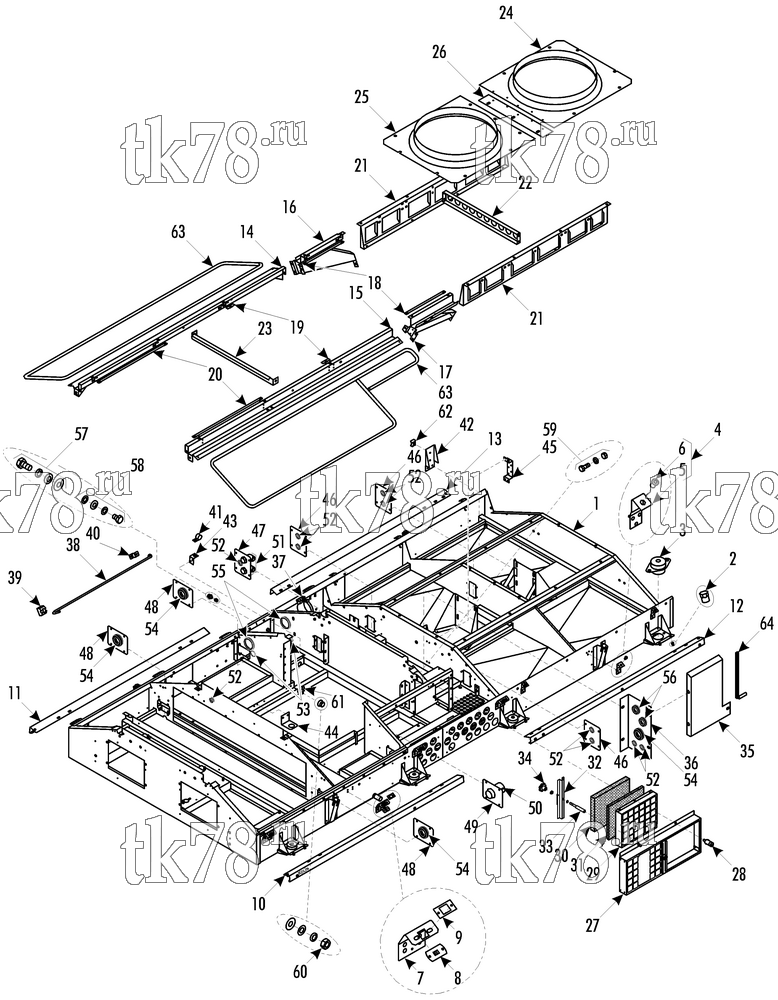

Установкa Thermo King LRV-8T VR3 схема FRAME & COMPONENTS – 253G3
Обновление от: 11/10/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6967 | FRAME | 1 | |
| 2 | 55-7373 | NUT - captive | A/R | |
| 3 | 309-1963 | ISOLATOR - frame | 8 | |
| 55-6993 | SCREW - isolator | 16 | ||
| 51-953 | FLATWASHER | 32 | ||
| 55-7066 | LOCKWASHER | 16 | ||
| 55-7825 | NUT | 16 | ||
| 4 | 92-2239 | BRACKET - lock | 6 | |
| 5 | 92-809 | BRACKET - lock | 1 | |
| 6 | 55-8835 | NUT - captive | 1 | |
| 55-3010 | RIVET - bracket | A/R | ||
| 7 | 92-2873 | BRACKET - lock | 8 | |
| 55-5130 | RIVET - bracket | A/R | ||
| 8 | 55-2074 | NUT - special | 8 | |
| 9 | 91-7625 | PLATE - lock | 8 | |
| 55-3010 | RIVET - plate & nut | A/R | ||
| 10 | 98-6746 | BRACKET - lock, front | 1 | |
| 11 | 98-6747 | BRACKET - lock, front | 1 | |
| 12 | 92-8562 | BRACKET - lock, back | 1 | |
| 13 | 92-8563 | BRACKET - lock, back | 1 | |
| 55-8835 | NUT - captive (brass) | 12 | ||
| 55-7373 | NUT - captive | 4 | ||
| 55-6994 | SCREW - brackets | 16 | ||
| 55-6996 | LOCKWASHER | 16 | ||
| 55-8893 | FLATWASHER | 16 | ||
| 14 | 98-6968 | BEAM | 1 | |
| 15 | 98-6969 | BEAM | 1 | |
| 55-7691 | SCREW - beam (M8) | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 55-6994 | SCREW - beam (M6) | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9814 | NUT - captive | 4 | ||
| 16 | 92-3831 | STRUT | 1 | |
| 17 | 92-3832 | STRUT | 1 | |
| 55-6993 | SCREW - strut | 10 | ||
| 55-7066 | LOCKWASHER | 10 | ||
| 55-7085 | FLATWASHER | 10 | ||
| 55-8403 | NUT - captive | 6 | ||
| 51-1589 | NUT - captive | 4 | ||
| 18 | 92-6115 | BAR - nut | 2 | |
| 19 | 92-6117 | BAR - nut | 2 | |
| 20 | 92-6116 | BAR - nut | 2 | |
| 21 | 98-6859 | BRACKET - cover | 2 | |
| 55-7035 | SCREW - bracket | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 22 | 92-2602 | BRACKET - cover | 1 | |
| 23 | 92-2210 | BRACKET - cover | 1 | |
| 55-6994 | SCREW - brackets | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-9814 | NUT - captive | 2 | ||
| 55-7373 | NUT - captive | 4 | ||
| 24 | 98-6860 | RING - fan | 1 | |
| 25 | 98-6861 | RING - fan | 1 | |
| 55-7035 | SCREW - ring | 7 | ||
| 55-3045 | LOCKWASHER - dome | 7 | ||
| 55-7373 | NUT - captive | 7 | ||
| 26 | 92-3833 | BRACKET - ring | 1 | |
| 55-5047 | RIVET - bracket | A/R | ||
| 55-7697 | FLATWASHER | A/R | ||
| 27 | 92-4982 | FRAME - filter | 1 | |
| 28 | 55-9758 | SCREW - captive | 2 | |
| 29 | 92-4983 | FRAME - filter | 2 | |
| 30 | 92-4984 | FILTER | 2 | |
| 31 | 92-4985 | FILTER | 2 | |
| 32 | 92-4986 | STRUT | 1 | |
| 33 | 51-1209 | SCREW | 1 | |
| 51-1210 | RING - snap | 1 | ||
| 51-1211 | NUT | 1 | ||
| 34 | 92-4987 | GRIP - star | 1 | |
| 35 | 92-4245 | SHIELD | 1 | |
| 36 | 92-9379 | COVER - shield | 1 | |
| 55-6994 | SCREW - shield & cover | 5 | ||
| 55-7170 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-8893 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 3 | ||
| 37 | 55-7799 | CLAMP - dehydrator | 1 | |
| 38 | 92-2888 | SUPPORT - cover | 2 | |
| 55-5601 | PIN - cotter | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 39 | 91-7386 | CLAMP - support cover | 2 | |
| 40 | 92-5548 | HOLDER - support cover | 2 | |
| 55-5130 | RIVET - clamp | A/R | ||
| 41 | 55-3026 | CLAMP - tube | 2 | |
| 55-7172 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 42 | 309-3443 | BRACKET - harness | 4 | |
| 43 | 92-803 | BRACKET - clamp tube | 2 | |
| 44 | 92-1402 | BRACKET - sensor | 1 | |
| 45 | 309-3452 | BRACKET - harness | 1 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 46 | 92-4247 | COVER - shield | 3 | |
| 47 | 92-4248 | COVER - shield | 1 | |
| 48 | 92-4249 | COVER - shield | 3 | |
| 49 | 92-9380 | COVER - shield | 1 | |
| 55-5130 | RIVET - covers | A/R | ||
| 50 | 51-559 | BUSHING - cable | 1 | |
| 51-560 | LOCKNUT - bushing | 1 | ||
| 51 | 55-9989 | BUSHING - cable | 2 | |
| 55-9559 | LOCKNUT - bushing | 2 | ||
| 52 | 33-415 | GROMMET (5/8 id) | 10 | |
| 53 | 33-2440 | GROMMET (1 1/8 id) | 2 | |
| 54 | 33-1770 | GROMMET (1 1/5 id) | 4 | |
| 55 | 33-930 | GROMMET (2 1/8 id) | 2 | |
| 56 | 33-489 | GROMMET (1 1/4 id) | 2 | |
| 57 | 55-7412 | SCREW - ground | 1 | |
| 55-7000 | LOCKWASHER | 1 | ||
| 55-7357 | FLATWASHER | 1 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 58 | 51-351 | SCREW - ground | 1 | |
| 55-7621 | LOCKWASHER - internal tooth | 1 | ||
| 55-8955 | FLATWASHER - brass | 1 | ||
| 55-3238 | LOCKWASHER | 1 | ||
| 59 | 55-7172 | SCREW - ground | 2 | |
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 60 | 55-7348 | NUT - ground | 1 | |
| 55-7000 | LOCKWASHER | 1 | ||
| 55-7357 | FLATWASHER | 1 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 61 | 92-783 | LABEL - ground | 4 | |
| 62 | 99-3281 | MOUNT - bandwrap | A/R | |
| 51-2030 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | 1 | ||
| 63 | 92-3105 | GASKET - molded | A/R | |
| 64 | 92-3279 | RUBBER - profile | A/R |
