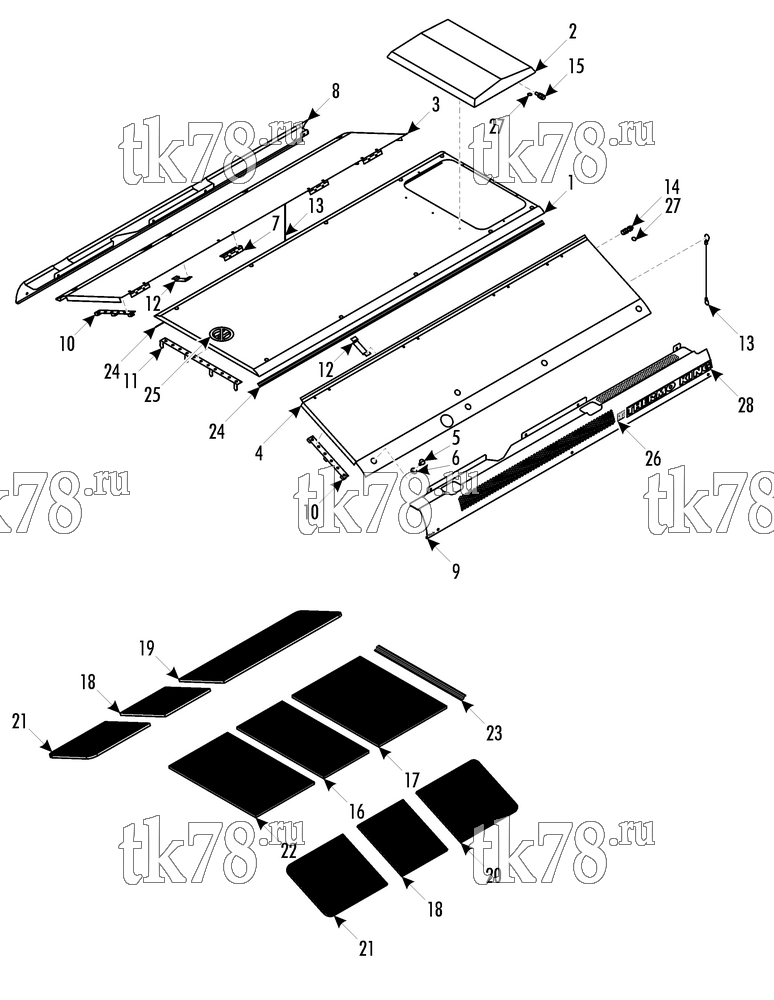

Установкa Thermo King LRV-8T VR3 схема EVAPORATOR COVERS – 253G2
Обновление от: 11/1/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7994 | COVER - centre | 1 | |
| 55-9368 | SCREW - cover | 10 | ||
| 51-871 | WASHER | 10 | ||
| 2 | 98-7719 | COVER - compressor | 1 | |
| 55-2260 | RIVET - cover compressor | 8 | ||
| 3 | 98-6965 | COVER - left | 1 | |
| 4 | 98-6966 | COVER - right | 1 | |
| 51-689 | SCREW - cover to hinge | 16 | ||
| 51-871 | WASHER | 16 | ||
| 5 | 55-2782 | SCREW - captive (quick turn) | 8 | |
| 6 | 55-7112 | WASHER - special | 8 | |
| 7 | 92-1403 | HINGE - cover | 8 | |
| 55-6994 | SCREW - hinge to frame | 16 | ||
| 55-8893 | FLATWASHER | 32 | ||
| 55-6996 | LOCKWASHER | 16 | ||
| 55-7354 | NUT | 16 | ||
| 8 | 98-6606 | COVER - side, left | 1 | |
| 9 | 98-6750 | COVER - side, right | 1 | |
| 55-6994 | SCREW - cover to frame | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9368 | SCREW - cover to frame | 6 | ||
| 51-871 | WASHER | 6 | ||
| 10 | 92-3375 | BRACKET - insulation | 14 | |
| 11 | 33-3290 | BRACKET - insulation | 6 | |
| 12 | 92-2598 | BRACKET - limit switch | 2 | |
| 13 | 92-2872 | CORD - cover | 2 | |
| 55-7169 | SCREW - cord | 4 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 14 | 55-7372 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7354 | NUT | 4 | ||
| 15 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 557170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 16 | 33-3291 | INSULATION | 1 | |
| 17 | 92-2213 | INSULATION | 1 | |
| 18 | 92-3376 | INSULATION | 2 | |
| 19 | 92-3379 | INSULATION | 1 | |
| 20 | 92-3380 | INSULATION | 1 | |
| 21 | 92-4230 | INSULATION | 2 | |
| 22 | 92-2218 | INSULATION | 1 | |
| 23 | 33-2420 | STRIP - neoprene | A/R | |
| 24 | 99-7336 | STRIP - neoprene | A/R | |
| 25 | 92-3767 | LABEL - no step | 1 | |
| 26 | 91-3247 | NAMEPLATE - TK logo | 2 | |
| 27 | 92-783 | LABEL - ground | 4 | |
| 28 | 99-7029 | NAMEPLATE - Thermo King | 2 |
