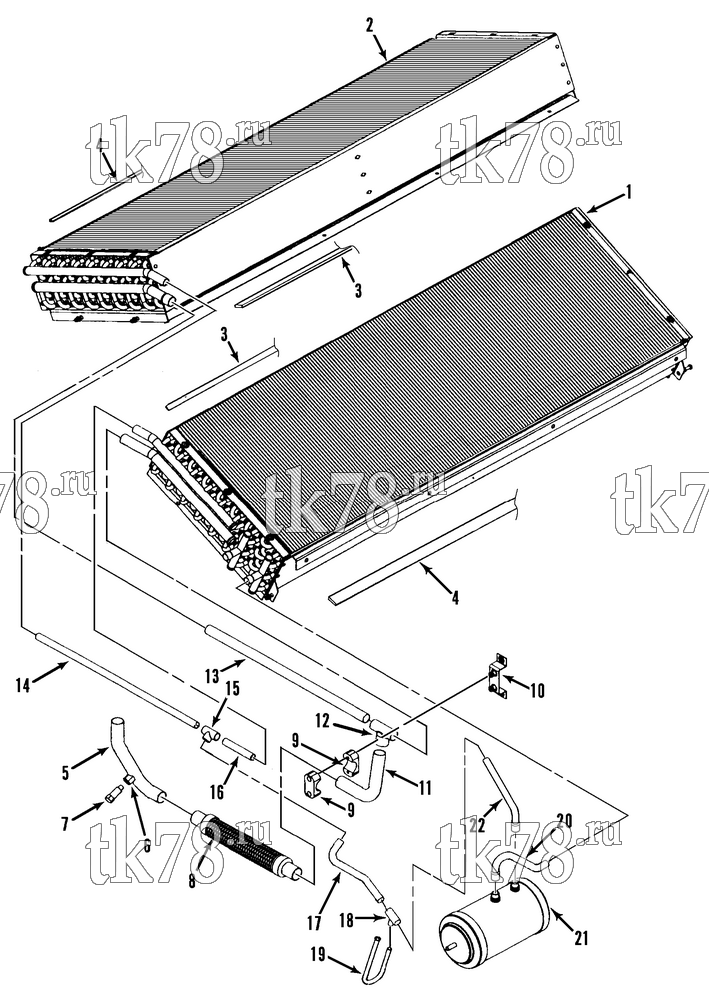

Установкa Thermo King LRV-8T SLC схема REFRIGERATION CONDENSER – 162E7
Обновление от: 10/13/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1703 | COIL - condenser (right) | 1 | |
| 2 | 67-1704 | COIL - condenser (left) | 1 | |
| 55-8835 | INSERT - threaded (6 per coil) | 12 | ||
| 55-6994 | SCREW - coil | 22 | ||
| 55-6996 | LOCKWASHER | 22 | ||
| 55-2086 | FLATWASHER | 22 | ||
| 3 | 33-2668 | STRIP - coil (12 mm wide, cut to 620 mm) | A/R | |
| 4 | 99-5966 | STRIP - coil (24.5 mm wide, cut to 1270 mm) | 2 | |
| 5 | 61-517 | TUBE - compressor discharge to vibrasorber | 1 | |
| 6 | 61-549 | FITTING - saddle | 1 | |
| 7 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 8 | 306-1397 | VIBRASORBER | 1 | |
| 9 | 91-2473 | CLAMP - discharge tube | 2 | |
| 305-1652 | SCREW - clamp | 2 | ||
| 10 | 92-780 | HOLDER - clamp | 1 | |
| 55-9567 | NUT - captive | 4 | ||
| 11 | 61-512 | TUBE - vibrasorber to tee | 1 | |
| 12 | 55-6508 | TEE | 1 | |
| 13 | 61-516 | TUBE - tee to coil | 1 | |
| 14 | 61-515 | TUBE - coil to tee | 1 | |
| 15 | 55-904 | TEE | 1 | |
| 16 | 61-514 | TUBE - coil to tee | 1 | |
| 17 | 61-518 | TUBE - tee to tee | 1 | |
| 18 | 55-6507 | TEE | 1 | |
| 19 | 306-1870 | TUBE - process | 1 | |
| 20 | 61-513 | TUBE - receiver outlet | 1 | |
| 21 | 67-1062 | TANK - receiver | 1 | |
| 55-2640 | NUT - tank | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 22 | 61-519 | TUBE - receiver inlet | 1 |
