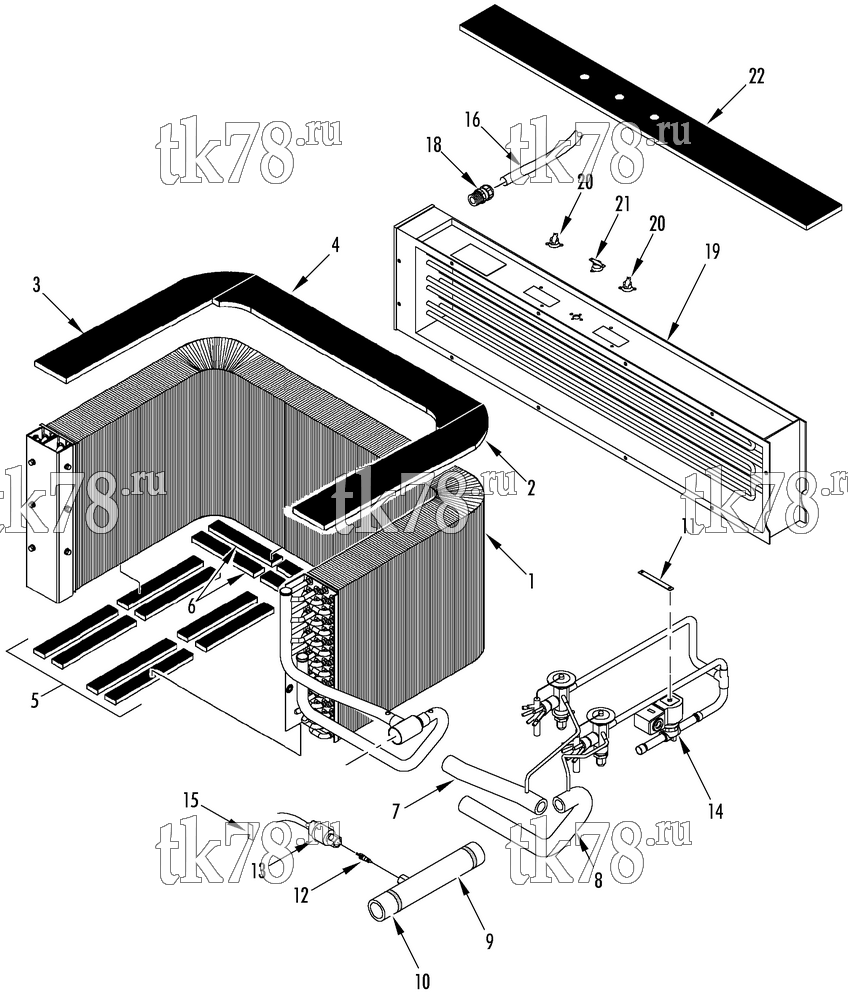

Установкa Thermo King LRV-8T HSA схема EVAPORATOR COIL MOUNTING – 167D8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1767 | COIL - evaporator | 1 | |
| 55-6994 | SCREW - coil | 14 | ||
| 55-6996 | LOCKWASHER | 14 | ||
| 55-7075 | FLATWASHER | 14 | ||
| 55-8835 | NUT - captive | 14 | ||
| 2 | 303-809 | INSULATION - expansion valve side | 1 | |
| 3 | 303-810 | INSULATION - coil | 1 | |
| 4 | 303-811 | INSULATION - center | 1 | |
| 5 | 303-812 | INSULATION - bottom | 8 | |
| 6 | 303-813 | INSULATION - bottom | 4 | |
| 7 | 33-3419 | INSULATION - suction tube | 1 | |
| 8 | 33-3420 | INSULATION - suction tube | 1 | |
| 9 | 33-3421 | INSULATION - suction tube | 1 | |
| 10 | 55-2331 | BANDWRAP - suction insulation | A/R | |
| 11 | 309-3408 | PLATE - safety | 1 | |
| 12 | 11-2886 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 13 | 44-4258 | SWITCH - lpco | 1 | |
| 14 | 309-3216 | NAMEPLATE - Electrical | 1 | |
| 15 | 309-3219 | NAMEPLATE - Electrical | 1 | |
| 16 | 41-4257 | HARNESS - heater (low voltage) | 1 | |
| 17 | Not Used | |||
| 18 | 55-9503 | BUSHING - harness | 1 | |
| 33-3286 | SEAL - bushing | 1 | ||
| 19 | 45-1974 | HEATER - assembly (400V, 12 kW) | 1 | |
| 55-7122 | SCREW - heater | 11 | ||
| 55-6996 | LOCKWASHER | 11 | ||
| 55-7075 | FLATWASHER | 11 | ||
| 55-7070 | NUT - weld | 11 | ||
| 20 | 41-3791 | SWITCH - temperature (90 deg C) | 2 | |
| 21 | 41-3939 | SWITCH - temperature (120 deg) | 1 | |
| 55-9195 | SCREW - switch | 6 | ||
| 55-7750 | LOCKWASHER | 6 | ||
| 22 | 33-3292 | INSULATION - heater | 1 |
