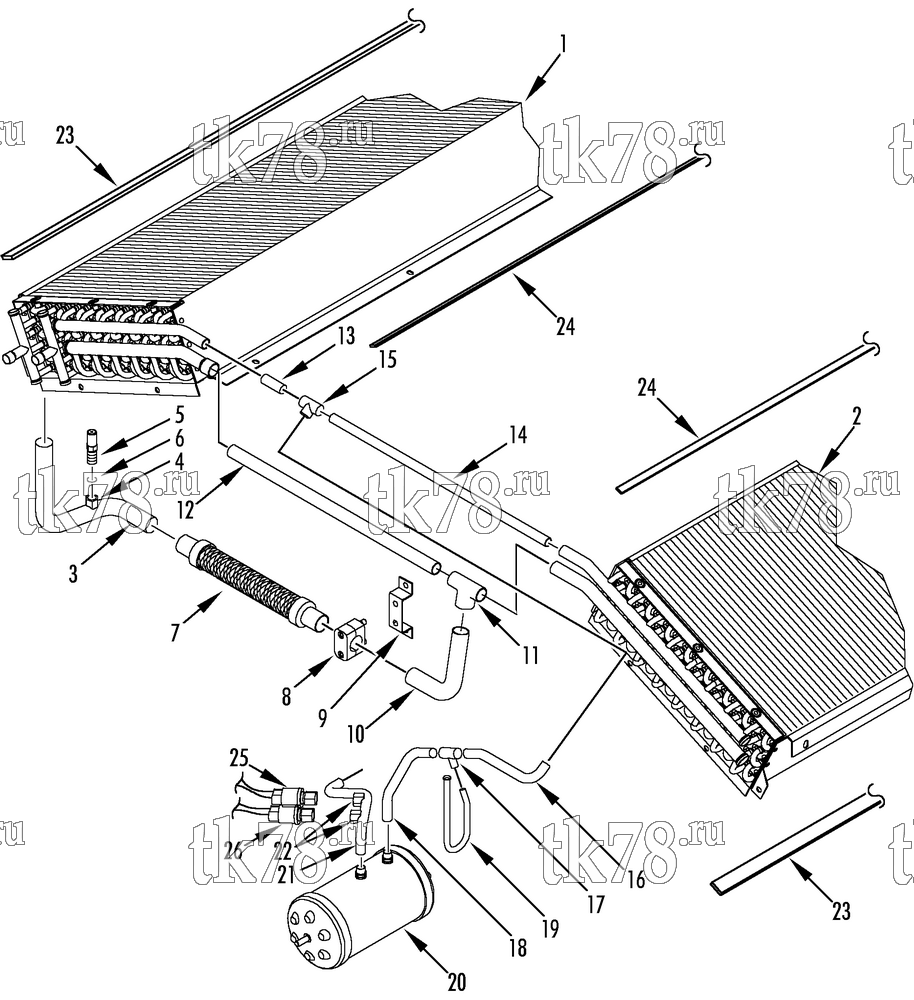

Установкa Thermo King LRV-8T HSA схема REFRIGERATION CONDENSER – 167C0
Обновление от: 12/4/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1765 | COIL - condenser (left) | 1 | |
| 2 | 67-1766 | COIL - condenser (right) | 1 | |
| 305-1652 | SCREW - coil | 20 | ||
| 55-6996 | LOCKWASHER | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 3 | 61-991 | TUBE - compressor to vibrasorber | 1 | |
| 4 | 61-549 | FITTING - saddle | 1 | |
| 5 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 6 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 7 | 306-1397 | VIBRASORBER | 1 | |
| 8 | 91-2473 | CLAMP - tube | 2 | |
| 305-1652 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 9 | 92-780 | HOLDER - clamp | 1 | |
| 10 | 61-992 | TUBE - vibrasorber to tee | 1 | |
| 11 | 55-6508 | TEE (7/8 x 7/8 x 1-1/8) | 1 | |
| 12 | 61-993 | TUBE - tee to coil | 1 | |
| 13 | 61-994 | TUBE - coil to tee (short) | 1 | |
| 14 | 61-995 | TUBE - coil to tee (long) | 1 | |
| 15 | 55-904 | TEE (5/8) | 1 | |
| 16 | 61-996 | TUBE - tee to tee | 1 | |
| 17 | 55-6507 | TEE (5/8 x 5/8 x 3/8) | 1 | |
| 18 | 61-997 | TUBE - tee to tank | 1 | |
| 19 | 61-998 | TUBE - process | 1 | |
| 20 | 67-1062 | TANK - receiver | 1 | |
| 55-2640 | NUT - tank | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-4931 | WASHER - special | 2 | ||
| 21 | 61-999 | TUBE - tank to coil | 1 | |
| 22 | 66-4139 | FITTING - saddle | 2 | |
| 23 | 99-5966 | GASKET - coil (12 mm wide) | 2 | |
| 24 | 33-2668 | GASKET - coil (24 mm wide) | 2 | |
| 25 | 304-1921 | SWITCH - hpco | 1 | |
| 26 | 41-2588 | SWITCH - pressure modulation | 1 |
