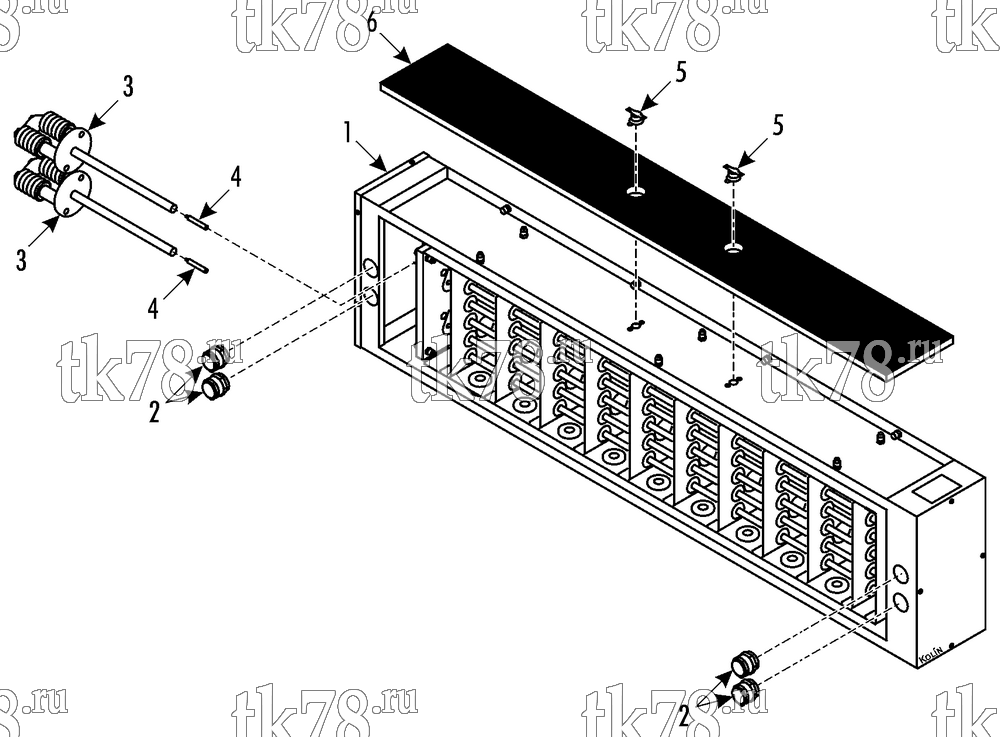

Установкa Thermo King LRV-12T TVS схема HEATER GROUP – 219B1
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 45-2208 | HEATER | 1 |
| 55-6994 | SCREW - heater | 11 | |
| 55-6996 | LOCKWASHER | 11 | |
| 55-8893 | FLATWASHER | 7 | |
| 55-6995 | FLATWASHER | 4 | |
| 2 | 55-9556 | BUSHING - cable | 4 |
| 55-9560 | LOCKNUT | 4 | |
| 3 | 41-7792 | DEVICE - overtemperature | 2 |
| 55-6994 | SCREW - overtemperature device | 4 | |
| 55-6996 | LOCKWASHER | 4 | |
| 55-6995 | FLATWASHER | 4 | |
| 4 | 41-7793 | LINK - fusible | 2 |
| 5 | 41-3791 | SWITCH - temperature | 2 |
| 55-9195 | SCREW - switch | 4 | |
| 55-7750 | LOCKWASHER | 4 | |
| 6 | 92-6261 | INSULATION | 1 |
