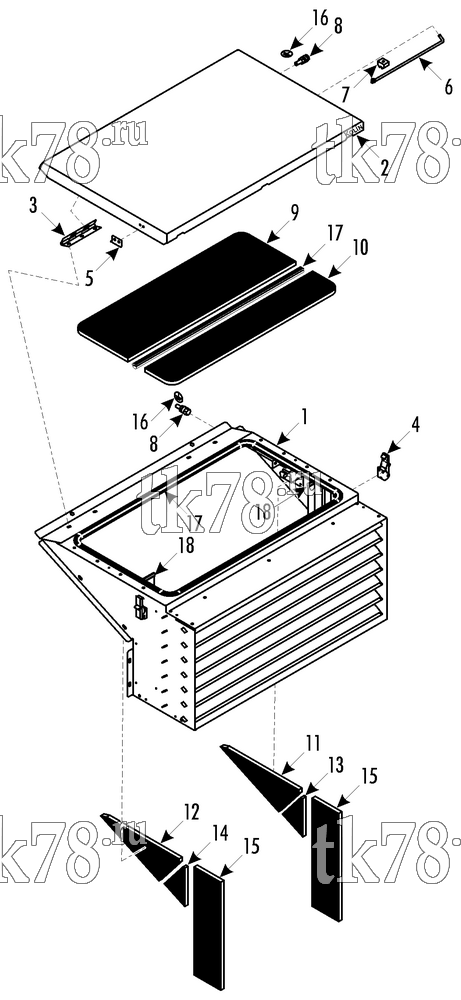

Установкa Thermo King LRV-12T TVS схема AIR DUCT – 219A6
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7795 | DUCT - air | 1 | |
| 55-6994 | SCREW - air duct | 12 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 55-8893 | FLATWASHER | 12 | ||
| 51-189 | SCREW - air duct | 2 | ||
| 51-871 | WASHER | 2 | ||
| 55-9553 | NUT - captive | 2 | ||
| 2 | 98-7796 | COVER | 1 | |
| 51-689 | SCREW - cover to hinge | 4 | ||
| 51-871 | WASHER | 4 | ||
| 3 | 92-3140 | HINGE | 2 | |
| 55-6994 | SCREW - hinge to air duct | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-9553 | NUT - captive | 4 | ||
| 4 | 92-555 | LATCH | 2 | |
| 55-7663 | SCREW - latch | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7866 | NUT - captive | 6 | ||
| 5 | 92-556 | KEEPER | 2 | |
| 55-5130 | RIVET | 4 | ||
| 6 | 92-5885 | SUPPORT - cover | 1 | |
| 55-8893 | FLATWASHER | 1 | ||
| 55-5601 | PIN - cotter | 1 | ||
| 7 | 91-7386 | CLAMP - support cover | 1 | |
| 55-2715 | RIVET | 1 | ||
| 8 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 9 | 92-6243 | INSULATION | 1 | |
| 10 | 92-6244 | INSULATION | 1 | |
| 11 | 92-6245 | INSULATION | 1 | |
| 12 | 92-6246 | INSULATION | 1 | |
| 13 | 92-6247 | INSULATION | 1 | |
| 14 | 92-6248 | INSULATION | 1 | |
| 15 | 92-6249 | INSULATION | 2 | |
| 16 | 92-783 | NAMEPLATE - Ground | 2 | |
| 17 | 92-3105 | GASKET - molded | A/R | |
| 18 | 92-3279 | EXTRUSION - rubber | A/R |
