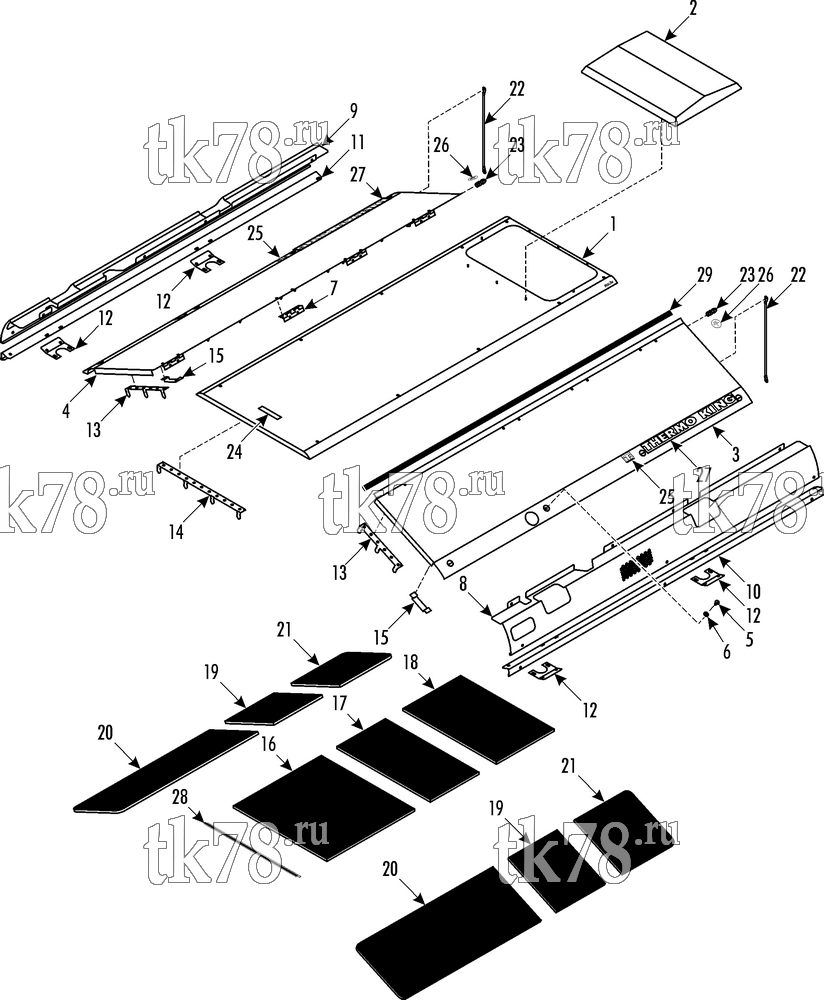

Установкa Thermo King LRV-12T TUN схема EVAPORATOR COVERS – 227E6
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7994 | COVER - center | 1 | |
| 55-9368 | SCREW - cover | 10 | ||
| 51-871 | WASHER | 10 | ||
| 2 | 98-7719 | COVER - compressor | 1 | |
| 55-7035 | SCREW - ground | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 92-783 | LABEL - ground | 2 | ||
| 55-2260 | RIVET - cover | 8 | ||
| 3 | 98-6851 | COVER - evaporator, right | 1 | |
| 4 | 98-6852 | COVER - evaporator, left | 1 | |
| 51-689 | SCREW - covers to hinge | 16 | ||
| 51-871 | WASHER | 16 | ||
| 5 | 55-2782 | SCREW - captive, quick turn | 8 | |
| 6 | 55-7112 | WASHER - special | 8 | |
| 7 | 92-1403 | HINGE - cover | 8 | |
| 55-6994 | SCREW - hinge to frame | 16 | ||
| 55-8893 | FLATWASHER | 32 | ||
| 55-6996 | LOCKWASHER | 16 | ||
| 55-7354 | NUT | 16 | ||
| 8 | 98-7047 | COVER - bottom | 1 | |
| 9 | 98-7048 | COVER - bottom | 1 | |
| 55-6994 | SCREW - cover to frame | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT - captive | 8 | ||
| 55-9368 | SCREW - cover to lock bracket | 6 | ||
| 51-871 | WASHER - sealing | 6 | ||
| 55-8835 | NUT - captive | 6 | ||
| 10 | 98-7051 | BRACKET - lock, front | 1 | |
| 11 | 98-7052 | BRACKET - lock, front | 1 | |
| 55-8835 | NUT - captive (M6) | 2 | ||
| 55-6994 | SCREW - bracket | 10 | ||
| 55-6996 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 55-7373 | NUT - captive | 5 | ||
| 12 | 92-5765 | BRACKET - cover | 4 | |
| 13 | 92-3375 | BRACKET - insulation | 16 | |
| 14 | 33-3290 | BRACKET - insulation | 7 | |
| 15 | 92-2598 | BRACKET - limit switch | 2 | |
| 16 | 92-6779 | INSULATION | 1 | |
| 17 | 33-3291 | INSULATION | 1 | |
| 18 | 92-6780 | INSULATION | 1 | |
| 19 | 92-3376 | INSULATION | 2 | |
| 20 | 92-6781 | INSULATION | 2 | |
| 21 | 92-6782 | INSULATION | 2 | |
| 22 | 92-2466 | CORD - cover | 2 | |
| 55-7169 | SCREW - cord | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-7367 | NUT | 2 | ||
| 23 | 55-7372 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7354 | NUT | 2 | ||
| 24 | 309-3064 | NAMEPLATE - No Step | 1 | |
| 25 | 91-3247 | NAMEPLATE - TK logo | 2 | |
| 26 | 92-783 | LABEL - ground | 2 | |
| 27 | 99-7029 | NAMEPLATE - Thermo King | 2 | |
| 28 | 33-2420 | STRIP - neoprene | A/R | |
| 29 | 99-7336 | STRIP - neoprene | A/R |
