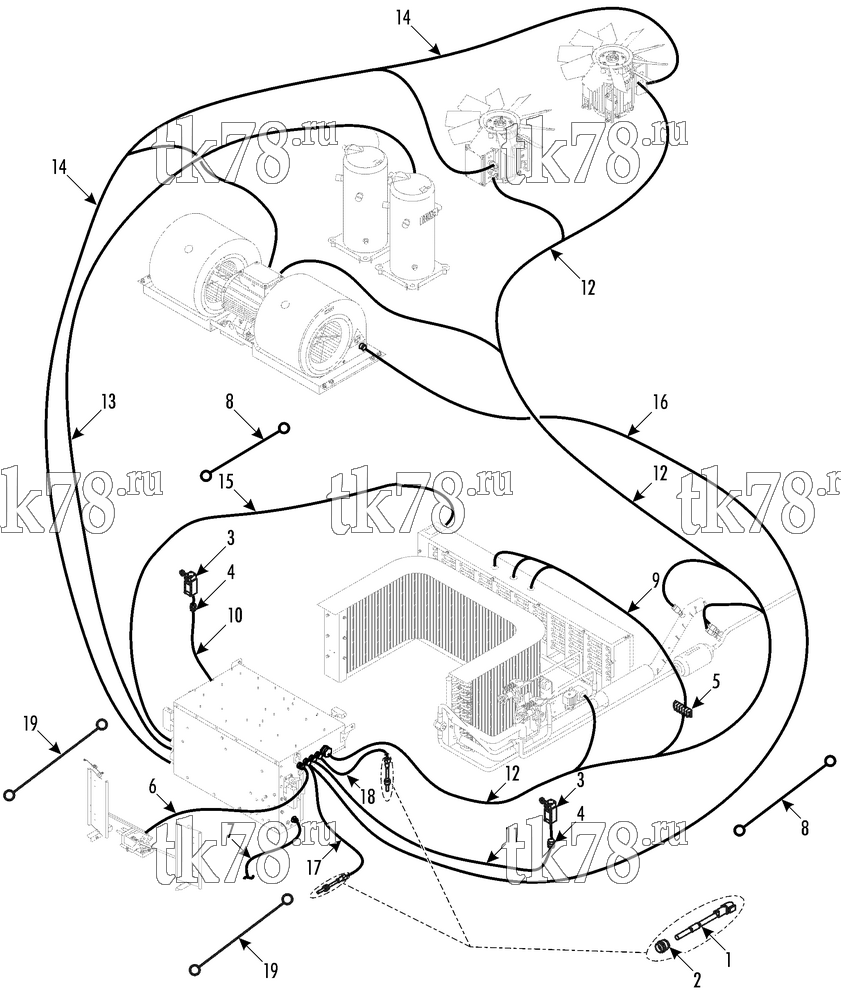

Установкa Thermo King LRV-12T TUN схема ELECTRICAL COMPONENTS – 210D1
Обновление от: 2/6/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7513 | SENSOR - temperature | 2 | |
| 2 | 55-9992 | BUSHING - cable | 2 | |
| 55-9998 | LOCKNUT | 2 | ||
| 3 | 41-3917 | SWITCH - limit | 2 | |
| 55-9566 | SCREW - limit switch | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 4 | 55-9555 | BUSHING - cable | 2 | |
| 5 | 44-5350 | BOARD - terminal | 1 | |
| 55-7696 | SCREW - board | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 6 | 41-6880 | CABLE - fresh air damper (for connectors see 112D9) | 1 | |
| 7 | 41-6027 | WIRE - grounding (outlet) | 1 | |
| 8 | 41-6278 | WIRE - grounding (cover) | 2 | |
| 9 | 41-6004 | HARNESS - heater connection | 1 | |
| 10 | 41-6020 | CABLE - limit switch (left) | 1 | |
| 11 | 41-6021 | CABLE - limit switch (right) | 1 | |
| 12 | 41-6003 | HARNESS - low voltage control (outlet, for connectors see 112D9) | 1 | |
| 13 | 41-6025 | HARNESS - power, compressor | 1 | |
| 14 | 41-6984 | HARNESS - power, fans | 1 | |
| 15 | 41-6985 | HARNESS - power, heater | 1 | |
| 16 | 41-6024 | CABLE - temperature sensor (duct air, for connectors see 112D9) | 1 | |
| 17 | 41-6023 | CABLE - temperature sensor (fresh air, for connectors see 112D9) | 1 | |
| 18 | 41-6022 | CABLE - temperature sensor (return air, for connectors see 112D9) | 1 | |
| 19 | 41-7535 | WIRE - grounding (cover of filter unit) | 2 |
