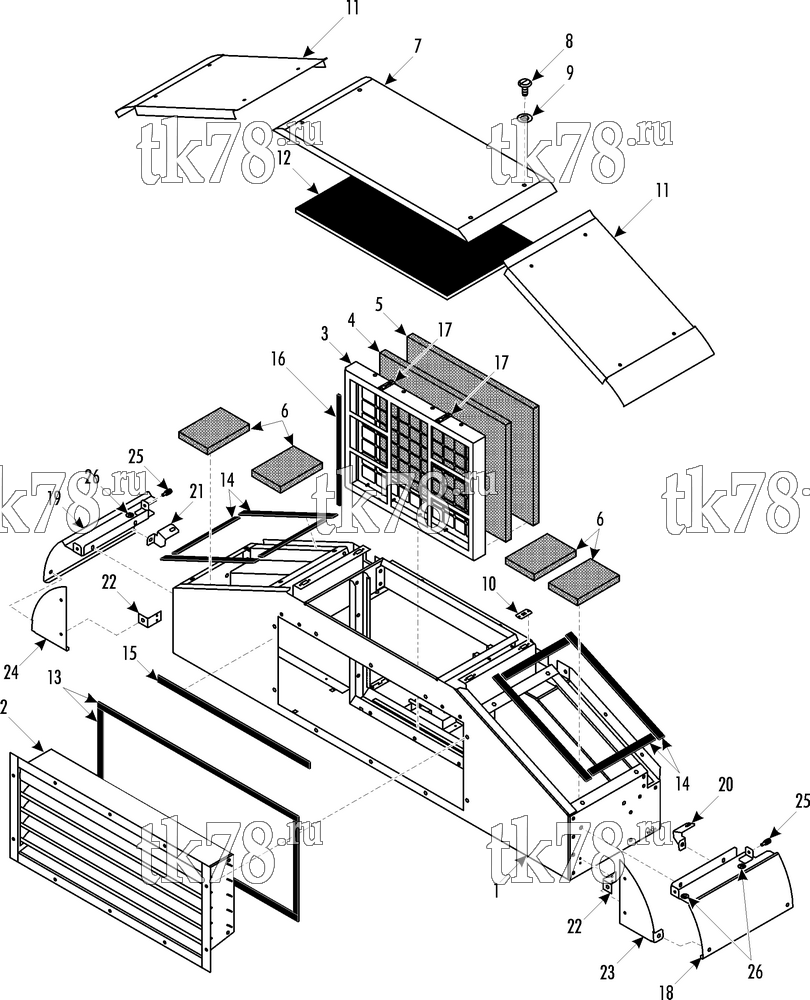

Установкa Thermo King LRV-12T CFD схема FILTER UNIT – 227E9
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6847 | FRAME - filter unit | 1 | |
| 55-6994 | SCREW - filter unit to HVAC unit | 17 | ||
| 51-871 | WASHER - sealing | 17 | ||
| 55-8893 | FLATWASHER | 17 | ||
| 55-9814 | NUT - captive | 4 | ||
| 2 | 98-6848 | ELIMINATOR - water | 1 | |
| 55-6994 | SCREW - eliminator | 10 | ||
| 55-7170 | LOCKWASHER | 10 | ||
| 55-7075 | FLATWASHER | 10 | ||
| 55-9814 | NUT - captive | 10 | ||
| 3 | 92-5206 | FRAME - filter | 1 | |
| 4 | 92-6227 | FILTER - air (master) | 1 | |
| 5 | 92-6230 | FILTER - air (master) | 1 | |
| 6 | 92-2820 | FILTER - air (aux) | 4 | |
| 7 | 98-6582 | ROOF - filter unit | 1 | |
| 8 | 55-2782 | SCREW - roof (quick turn captive) | 4 | |
| 9 | 55-7112 | WASHER - special | 4 | |
| 10 | 55-2074 | NUT - speed | 4 | |
| 55-3010 | RIVET - speed nut | 8 | ||
| 11 | 98-6583 | COVER - side | 2 | |
| 55-8837 | SCREW - cover | 8 | ||
| 51-871 | WASHER - sealing | 8 | ||
| 55-8835 | NUT - captive | 8 | ||
| 12 | 92-6800 | INSULATION | 1 | |
| 13 | 99-7336 | STRIP - neoprene | A/R | |
| 14 | 99-6968 | STRIP - neoprene | A/R | |
| 15 | 99-1908 | STRIP - neoprene | A/R | |
| 16 | 92-3279 | EXTRUSION rubber | A/R | |
| 17 | 99-4931 | NAMEPLATE - arrow | 2 | |
| 18 | 92-6118 | COVER - side, bottom | 1 | |
| 19 | 92-6119 | COVER - side, bottom | 1 | |
| 55-6994 | SCREW - cover | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-9368 | SCREW - cover (becher) | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 55-8835 | NUT - captive | 4 | ||
| 20 | 92-6120 | CLIP - cover | 1 | |
| 21 | 92-6121 | CLIP - cover | 1 | |
| 55-6994 | SCREW - clip | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 22 | 92-6122 | BRACKET | 2 | |
| 55-2260 | RIVET - bracket | 4 | ||
| 23 | 92-6123 | COVER - front | 1 | |
| 24 | 92-6124 | COVER - front | 1 | |
| 55-9368 | SCREW - cover (becher) | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 55-8835 | NUT - captive | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 25 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 26 | 92-783 | LABEL - ground | 4 |
