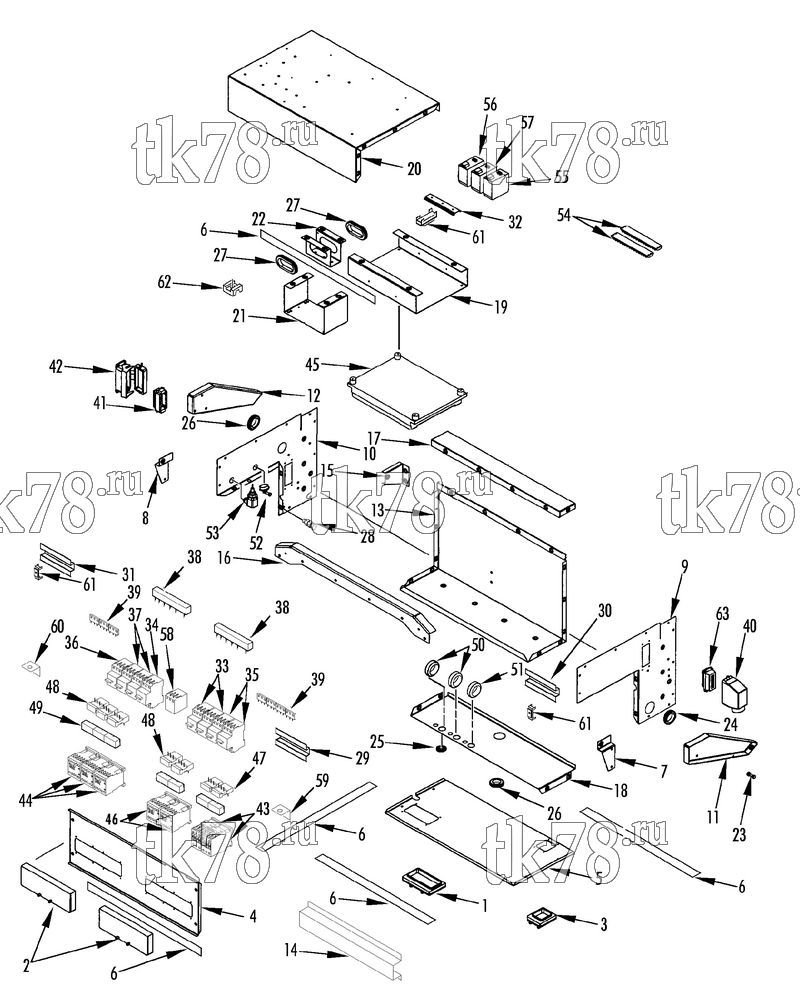

Установкa Thermo King LRV-12T 230V New Orleans схема CONTROL BOX (UNITS w/ HEAT) – 157B4
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 309-3409 | WINDOW - access | 1 | |
| 2 | 309-3410 | WINDOW - access | 2 | |
| 3 | 309-3411 | WINDOW - access | 1 | |
| 4 | 92-159 | COVER - front | 1 | |
| 55-8837 | SCREW - front cover | 6 | ||
| 55-5970 | WASHER - sealing (1/4, ss) | 6 | ||
| 5 | 91-9366 | PANEL - bottom | 1 | |
| 91-9960 | PANEL - bottom (after 8/99) | 1 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 7 | 91-9367 | BRACKET - box (before 9/99) | 1 | |
| 91-9957 | BRACKET - box (after 8/99) | 1 | ||
| 8 | 91-9368 | BRACKET - box (before 9/99) | 1 | |
| 91-9956 | BRACKET - box (after 8/99) | 1 | ||
| 9 | 91-9369 | PANEL - right | 1 | |
| 10 | 92-160 | PANEL - left | 1 | |
| 11 | 309-3425 | BRACKET - cap end (right, before 9/99) | 1 | |
| 91-9958 | BRACKET - cap end (after 8/99) | 1 | ||
| 12 | 309-3424 | BRACKET - cap end (left) | 1 | |
| 13 | 98-5684 | PANEL - front | 1 | |
| 14 | 91-161 | MOUNTING - box | 1 | |
| 15 | 309-3419 | BRACKET - box | 1 | |
| 16 | 309-3417 | BEAM - basic (before 8/99) | 1 | |
| 91-9961 | BEAM - basic (after 8/99) | 1 | ||
| 55-7341 | SCREW - beam | 2 | ||
| 55-7621 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7825 | NUT | 2 | ||
| 17 | 309-3434 | COVER - top | 1 | |
| 55-8835 | NUT - captive | 6 | ||
| 18 | 309-3423 | BRACKET - inside | 1 | |
| 19 | 91-9372 | BRACKET - unit control (before 9/99) | 1 | |
| 91-9959 | BRACKET - unit control (after 8/99) | 1 | ||
| 20 | 91-9373 | COVER - back (before 9/99) | 1 | |
| 91-9962 | COVER - back (after 8/99) | 1 | ||
| 21 | 91-9374 | BRACKET - terminal | 1 | |
| 22 | 309-3422 | BRACKET - box (top, before 9/99) | 1 | |
| 23 | 55-6994 | SCREW - panels (M6 x 1) | 67 | |
| 55-7075 | FLATWASHER (M6, ss) | 69 | ||
| 55-6996 | LOCKWASHER (M6, ss) | 67 | ||
| 55-8835 | NUT - captive | 73 | ||
| 24 | 33-994 | GROMMET (1-3/8 id) | 1 | |
| 25 | 33-415 | GROMMET (5/8 id) | 3 | |
| 26 | 33-2440 | GROMMET (1-1/8 id) | 2 | |
| 27 | 33-628 | GROMMET (2-1/8 id) | 2 | |
| 28 | 305-1654 | SCREW - ground | 1 | |
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 305-1653 | NUT | 2 | ||
| 55-8955 | FLATWASHER | 5 | ||
| 55-7621 | LOCKWASHER | 3 | ||
| 29 | 91-9375 | CHANNEL - din rail | 1 | |
| 30 | 92-158 | CHANNEL - din rail | 1 | |
| 31 | 309-3433 | CHANNEL - din rail | 1 | |
| 32 | 309-3415 | CHANNEL - din rail | 1 | |
| 55-7862 | SCREW - channel (10 mm) | 13 | ||
| 55-7696 | SCREW - channel (20 mm) | 16 | ||
| 55-7861 | LOCKWASHER | 25 | ||
| 55-7697 | FLATWASHER | 25 | ||
| 55-8595 | INSERT | 30 | ||
| 33 | 41-3510 | BREAKER - circuit (3 pole) | 2 | |
| 34 | 41-3511 | BREAKER - circuit (3 pole) | 1 | |
| 35 | 41-2936 | BREAKER - circuit (3 pole) | 2 | |
| 36 | 41-3512 | BREAKER - circuit (3 pole) | 2 | |
| 37 | 41-3513 | BREAKER - circuit (3 pole) | 2 | |
| 38 | 41-3514 | BUSBAR | 2 | |
| 39 | 41-2931 | BLOCK - contact (NO) | 7 | |
| 40 | 304-2886 | CONNECTOR (16e, female) | 1 | |
| 41-3007 | SEAL - cable | 1 | ||
| 41 | 304-2887 | CONNECTOR (K4/0, male) | 1 | |
| 42 | 41-2939 | CONNECTOR - K4/0 (female) | 1 | |
| 41-3005 | TERMINAL - crimp | 1 | ||
| 43 | 41-3515 | CONTACTOR | 2 | |
| 44 | 41-2940 | CONTACTOR | 3 | |
| 45 | 41-3417 | CONTROLLER - unit | 1 | |
| 46 | 41-3516 | CONTACTOR | 2 | |
| 47 | 41-2943 | ELEMENT - coupling | 2 | |
| 48 | 41-2944 | ELEMENT - coupling | 5 | |
| 49 | 41-2945 | SUPPRESSOR - module (S0, one per contactor) | 5 | |
| 41-2942 | SUPPRESSOR - module (00, one per contactor) | 5 | ||
| 50 | 304-2593 | TRANSFORMER - current (15 amp, TEFM & TCFM) | 2 | |
| 51 | 304-2594 | TRANSFORMER - current (75 amp, TCOM) | 1 | |
| 52 | 304-2590 | SWITCH - on/off/on | 1 | |
| 53 | 304-2880 | SENSOR - temperature | 1 | |
| 305-1651 | NUT - sensor | 1 | ||
| 54 | 44-4551 | BOARD - terminal (XTB1 & XTB2) | 2 | |
| 55 | 304-2896 | TRANSDUCER (UCFM, 2A) | 1 | |
| 56 | 41-3517 | TRANSDUCER (UCOM, 150MA) | 1 | |
| 57 | 41-3518 | TRANSDUCER (UEFM, 15MA) | 1 | |
| 58 | 41-2946 | TERMINAL - input | 1 | |
| 59 | 91-9376 | BRACKET - right | 1 | |
| 60 | 92-162 | BRACKET (left) | 5 | |
| 61 | 91-6465 | CLAMP - rail | 4 | |
| 62 | 99-3281 | MOUNT - cable tie | 13 | |
| 63 | 304-2885 | CONNECTOR (16e, male) | 1 | |
| 41-3005 | TERMINAL - crimp | 1 | ||
| 41-3008 | CONTACT - crimp | 16 |
