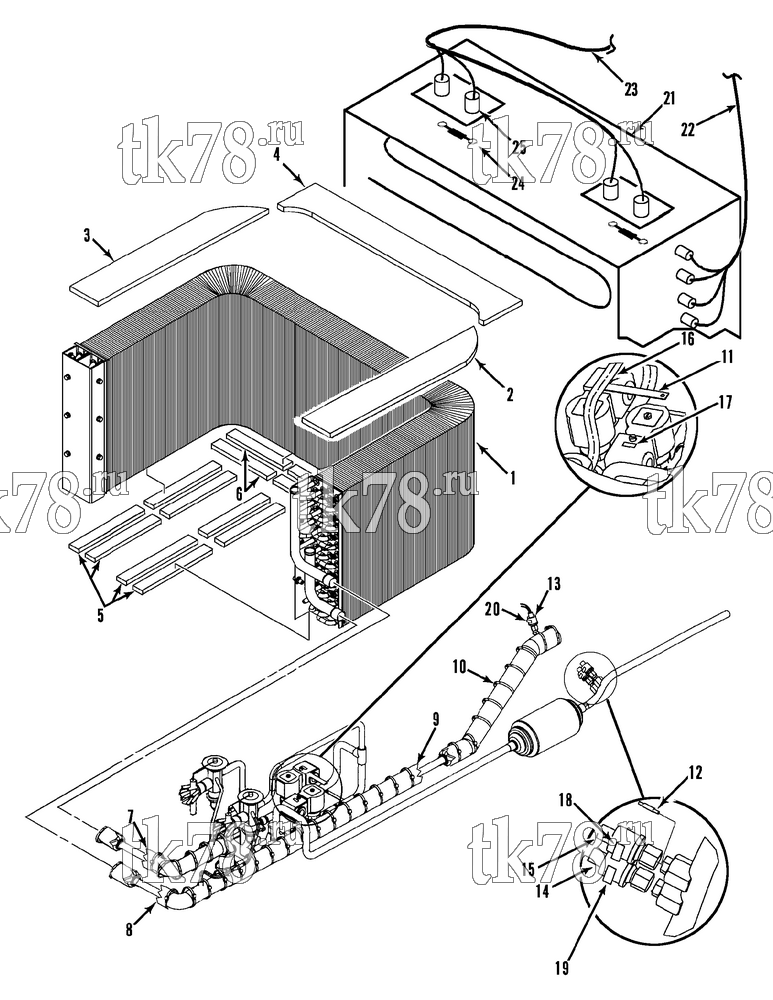

Установкa Thermo King LRV-12-10T VRR Vietnam схема EVAPORATOR COIL MOUNTING – 141G2
Обновление от: 7/20/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 306-1805 | COIL - evaporator (see 142C4) | 1 | |
| 55-6994 | SCREW - coil | 14 | ||
| 55-6996 | LOCKWASHER | 14 | ||
| 55-7075 | FLATWASHER | 14 | ||
| 55-8835 | NUT - captive | 14 | ||
| 2 | 303-809 | INSULATION - expansion valve side | 1 | |
| 3 | 303-810 | INSULATION - opposite side | 1 | |
| 4 | 303-811 | INSULATION - center | 1 | |
| 5 | 303-812 | INSULATION - bottom | 8 | |
| 6 | 303-813 | INSULATION - bottom | 4 | |
| 7 | 303-814 | INSULATION - suction tube | 1 | |
| 8 | 303-815 | INSULATION - suction tube | 1 | |
| 9 | 303-816 | INSULATION - suction tube | 1 | |
| 10 | 55-2331 | BANDWRAP - suction insulation | 41 | |
| 11 | 309-3408 | PLATE - safety | 1 | |
| 12 | 11-2886 | VALVE (Schrader) | 3 | |
| 13 | 44-4258 | SWITCH - only | 1 | |
| 14 | 41-3364 | SWITCH - hpco | 1 | |
| 15 | 41-2588 | SWITCH - pressure modulation | 1 | |
| 16 | 309-3215 | NAMEPLATE - Electrical | 1 | |
| 17 | 309-3216 | NAMEPLATE - Electrical | 1 | |
| 18 | 309-3217 | NAMEPLATE - Electrical | 1 | |
| 19 | 309-3218 | NAMEPLATE - Electrical | 1 | |
| 20 | 309-3219 | NAMEPLATE - Electrical | 1 | |
| 21 | 45-1856 | HEATER - assembly (380V) | 1 | |
| 45-1858 | HEATER - assembly (230V) | 1 | ||
| 45-1911 | HEATER - assembly (400V, 24 kW) | 1 | ||
| 22 | 41-2947 | HARNESS - high voltage | 1 | |
| 23 | 41-2948 | HARNESS - low voltage | 1 | |
| 24 | 41-3010 | LINK - fusible | 2 | |
| 25 | 55-9503 | INSULATOR (ceramic) | 4 |
