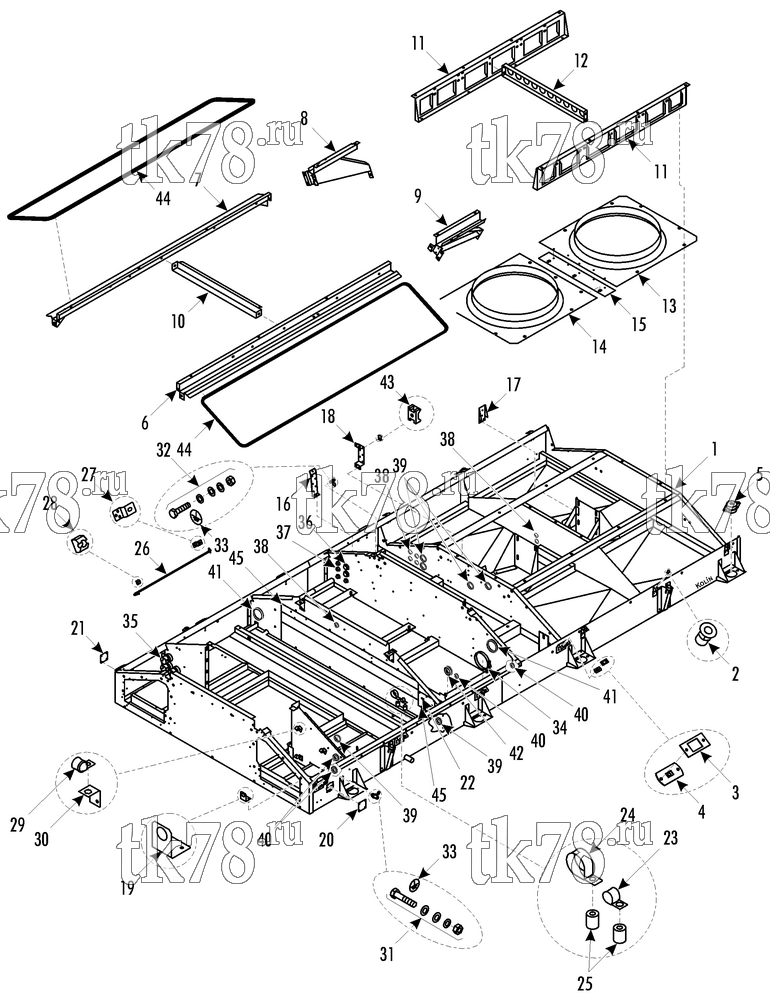

Установкa Thermo King LRV-10T WAU схема FRAME & COMPONENTS – 211D7
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6856 | FRAME | 1 | |
| 2 | 55-8835 | NUT - captive (brass) | 6 | |
| 3 | 91-7625 | PLATE - lock | 8 | |
| 4 | 55-2074 | NUT - special | 8 | |
| 55-3010 | RIVET - lock plate | 16 | ||
| 5 | 309-1963 | ISOLATOR - frame | 8 | |
| 55-6993 | SCREW - isolator | 16 | ||
| 51-953 | FLATWASHER | 32 | ||
| 55-7066 | LOCKWASHER | 16 | ||
| 55-7825 | NUT | 16 | ||
| 6 | 98-6857 | BEAM - right | 1 | |
| 7 | 98-6858 | BEAM - left | 1 | |
| 55-7691 | SCREW - beam (M8) | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-7825 | NUT | 4 | ||
| 55-6994 | SCREW - beam (M6) | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-9553 | NUT - captive | 4 | ||
| 8 | 92-3831 | STRUT | 1 | |
| 9 | 92-3832 | STRUT | 1 | |
| 55-6993 | SCREW - strut | 10 | ||
| 55-7066 | LOCKWASHER | 10 | ||
| 55-7085 | FLATWASHER | 10 | ||
| 51-118 | NUT - captive | 10 | ||
| 10 | 92-2210 | BRACKET - cover | 1 | |
| 11 | 98-6859 | BRACKET - cover | 2 | |
| 12 | 92-2602 | RIB | 1 | |
| 55-6994 | SCREW - brackets & rib | 6 | ||
| 55-7035 | SCREW - brackets & rib | 8 | ||
| 55-6996 | LOCKWASHER | 14 | ||
| 55-8893 | FLATWASHER | 10 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9553 | NUT - captive | 14 | ||
| 13 | 98-6860 | RING - fan | 1 | |
| 14 | 98-6861 | RING - fan | 1 | |
| 55-7035 | SCREW - ring | 7 | ||
| 55-3045 | LOCKWASHER | 7 | ||
| 55-9553 | NUT - captive | 7 | ||
| 15 | 92-3833 | BRACKET - fan ring | 1 | |
| 55-5047 | RIVET | 5 | ||
| 55-7697 | FLATWASHER | 5 | ||
| 16 | 309-3442 | BRACKET - harness | 1 | |
| 17 | 309-3443 | BRACKET - harness | 4 | |
| 18 | 309-3452 | BRACKET - harness | 1 | |
| 19 | 92-1402 | BRACKET - harness | 2 | |
| 55-5130 | RIVET - brackets | A/R | ||
| 20 | 92-2603 | PLATE | 1 | |
| 21 | 92-2604 | PLATE | 1 | |
| 55-3588 | RIVET - plates | A/R | ||
| 22 | 92-808 | WALL - insert, heater | 1 | |
| 55-5130 | RIVET - wall | 1 | ||
| 23 | 55-4203 | CLAMP | 1 | |
| 24 | 55-6031 | CLAMP | 1 | |
| 55-7027 | SCREW - clamp | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-9553 | NUT - captive | 2 | ||
| 25 | 305-1655 | SPACER - clamp | 2 | |
| 26 | 92-2888 | ROD - evaporator covers | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-5601 | PIN - cotter | 2 | ||
| 27 | 92-5548 | HOLDER - rod | 2 | |
| 55-5130 | RIVET - holder | 6 | ||
| 28 | 91-7386 | CLAMP - rod | 2 | |
| 55-5130 | RIVET - clamp | 2 | ||
| 29 | 55-3026 | CLAMP - tube | 3 | |
| 55-7172 | SCREW - clamp | 3 | ||
| 55-6996 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-9553 | NUT - captive | 3 | ||
| 30 | 92-803 | BRACKET - pipe | 3 | |
| 55-5130 | RIVET - bracket | 6 | ||
| 31 | 55-8137 | SCREW - ground | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 32 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 33 | 92-783 | LABEL - ground | 3 | |
| 34 | 55-7799 | CLAMP - dehydrator | 1 | |
| 35 | 51-559 | BUSHING - cable | 3 | |
| 51-558 | WASHER - sealing | 3 | ||
| 51-560 | LOCKNUT | 3 | ||
| 36 | 55-9994 | BUSHING - cable | 2 | |
| 51-356 | WASHER - sealing | 2 | ||
| 55-9999 | LOCKNUT | 2 | ||
| 37 | 51-187 | BUSHING - cable | 4 | |
| 51-692 | WASHER - sealing | 4 | ||
| 51-188 | LOCKNUT | 4 | ||
| 38 | 33-415 | GROMMET (0.625 id) | 7 | |
| 39 | 33-489 | GROMMET (1.25 id) | 6 | |
| 40 | 33-572 | GROMMET (0.750 id) | 4 | |
| 41 | 33-930 | GROMMET (2.125 id) | 2 | |
| 42 | 33-1770 | GROMMET (1.500 id) | 1 | |
| 43 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 44 | 92-3105 | EXTRUSION - rubber | A/R | |
| 45 | 99-2280 | EXTRUSION - rubber | A/R |
