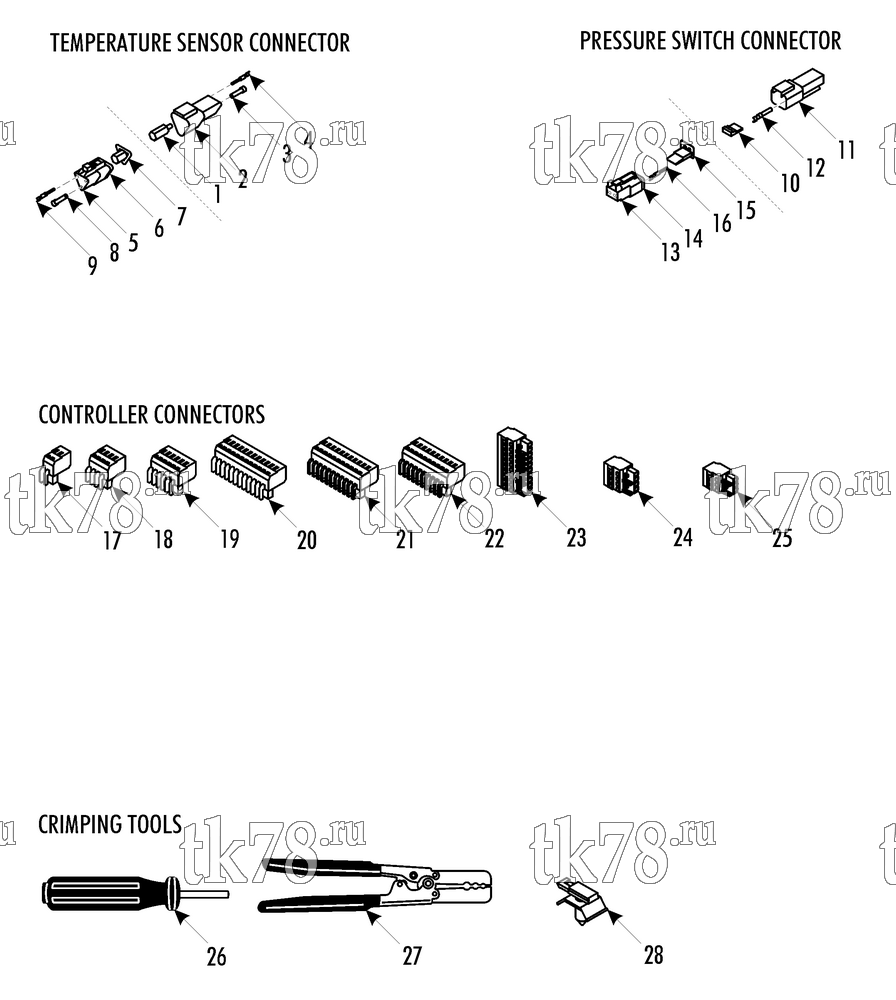

Установкa Thermo King LRV-10T W1 схема CONNECTORS – 254H7
Обновление от: 2/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9545 | WEDGE | 3 | |
| 2 | 44-9544 | RECEPTACLE (3-pin) | 3 | |
| 3 | 44-9602 | PIN - sealing plastic | 3 | |
| 4 | 41-8832 | PIN - gold 18GA | 6 | |
| 5 | 44-9631 | PLUG (3-pin) | 3 | |
| 6 | 33-2393 | SEAL | 1 | |
| 7 | 44-9536 | WEDGE | 3 | |
| 8 | 44-9602 | PIN - sealing plastic | 3 | |
| 9 | 44-8330 | SOCKET - 18GA | 6 | |
| 10 | 44-9590 | WEDGE (hpco) | 1 | |
| 11 | 44-9589 | RECEPTACLE - 2-pin (hpco) | 1 | |
| 66-2377 | PLUG - 2-pin (lpco) | 1 | ||
| 12 | 44-9597 | PIN - 14-16GA (hpco) | 2 | |
| 66-2376 | PIN - RECP (lpco) | 2 | ||
| 13 | 44-9585 | PLUG (2-pin) | 1 | |
| 44-8935 | PLUG (4-pin) | 1 | ||
| 14 | 33-2392 | SEAL | 1 | |
| 15 | 44-9586 | WEDGE - 2-pin plug | 1 | |
| 44-8936 | WEDGE - 4-pin plug | 1 | ||
| 16 | 41-4397 | TERMINAL - wire pin | 6 | |
| 17 | 41-3928 | CONNECTOR | 2 | |
| 18 | 41-3929 | CONNECTOR | 3 | |
| 19 | 41-3933 | CONNECTOR | 1 | |
| 20 | 41-3930 | CONNECTOR | 4 | |
| 21 | 41-3932 | CONNECTOR | 1 | |
| 22 | 41-3931 | CONNECTOR | 1 | |
| 23 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 24 | 41-3935 | CONNECTOR - 4-pin | 1 | |
| 25 | 41-3934 | CONNECTOR | 1 | |
| 26 | 204-623 | TOOL - pin removal | 1 | |
| 27 | 204-624 | TOOL - terminal crimper | 1 | |
| 28 | 55-9704 | CLIP - self-locking | A/R |
