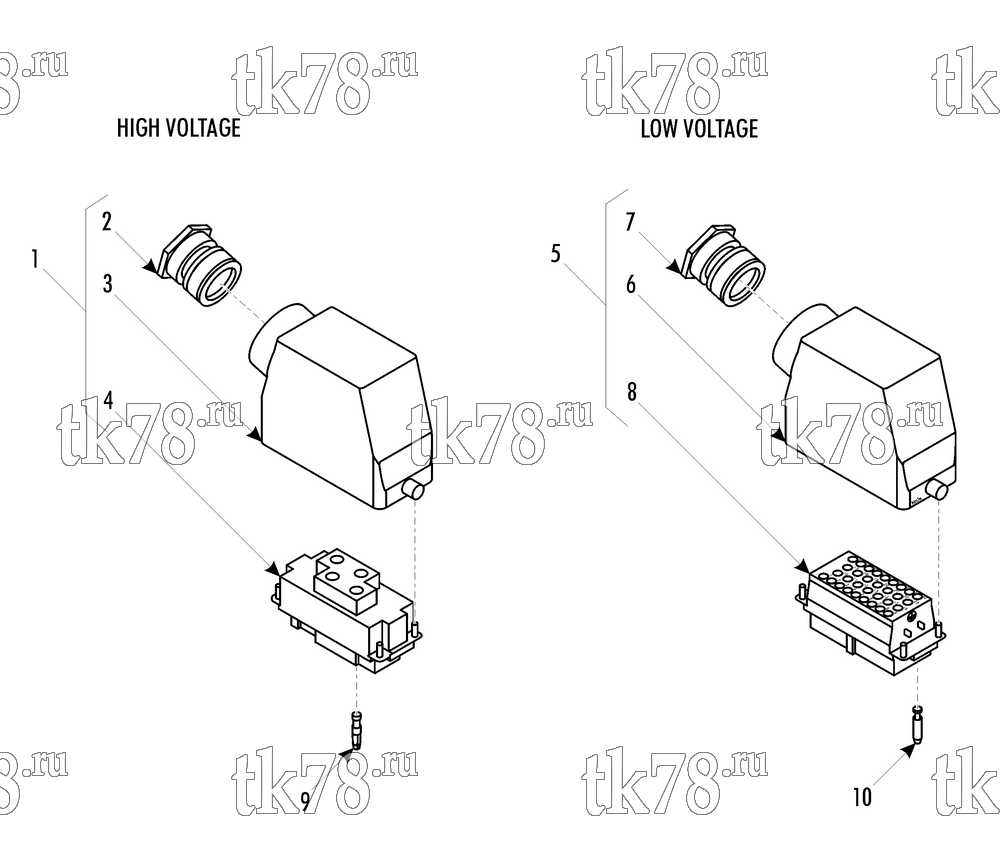

Установкa Thermo King LRV-10T W1 схема MATING CONNECTORS – 254H6
Обновление от: 1/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3915 | CONNECTOR - assy | 1 | |
| 2 | 41-5444 | HOOD - connector | 1 | |
| 3 | 41-5446 | SEALING - cable | 1 | |
| 4 | 41-5144 | INSERT - female | 1 | |
| 5 | 41-3916 | CONNECTOR - assy | 1 | |
| 6 | 41-5444 | HOOD - connector | 1 | |
| 7 | 41-5446 | SEALING - cable | 1 | |
| 8 | 41-5445 | CONNECTOR - 32-pin female | 1 | |
| 9 | 41-7758 | PIN | 3 | |
| 10 | 41-3006 | CONTACTS - crimp | 32 |
