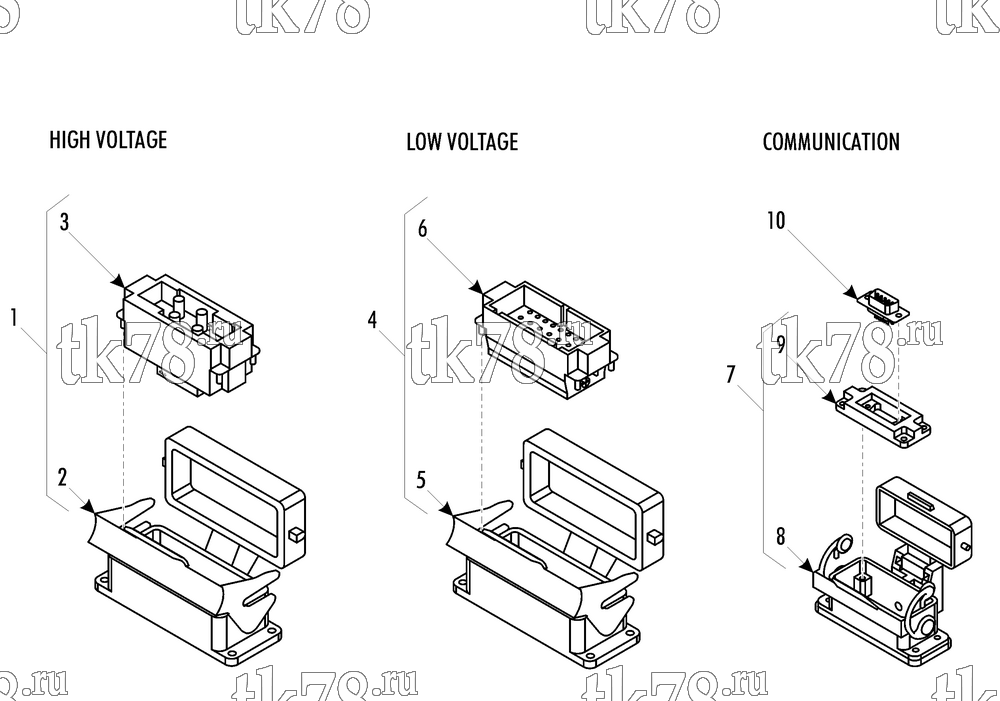

Установкa Thermo King LRV-10T W1 схема MAIN UNIT CONNECTORS – 254H5
Обновление от: 1/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 304-2887 | CONNECTOR - assembly | 1 | |
| 2 | 41-5141 | HOUSING - connector | 1 | |
| 3 | 41-5142 | TERMINAL | 1 | |
| 4 | 41-3898 | CONNECTOR - assembly | 1 | |
| 5 | 41-5141 | HOUSING - connector | 1 | |
| 6 | 41-4288 | CONNECTOR - 32-pin, male | 1 | |
| 41-9918 | CONNECTOR - pin, male | 8 | ||
| 7 | 41-3899 | CONNECTOR - assembly | 1 | |
| 8 | 41-5028 | HOUSING - connector | 1 | |
| 9 | 92-2467 | PLATE - adapter | 1 | |
| 10 | 41-4862 | CONNECTOR - 9-pin | 1 |
