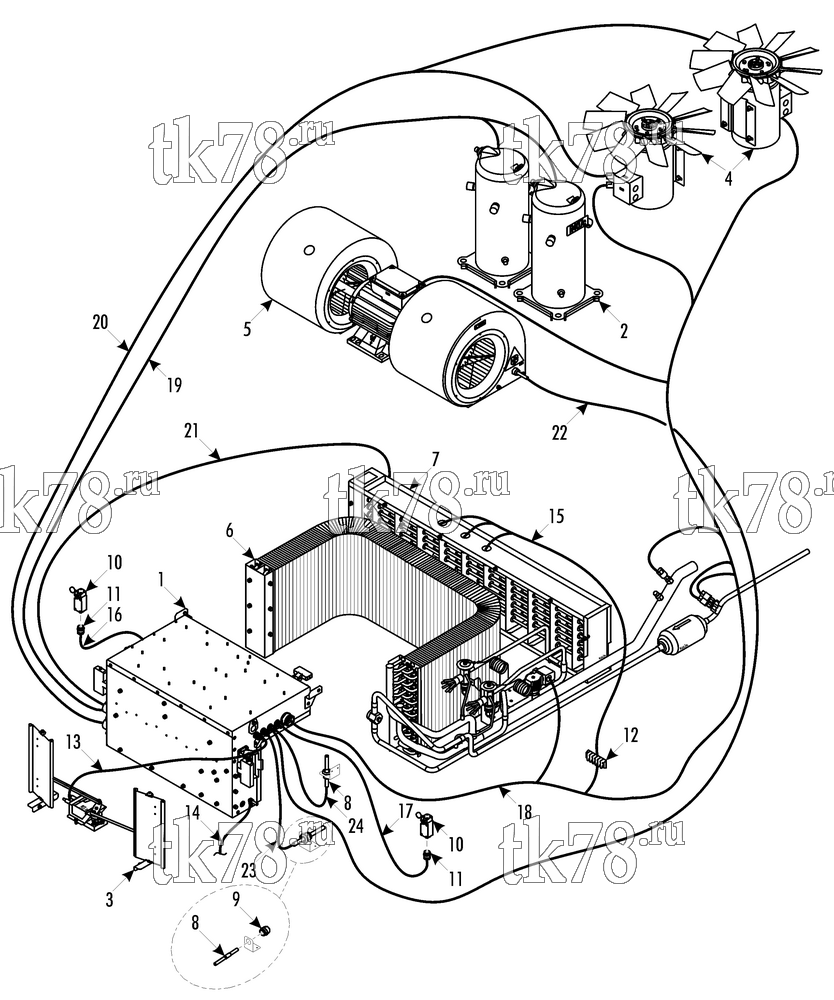

Установкa Thermo King LRV-10T W1 схема ELECTRICAL COMPONENTS – 254G0
Обновление от: 1/26/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX (see 254H1) | 1 | |
| 2 | NSS | COMPRESSOR (see 206H9) | 1 | |
| 3 | NSS | FRESH AIR DAMPER (see 206B8) | 1 | |
| 4 | NSS | FAN (see 206H6) | 1 | |
| 5 | NSS | BLOWER (see 252C4) | 1 | |
| 6 | NSS | EVAPORATOR (see 184A8) | 1 | |
| 7 | NSS | HEATER (see 206H8) | 1 | |
| 8 | 41-7513 | SENSOR - temperature (connector incl.) | 2 | |
| 9 | 55-9992 | BUSHING - cable | 2 | |
| 55-9998 | LOCKNUT | 1 | ||
| 10 | 41-3917 | SWITCH - limit | 2 | |
| 55-9566 | SCREW - limit switch | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 11 | 55-9555 | BUSHING - cable | 2 | |
| 12 | 44-5350 | BOARD - term | 1 | |
| 55-7696 | SCREW - board term | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7866 | NUT - captive | 2 | ||
| 13 | 41-6880 | CABLE - fresh air damper | 1 | |
| 14 | 41-6027 | WIRE - grounding (outlet) | 1 | |
| 15 | 41-6004 | HARNESS - heater connection | 1 | |
| 16 | 41-6020 | CABLE - limit switch (left) | 1 | |
| 17 | 41-6021 | CABLE - limit switch (right) | 1 | |
| 18 | 41-6003 | HARNESS - low voltage control (outlet) | 1 | |
| 19 | 41-6025 | HARNESS - power compressor | 1 | |
| 20 | 41-6984 | HARNESS - power fans | 1 | |
| 21 | 41-6985 | HARNESS - power heater | 1 | |
| 22 | 41-6024 | CABLE - temperature sensor (DAS) | 1 | |
| 23 | 41-6023 | CABLE - temperature sensor (FAS) | 1 | |
| 24 | 41-6022 | CABLE - temperature sensor (RAS) | 1 |
