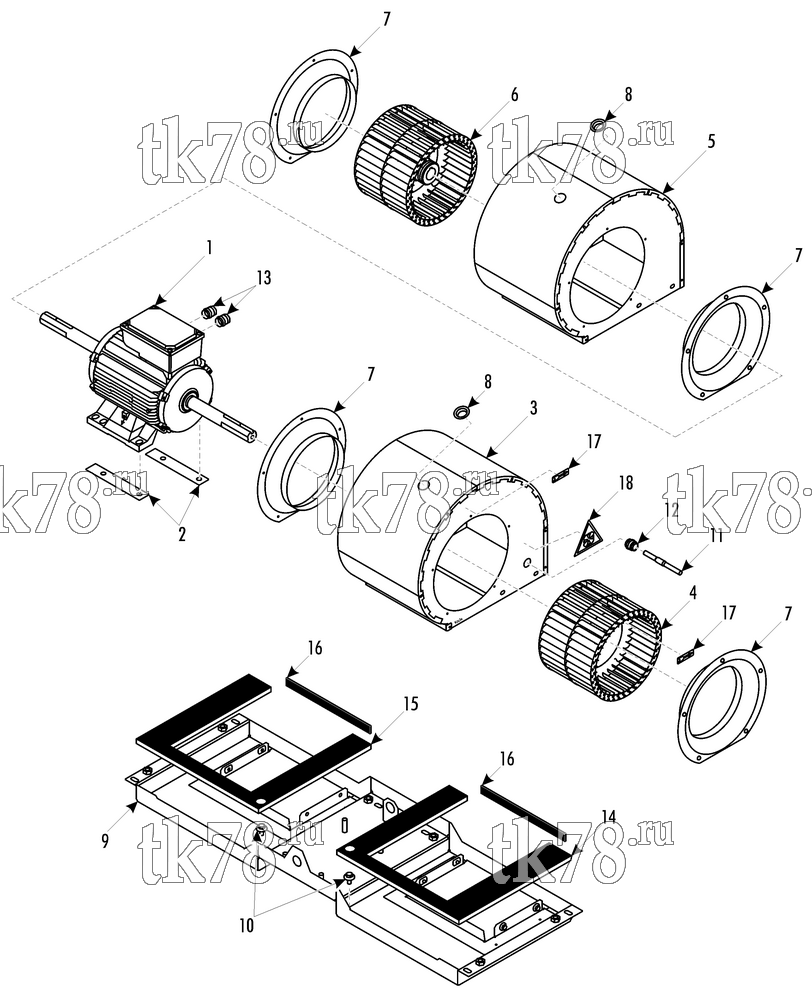

Установкa Thermo King LRV-10T W1 схема EVAPORATOR BLOWER GROUP – 252C4
Обновление от: 4/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-729 | MOTOR - evaporator blower | 1 | |
| 51-1542 | KEY - motor | 1 | ||
| 55-7348 | NUT - motor | 4 | ||
| 55-7347 | LOCKWASHER - motor | 4 | ||
| 55-7357 | FLATWASHER - motor | 4 | ||
| 2 | 92-4980 | PLATE - motor | 2 | |
| 3 | 78-1792 | HOUSING - blower (ccw) | 1 | |
| 4 | 78-1785 | WHEEL - blower (ccw) | 1 | |
| 5 | 78-1793 | HOUSING - blower (cw) | 1 | |
| 6 | 78-1786 | WHEEL - blower (cw) | 1 | |
| 7 | 92-9013 | RING - inlet | 4 | |
| 55-7067 | SCREW - ring | 20 | ||
| 55-7752 | SCREW - housing to blower base | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 8 | 55-6010 | PLUG - housing | 2 | |
| 9 | 92-9014 | BASE - blower | 1 | |
| 55-7825 | NUT - blower base to frame | 6 | ||
| 55-7342 | LOCKWASHER | 8 | ||
| 51-953 | FLATWASHER | 8 | ||
| 10 | 55-7341 | SCREW - mounting | 2 | |
| 11 | 41-7513 | SENSOR - temperature | 1 | |
| 12 | 55-9992 | BUSHING - cable | 1 | |
| 55-9998 | LOCKNUT - bushing | 1 | ||
| 13 | 55-9555 | BUSHING - cable | 2 | |
| 14 | 92-9015 | INSULATION | 1 | |
| 15 | 92-9016 | INSULATION | 1 | |
| 16 | 99-7336 | STRIP - neoprene | A/R | |
| 17 | 99-4931 | NAMEPLATE - arrow | 4 | |
| 18 | 99-9234 | NAMEPLATE - Caution, Fan | 2 |
