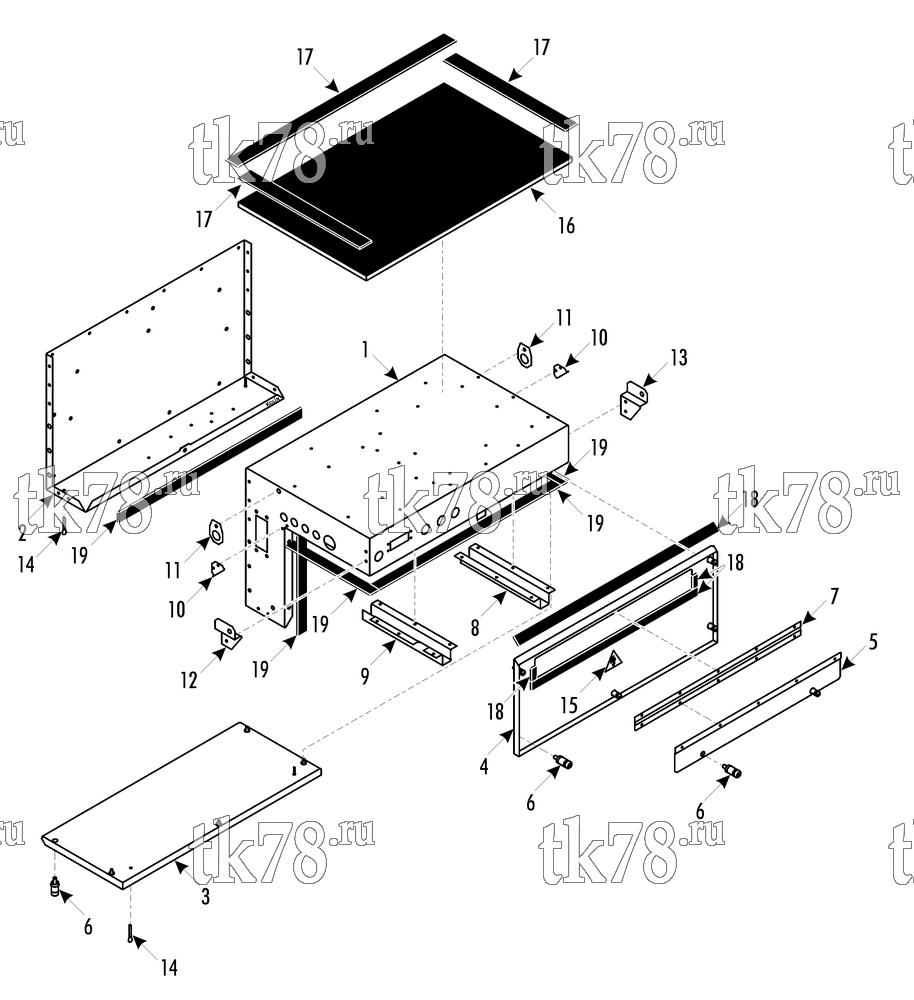

Установкa Thermo King LRV-10T TZV схема ELECTRO BOX PANEL – 252C0
Обновление от: 4/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7312 | PANEL - basic | 1 | |
| 2 | 92-9018 | PANEL - back | 1 | |
| 55-6994 | SCREW - panels | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 55-3101 | RIVET - panels | 16 | ||
| 3 | 92-2034 | PANEL - bottom | 1 | |
| 4 | 92-2236 | PANEL - front | 1 | |
| 5 | 92-1979 | DOOR - access | 1 | |
| 6 | 55-9758 | SCREW - panels & door (captive) | 12 | |
| 55-8375 | NUT - captive | 12 | ||
| 7 | 92-1980 | HINGE - access door | 1 | |
| 55-5130 | RIVET - hinge | 10 | ||
| 55-7697 | FLATWASHER | 10 | ||
| 8 | 92-1413 | BRACKET - controller | 1 | |
| 9 | 92-1414 | BRACKET - controller | 1 | |
| 51-2030 | RIVET - controller brackets | 12 | ||
| 10 | 92-1420 | MOLDING | 2 | |
| 51-2030 | RIVET - molding | 4 | ||
| 11 | 92-1977 | LIFTER | 2 | |
| 55-6994 | SCREW - lifter | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-7373 | NUT - captive | 2 | ||
| 12 | 92-775 | BRACKET | 1 | |
| 13 | 92-776 | BRACKET | 1 | |
| 55-3101 | RIVET - bracket | 4 | ||
| 55-7373 | NUT - captive | 2 | ||
| 14 | 55-3458 | PIN - cotter | 4 | |
| 15 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 | |
| 16 | 92-2237 | INSULATION - top | 1 | |
| 17 | 33-2420 | STRIP - neoprene | A/R | |
| 18 | 33-2668 | STRIP - neoprene | A/R | |
| 19 | 99-6968 | STRIP - neoprene | A/R |
