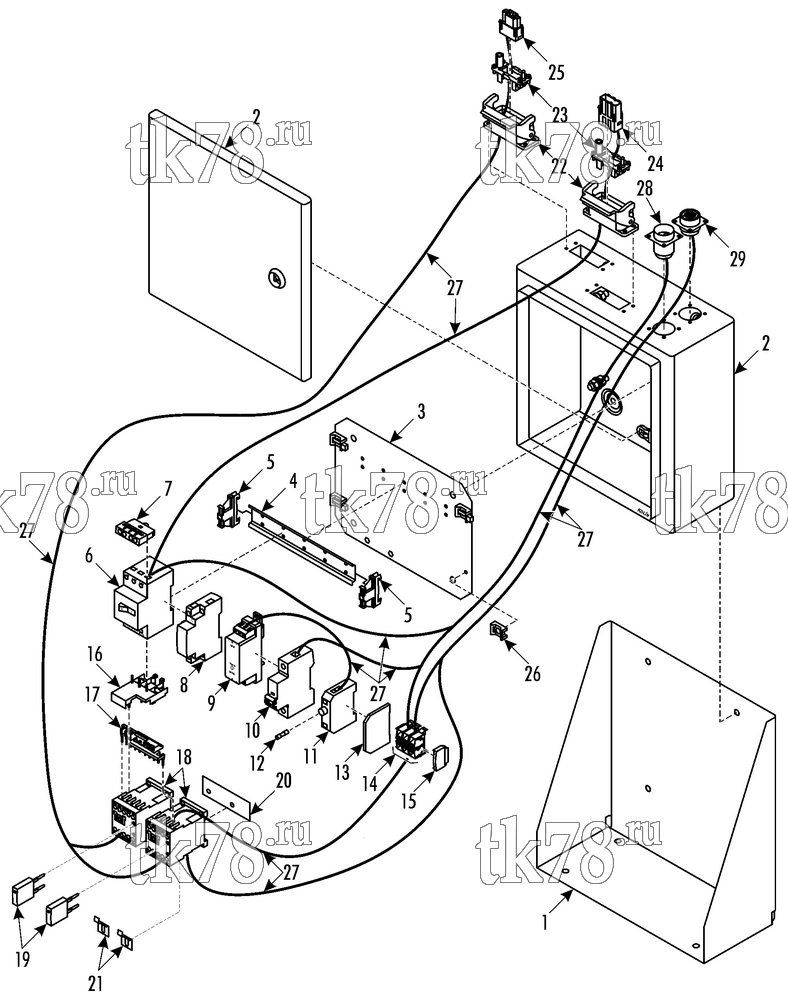

Установкa Thermo King LRV-10T TTC схема CONTROL BOX (FRONT BOX) – 218G9
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6185 | BRACKET - control box | 1 | |
| 55-6994 | SCREW - bracket to vehicle | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 2 | 92-6186 | BOX - rework | 1 | |
| 55-7172 | SCREW - box | 4 | ||
| 51-871 | WASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7354 | NUT | 4 | ||
| 3 | 92-6187 | PANEL - mounting | 1 | |
| 4 | 92-643 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 10 | ||
| 5 | 91-6465 | CLAMP - contactors | 2 | |
| 6 | 41-7718 | BREAKER - circuit (12.0 amp) | 1 | |
| 7 | 41-5266 | BLOCK - contact, auxiliary | 1 | |
| 8 | 41-3811 | RELAY - shunt release | 1 | |
| 9 | 41-5727 | ARRESTERS - overvoltage | 1 | |
| 10 | 41-7719 | BREAKER - circuit (16.0 amp) | 1 | |
| 11 | 41-3505 | HOLDER - fuse | 1 | |
| 12 | 41-5863 | FUSE (5 amp) | 1 | |
| 13 | 92-2402 | PLATE - end and intermediate | 1 | |
| 14 | 41-7720 | TERMINAL - wago, double | 3 | |
| 15 | 41-3894 | PLATE - end, wago | 1 | |
| 16 | 41-3807 | ELEMENT - coupling | 1 | |
| 17 | 41-5604 | LINK KIT - assy | 1 | |
| 18 | 41-3802 | CONTACTOR (3 kW) | 2 | |
| 19 | 41-3812 | MODULE - suppressor | 2 | |
| 20 | 92-6188 | UNDERLAY - contactor | 1 | |
| 21 | 92-3616 | BRACKET | 2 | |
| 55-7409 | SCREW - bracket | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 51-190 | NUT - captive | 2 | ||
| 22 | 41-7721 | HOOD - male | 2 | |
| 55-7863 | SCREW - hoods & receptacles | 16 | ||
| 55-7750 | LOCKWASHER | 16 | ||
| 55-7749 | NUT | 16 | ||
| 23 | 41-5928 | FRAME - fixing | 2 | |
| 24 | 41-5505 | CONNECTOR - male | 1 | |
| 25 | 41-7028 | CONNECTOR - female | 1 | |
| 26 | 99-3281 | MOUNT - bandwrap | 4 | |
| 55-5130 | RIVET - mount | 4 | ||
| 55-2330 | BANDWRAP | 4 | ||
| 27 | 40-1044 | WIRES - inside | 1 | |
| 28 | 44-8331 | RECEPTACLE | 1 | |
| 29 | 44-8783 | RECEPTACLE | 1 |
