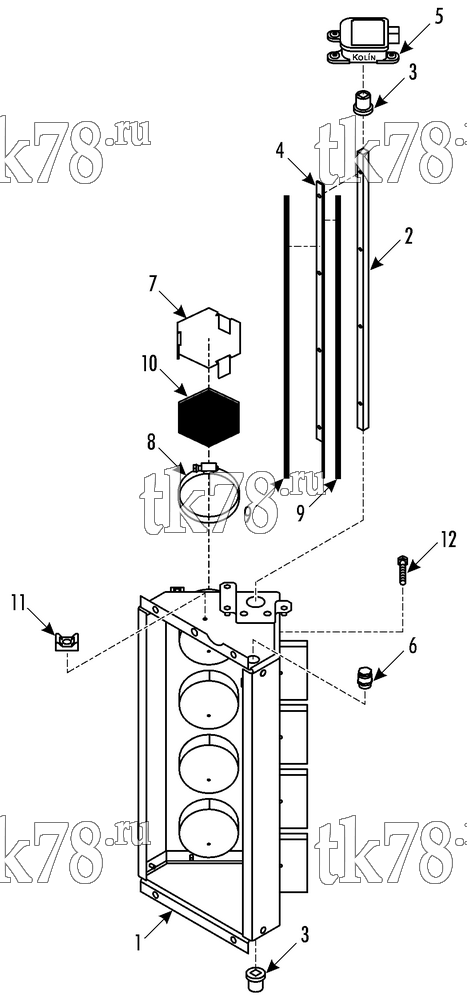

Установкa Thermo King LRV-10T TTC схема SHUTTER (FRONT BOX) – 218G7
Обновление от: 12/15/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6177 | FRAME - shutter | 1 | |
| 55-9866 | NUT - captive (M4) | 3 | ||
| 51-290 | NUT - captive (M6) | 2 | ||
| 55-5130 | RIVET | 14 | ||
| 55-7172 | SCREW - frame | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 2 | 92-6178 | BAR - shutter | 1 | |
| 3 | 92-6179 | CONJUCTION - shutter | 2 | |
| 4 | 92-6180 | SHUTTER | 1 | |
| 55-7862 | SCREW - shutter to bar | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 5 | 41-2755 | SERVOMOTOR | 1 | |
| 55-7664 | SCREW - servomotor | 3 | ||
| 55-7369 | LOCKWASHER | 3 | ||
| 6 | 51-711 | BUSHING - cable | 1 | |
| 51-712 | LOCKNUT - bushing | 1 | ||
| 7 | 92-6181 | BLINDER | 1 | |
| 8 | 55-2688 | CLAMP - blinder | 1 | |
| 9 | 92-6182 | INSULATION - shutter | 2 | |
| 10 | 92-6183 | INSULATION - blinder | 1 | |
| 11 | 99-3281 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 55-2330 | BANDWRAP | 2 | ||
| 12 | 55-8316 | SCREW - electro part | 2 | |
| 55-7170 | LOCKWASHER | 2 |
