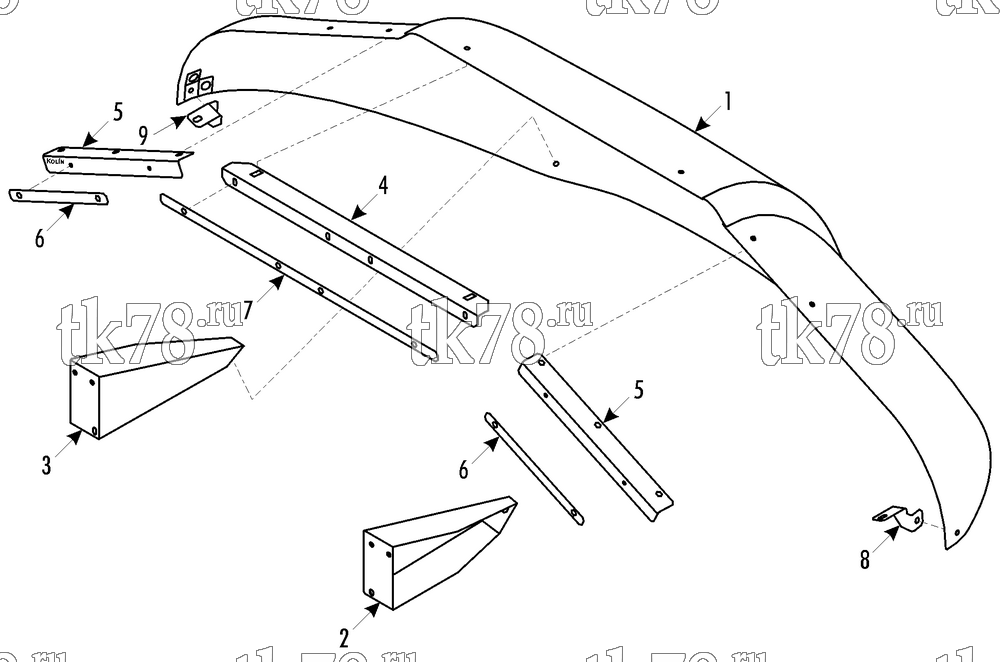

Установкa Thermo King LRV-10T TTC схема ENDCAP BACK – 218F8
Обновление от: 12/15/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6248 | ENDCAP | 1 | |
| 55-6994 | SCREW - endcap to bracket | 2 | ||
| 55-5970 | WASHER | 2 | ||
| 55-9553 | NUT - captive | 2 | ||
| 2 | 92-2026 | BRACKET - endcap | 1 | |
| 3 | 92-2027 | BRACKET - endcap | 1 | |
| 55-6994 | SCREW - bracket to unit | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-9553 | NUT - captive | 6 | ||
| 4 | 92-2869 | HOLDER - endcap | 1 | |
| 55-9368 | SCREW - endcap to holder | 2 | ||
| 55-5970 | WASHER | 2 | ||
| 55-6997 | NUT - captive | 2 | ||
| 5 | 92-2868 | HOLDER - endcap | 2 | |
| 55-9368 | SCREW - endcap to holder | 4 | ||
| 55-5970 | WASHER | 4 | ||
| 55-9553 | NUT - captive | 4 | ||
| 55-6994 | SCREW - holder to unit | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9553 | NUT - captive | 8 | ||
| 6 | 92-2870 | PLATE - nut | 2 | |
| 7 | 92-2871 | PLATE - nut | 1 | |
| 8 | 92-1995 | CLIP - endcap | 1 | |
| 9 | 92-1996 | CLIP - endcap | 1 | |
| 55-8837 | SCREW - endcap to clip | 2 | ||
| 51-871 | WASHER | 2 | ||
| 55-9553 | NUT - captive | 2 | ||
| 55-6994 | SCREW - clip to unit | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 |
