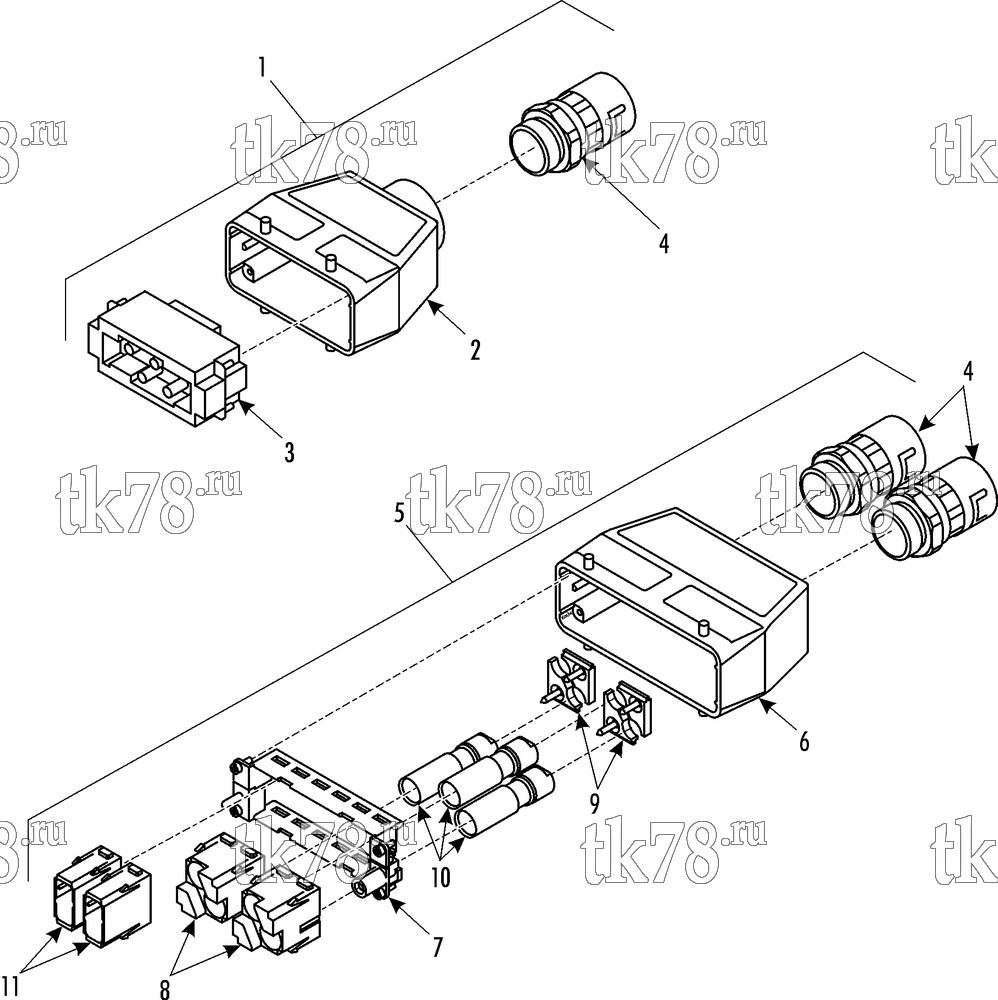

Установкa Thermo King LRV-10T H схема POWER & COMMUNICATION CONNECTOR KIT – 184B9
Обновление от: 12/5/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5288 | CONNECTOR - power | 1 | |
| 2 | 41-5289 | HOUSING - connector | 1 | |
| 3 | 41-5142 | SCREW - terminal | 1 | |
| 4 | 51-109 | BUSHING - cable | 3 | |
| 51-354 | WASHER - sealing | 3 | ||
| 5 | 41-5290 | CONNECTOR - communication | 1 | |
| 6 | 41-5291 | HOUSING - connector | 1 | |
| 7 | 41-5296 | FRAME - fixing | 1 | |
| 8 | 41-5297 | CONNECTOR - cover | 2 | |
| 9 | 41-5298 | BRACKET - contact | 4 | |
| 10 | 41-5299 | CONTACT | 3 | |
| 11 | 41-5300 | CONNECTOR - cover | 2 |
