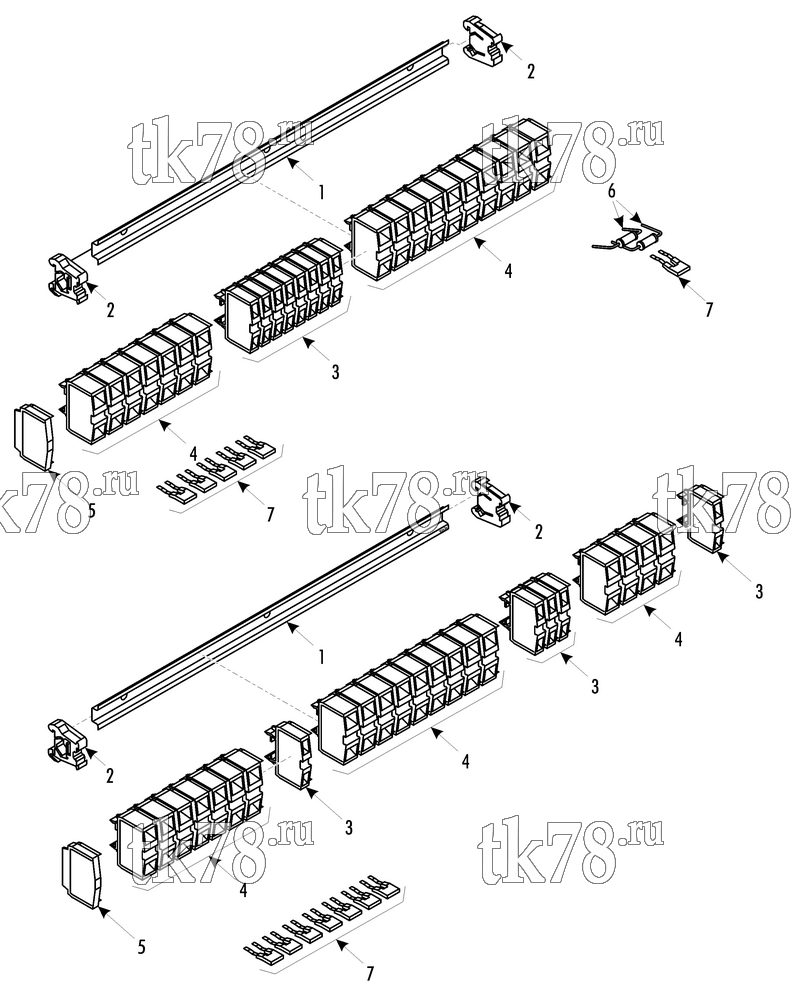

Установкa Thermo King LRV-10T BOS схема TERMINAL BLOCK – 229B8
Обновление от: 9/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-1419 | RAIL - din | 2 | |
| 55-5130 | RIVET - rail | 6 | ||
| 2 | 41-3895 | ELEMENT - end fixative | 4 | |
| 3 | 41-3892 | TERMINAL - single | 13 | |
| 4 | 41-3893 | TERMINAL - double | 37 | |
| 5 | 41-3894 | TERMINAL - end | 2 | |
| 6 | 41-5935 | RESISTOR - pull-up | 2 | |
| 7 | 41-3896 | JUMPER | 13 |
