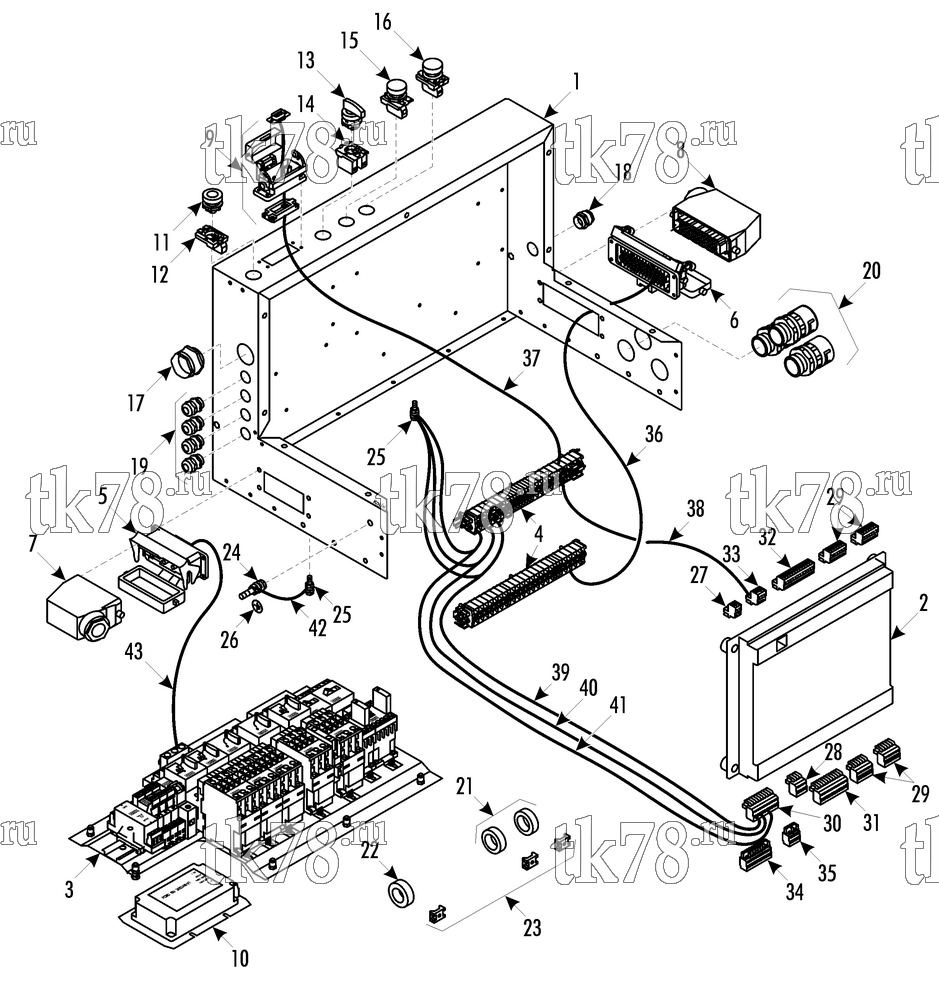

Установкa Thermo King LRV-10T BOS схема ELECTRO BOX – 229B5
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - electro box (see 229B6) | 1 | |
| 2 | 45-1933 | CONTROLLER | 1 | |
| 55-9566 | SCREW - controller | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 3 | NSS | PANEL - contactors (see 229B7) | 1 | |
| 4 | NSS | TERMINAL BLOCK - terminal (see 229B8) | 1 | |
| 5 | 304-2887 | CONNECTOR - assy | 1 | |
| 41-5141 | HOUSING - connector | 1 | ||
| 41-5142 | TERMINAL (4-pin) | 1 | ||
| 6 | 41-7716 | CONNECTOR - assy | 1 | |
| 41-5933 | HOOD - connector | 1 | ||
| 41-7519 | INSERT (male) | 1 | ||
| 55-7664 | SCREW - connectors | 8 | ||
| 55-7369 | LOCKWASHER | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-7866 | NUT - captive | 8 | ||
| 7 | 41-3915 | CONNECTOR - assy | 1 | |
| 41-5444 | HOOD - connector | 1 | ||
| 41-5446 | CABLE - sealing | 1 | ||
| 41-5144 | TERMINAL (4-pin) | 1 | ||
| 41-5527 | PIN | 3 | ||
| 8 | 41-6008 | HOUSING - connector | 1 | |
| 41-7561 | INSERT (female) | 1 | ||
| 41-5446 | CABLE - sealing | 1 | ||
| 41-5552 | PIN | 11 | ||
| 9 | 41-3899 | CONNECTOR - assy | 1 | |
| 41-5028 | HOUSING - connector | 1 | ||
| 92-2467 | ADAPTER | 1 | ||
| 55-7863 | SCREW - connector | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-7749 | NUT | 4 | ||
| 10 | 42-241 | CONVERTER | 1 | |
| 55-7664 | SCREW - converter | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 11 | 41-4686 | HEAD - control | 1 | |
| 12 | 41-4688 | SWITCH - assembly | 1 | |
| 13 | 41-4687 | HEAD - control | 1 | |
| 14 | 41-4689 | SWITCH - assembly | 1 | |
| 15 | 41-4690 | LIGHT - signal, red | 1 | |
| 16 | 41-4691 | LIGHT - signal, green | 1 | |
| 17 | 55-9996 | BUSHING - cable | 1 | |
| 51-558 | WASHER - sealing | 1 | ||
| 51-101 | LOCKNUT | 1 | ||
| 18 | 55-9992 | BUSHING - cable | 1 | |
| 51-355 | WASHER - sealing | 1 | ||
| 55-9993 | LOCKNUT | 1 | ||
| 19 | 51-848 | BUSHING - cable | 4 | |
| 51-843 | WASHER - sealing | 4 | ||
| 51-849 | LOCKNUT | 4 | ||
| 20 | 51-559 | BUSHING - cable | 3 | |
| 51-558 | WASHER - sealing | 3 | ||
| 51-101 | LOCKNUT | 3 | ||
| 21 | 304-2593 | TRANSFORMER - current | 2 | |
| 22 | 304-2594 | TRANSFORMER - current | 1 | |
| 23 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 56-2330 | BANDWRAP | A/R | ||
| 24 | 55-8137 | SCREW - ground | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 25 | 55-7035 | SCREW - ground | 2 | |
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 26 | 92-783 | LABEL - ground | 1 | |
| 27 | 41-3928 | CONNECTOR | 1 | |
| 28 | 41-3929 | CONNECTOR | 1 | |
| 29 | 41-3930 | CONNECTOR | 4 | |
| 30 | 41-3931 | CONNECTOR | 1 | |
| 31 | 41-3932 | CONNECTOR | 1 | |
| 32 | 41-3933 | CONNECTOR | 1 | |
| 33 | 41-3934 | CONNECTOR | 1 | |
| 34 | 41-3822 | CONNECTOR (10-pin) | 2 | |
| 35 | 41-3935 | CONNECTOR (4-pin) | 1 | |
| 36 | 41-7154 | CABLE (RS232, 01) | 1 | |
| 37 | 41-6010 | CABLE - RS232(02) | 1 | |
| 38 | 41-6011 | CABLE - RS232(03) | 1 | |
| 39 | 41-6013 | CABLE - temperature sensor (return air) | 1 | |
| 40 | 41-6014 | CABLE - temperature sensor (fresh air) | 1 | |
| 41 | 41-6015 | CABLE - temperature sensor (duct air) | 1 | |
| 42 | 41-6016 | WIRE - grounding | 1 | |
| 43 | 41-7717 | WIRES - power | 1 | |
| 41-8113 | BLOCK - terminal | 1 |
