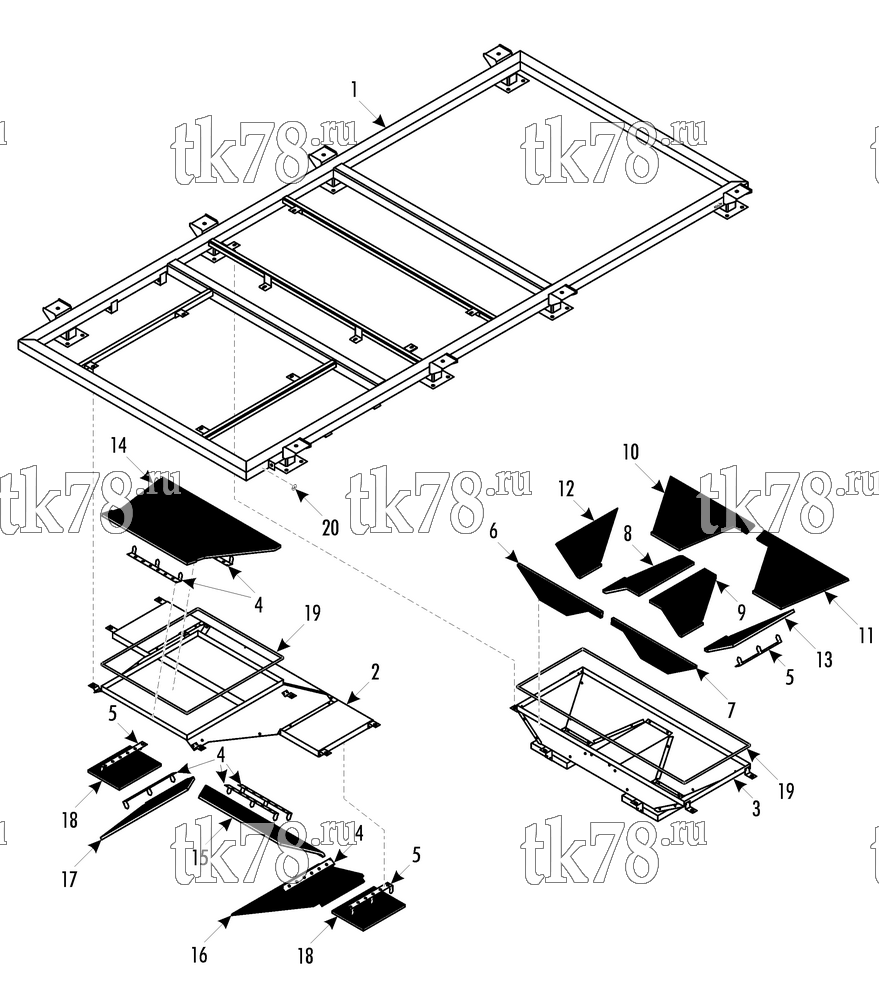

Установкa Thermo King LRV-10T BOS схема HELPING FRAME – 229B0
Обновление от: 9/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8050 | FRAME - helping | 1 | |
| 55-7730 | SCREW - frame | 32 | ||
| 55-7360 | FLATWASHER | 32 | ||
| 55-7413 | LOCKWASHER | 32 | ||
| 55-5025 | NUT | 32 | ||
| 2 | 98-8051 | CHANNEL - return air | 1 | |
| 55-6993 | SCREW - channel | 8 | ||
| 55-8249 | FLATWASHER | 16 | ||
| 55-7342 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 3 | 98-8052 | CHANNEL - supply air | 1 | |
| 55-6993 | SCREW - channel | 6 | ||
| 55-8249 | FLATWASHER | 12 | ||
| 55-7342 | LOCKWASHER | 6 | ||
| 55-7825 | NUT | 6 | ||
| 4 | 33-3576 | BRACKET - insulation | 6 | |
| 5 | 92-3375 | BRACKET - insulation | 10 | |
| 6 | 92-7038 | INSULATION | 1 | |
| 7 | 92-7039 | INSULATION | 1 | |
| 8 | 92-7040 | INSULATION | 1 | |
| 9 | 92-7041 | INSULATION | 1 | |
| 10 | 92-7042 | INSULATION | 1 | |
| 11 | 92-7043 | INSULATION | 1 | |
| 12 | 92-7044 | INSULATION | 1 | |
| 13 | 92-7045 | INSULATION | 1 | |
| 14 | 92-7046 | INSULATION | 1 | |
| 15 | 92-7047 | INSULATION | 1 | |
| 16 | 92-7048 | INSULATION | 1 | |
| 17 | 92-7049 | INSULATION | 1 | |
| 18 | 92-7050 | INSULATION | 2 | |
| 19 | 92-3279 | RUBBER - extrusion | A/R | |
| 20 | 92-783 | LABEL - ground | 1 |
