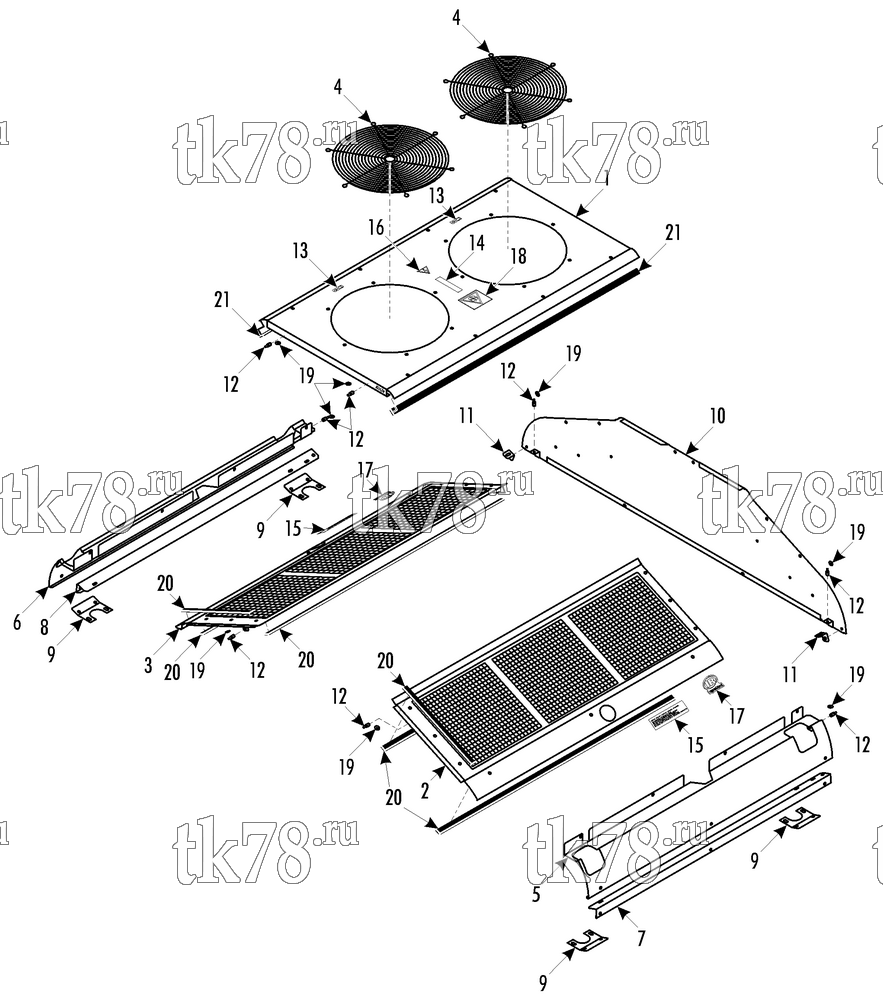

Установкa Thermo King LRV-10T BOS схема CONDENSER COVERS – 218C9
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7712 | COVER - center | 1 | |
| 2 | 98-7713 | COVER - side | 1 | |
| 3 | 98-7714 | COVER - side | 1 | |
| 55-9368 | SCREW - covers | 26 | ||
| 51-871 | WASHER - sealing | 26 | ||
| 4 | 309-3224 | GRILLE - fan | 2 | |
| 55-9368 | SCREW - grille | 12 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-9553 | NUT - captive | 12 | ||
| 5 | 98-7715 | COVER - bottom | 1 | |
| 6 | 98-7716 | COVER - bottom | 1 | |
| 55-9368 | SCREW - covers | 6 | ||
| 55-5970 | WASHER - sealing | 6 | ||
| 55-8835 | NUT - captive | 6 | ||
| 7 | 92-2021 | BRACKET - lock, back | 1 | |
| 8 | 92-2022 | BRACKET - lock, back | 1 | |
| 55-6994 | SCREW - bracket | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 55-9553 | NUT - captive | 6 | ||
| 9 | 92-5765 | BRACKET - cover | 4 | |
| 10 | 98-7717 | COVER - face | 1 | |
| 55-9368 | SCREW - cover | 12 | ||
| 51-871 | WASHER - sealing | 12 | ||
| 55-9553 | NUT - captive | 8 | ||
| 11 | 92-1955 | CLIP - face cover | 2 | |
| 55-7172 | SCREW - clip | 2 | ||
| 55-6996 | LOCKWASHER | 2 | ||
| 55-8893 | FLATWASHER | 2 | ||
| 55-8835 | NUT - captive | 2 | ||
| 12 | 55-7035 | SCREW - ground | 8 | |
| 55-7075 | FLATWASHER | 16 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7354 | NUT | 8 | ||
| 13 | 99-4931 | NAMEPLATE - arrow | 2 | |
| 14 | 309-3064 | NAMEPLATE - No Step | 1 | |
| 15 | 92-2823 | NAMEPLATE - Lifting | 2 | |
| 16 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 | |
| 17 | 92-1773 | NAMEPLATE - IR logo | 2 | |
| 18 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 19 | 92-783 | LABEL - ground | 8 | |
| 20 | 92-2302 | STRIP - neoprene | A/R | |
| 21 | 99-5966 | STRIP - neoprene | A/R |
