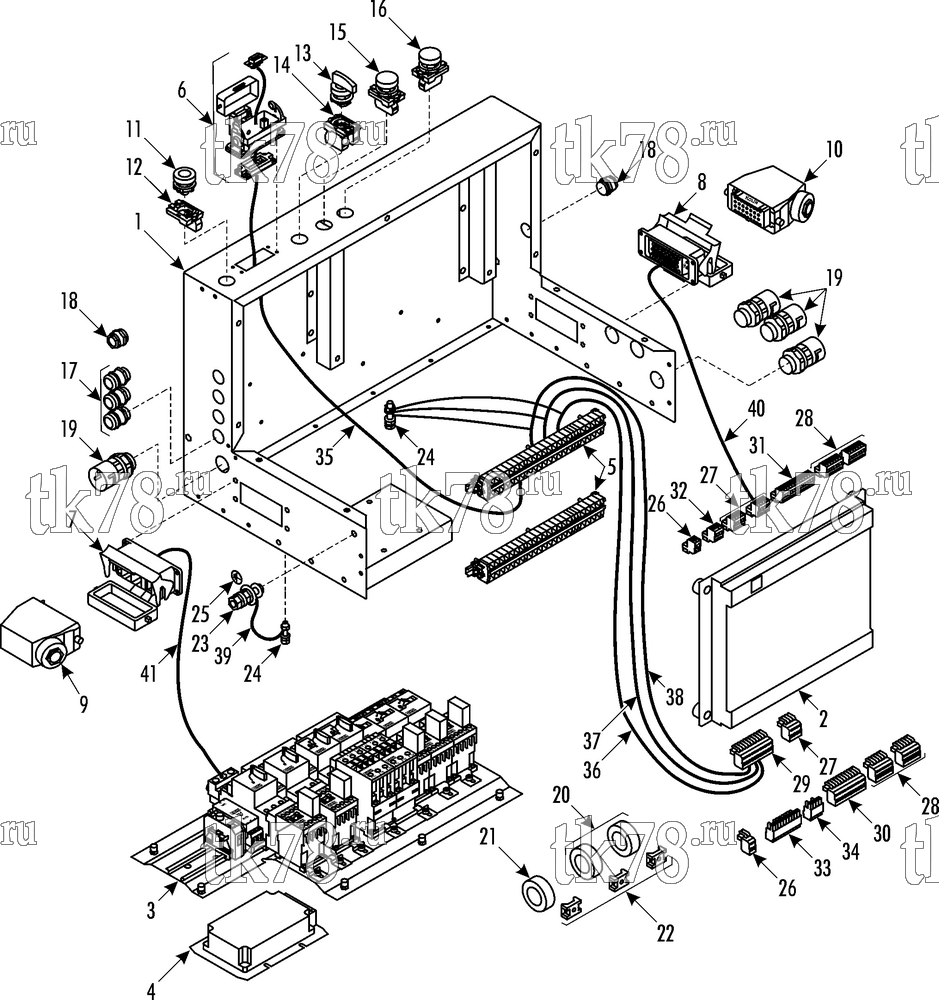

Установкa Thermo King LRV-10T BLQ схема CONTROL BOX – 190G6
Обновление от: 3/31/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANELS - control box (see 190G7) | 1 | |
| 2 | 45-1933 | CONTROLLER - unit | 1 | |
| 55-7700 | SCREW - controller | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-9564 | NUT - captive | 4 | ||
| 3 | NSS | PANEL - contactors & circuit breakers (see 190G8) | 1 | |
| 4 | 41-5876 | CONVERTER - DC/DC | 1 | |
| 55-7663 | SCREW - converter | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-9866 | NUT - captive | 4 | ||
| 5 | NSS | BLOCK - terminal (see 174D5) | 1 | |
| NSS | BLOCK - terminal (see 174D5) | 1 | ||
| 6 | 41-3899 | CONNECTOR - assembly | 1 | |
| 41-5028 | HOUSING - connector | 1 | ||
| 92-2467 | PLATE - adapter | 1 | ||
| 41-4862 | CONNECTOR (d-sub 9) | 1 | ||
| 55-7863 | SCREW - connector | 4 | ||
| 55-7830 | FLATWASHER | 4 | ||
| 55-9057 | LOCKWASHER | 4 | ||
| 55-7749 | NUT | 4 | ||
| 7 | 41-3416 | CONNECTOR - assembly | 1 | |
| 41-5141 | HOUSING - connector | 1 | ||
| 41-5877 | FRAME - fixing | 1 | ||
| 41-4864 | TERMINAL - crimp | 1 | ||
| 41-4866 | TERMINAL - crimp | 2 | ||
| 8 | 41-3898 | CONNECTOR - assembly | 1 | |
| 41-5141 | HOUSING - connector | 1 | ||
| 41-4288 | CORE - 32-pin male | 1 | ||
| 55-7664 | SCREW - connector | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 55-9564 | NUT - captive | 8 | ||
| 9 | 41-5444 | HOOD | 1 | |
| 41-5446 | SEALING - cable | 1 | ||
| 41-5347 | FRAME - fixing | 1 | ||
| 41-4864 | TERMINAL - crimp | 1 | ||
| 41-4865 | TERMINAL - crimp | 2 | ||
| 10 | 41-5878 | CONNECTOR - assembly | 1 | |
| 41-5143 | HOOD | 1 | ||
| 41-5445 | CORE - 32-pin female | 1 | ||
| 41-3007 | SEALING - cable | 1 | ||
| 11 | 41-4686 | HEAD - control | 1 | |
| 12 | 41-4688 | SWITCH - assembly | 1 | |
| 13 | 41-4687 | HEAD - control | 1 | |
| 14 | 41-4689 | SWITCH - assembly | 1 | |
| 15 | 41-4690 | LIGHT - signal (red) | 1 | |
| 16 | 41-4691 | LIGHT - signal (green) | 1 | |
| 17 | 55-9995 | BUSHING - cable | 3 | |
| 55-9993 | LOCKNUT - bushing | 3 | ||
| 18 | 55-9992 | BUSHING - cable | 2 | |
| 55-9998 | LOCKNUT - bushing | 2 | ||
| 19 | 55-9994 | BUSHING - cable | 4 | |
| 55-9999 | LOCKNUT - bushing | 4 | ||
| 20 | 304-2593 | TRANSFORMER - current | 2 | |
| 21 | 304-2594 | TRANSFORMER - current | 1 | |
| 22 | 99-3281 | MOUNT - bandwrap | A/R | |
| 55-5130 | RIVET - mount | A/R | ||
| 55-2330 | BANDWRAP | A/R | ||
| 23 | 305-1654 | SCREW - ground | 1 | |
| 55-7621 | LOCKWASHER - internal tooth | 3 | ||
| 55-8955 | FLATWASHER (brass) | 5 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 51-103 | NUT (brass) | 2 | ||
| 24 | 51-104 | SCREW - ground | 2 | |
| 55-7378 | LOCKWASHER - internal tooth | 2 | ||
| 51-106 | FLATWASHER (brass) | 4 | ||
| 51-105 | NUT (brass) | 4 | ||
| 25 | 92-783 | LABEL - ground | 1 | |
| 26 | 41-3928 | CONNECTOR - wago (2-pin) | 2 | |
| 27 | 41-3929 | CONNECTOR - wago (4-pin) | 3 | |
| 28 | 41-3930 | CONNECTOR - wago (6-pin) | 4 | |
| 29 | 41-3931 | CONNECTOR - wago (10-pin) | 1 | |
| 30 | 41-3932 | CONNECTOR - wago (11-pin) | 1 | |
| 31 | 41-3933 | CONNECTOR - wago (12-pin) | 1 | |
| 32 | 41-3934 | CONNECTOR - wago (3-pin) | 1 | |
| 33 | 41-3822 | CONNECTOR - 10-pin | 1 | |
| 34 | 41-3935 | CONNECTOR (4-pin) | 1 | |
| 35 | 41-5944 | HARNESS - communication | 1 | |
| 36 | 41-5945 | CABLE - return air temp sensor | 1 | |
| 37 | 41-5946 | CABLE - fresh air temp sensor | 1 | |
| 38 | 41-5947 | CABLE - duct air temp sensor | 1 | |
| 39 | 41-5948 | WIRE - grounding (electrobox) | 1 | |
| 40 | 41-5949 | WIRE - twist (assembly) | 1 | |
| 41 | 41-5950 | WIRE - power (assembly) | 1 |
